Automatic Adjustment Standing Seam Roof Curving Machine
Xiamen Xinhonghua Machinery Co., Ltd.- Transport Package：Standard Package for Export
- Specification：1500mm,800mm,2000mm
- Trademark：XHH
- Origin：Xiamen
Base Info
- Model NO.：YX65-300-600
- HS Code：84552290
- Production Capacity：10-15sets,Month
Description
Basic Info.
Model NO. YX65-300-600 HS Code 84552290 Production Capacity 10-15sets/MonthProduct Description
Basic Info
- Model NO.: YX65-300-600
- Power Source: Hydraulic Pressure
- Certification: SGS
- Customized: Customized
- Condition: New
- Weight: 1500kgs
- Usage: Standing Seam Roof Curving Machine
- Motor Power for Adjusted: 0.75kw
- Thickness: 0.6-1.0mm
- Min. Curved Radius for Aluminum: Convex Curved 2m,Concave Curved 6m
- Specification: SGS
- HS Code: 84552290
- Type: Hydraulic Machine
- Feature: Automation
- Warranty: 12 Months
- Advantage: Use Widely
- Dimension: 1500mm/800mm/2000mm
- Raw Material: Steel
- Motor Power: 4kw
- Forming Steps: 4
- Curving Speed: 10-16m/Min
- Trademark: XHH
- Origin: Xiamen, China
Main Technic Data:
Curving Standing Seam Roof Panels to Convex Curved and Concave Curved, S-shaped and Wave-shape;
| 1. | Size | 1500*850*2000mm |
| 2. | Weight | 1500KGS |
| 3. | Motor Power | 4KW |
| 4. | Motor Power for Adjusting Models | 0.75KW |
| 5. | Forming Steps | 4 Steps |
| 6. | Curved Thickness for Aluminum | 0.6-1.0mm |
| 7. | Curved Thickness for Steel | 0.6-0.8mm |
| 8. | Working Speed | 10-16m/min |
| 9. | Curved Radius for Aluminum | Convex Curved 2m,Concave Curved 6m |
| 10. | Curved Radius for Steel | Convex Curved 4m,Concave Curved 8m |

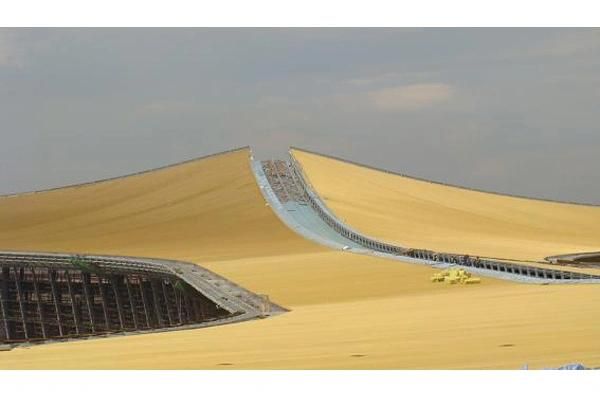

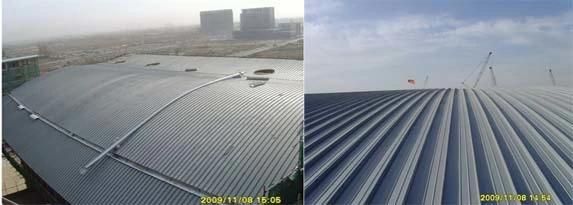

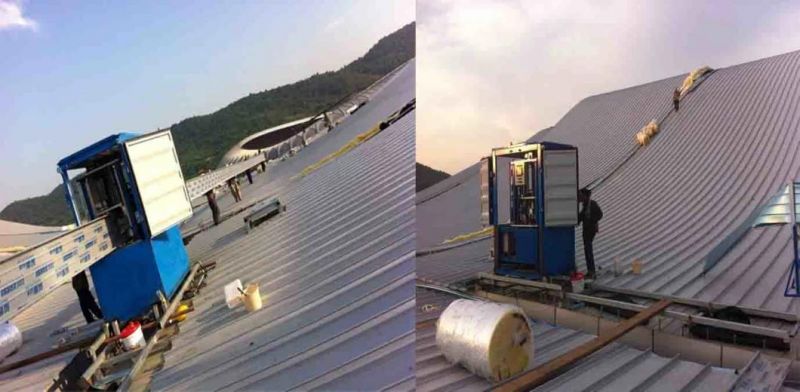

Project Picture:
