• Model NO.：JX
• Production Capacity：100sets,Year

Basic Info.

Model NO. JX Production Capacity 100sets/Year

Product Description

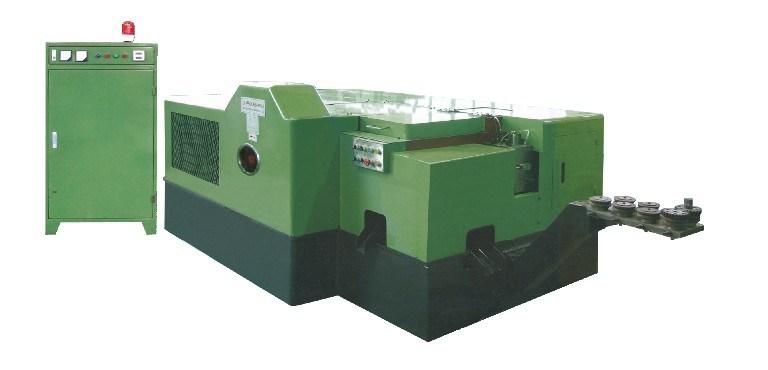

Nuts making machine, it can maily make the nuts, and different type nuts. It can finish the products in one time. So it is energy saving and high productivity and easy use.
Our machine in China can be say the leading machine. And best price.

Production items:

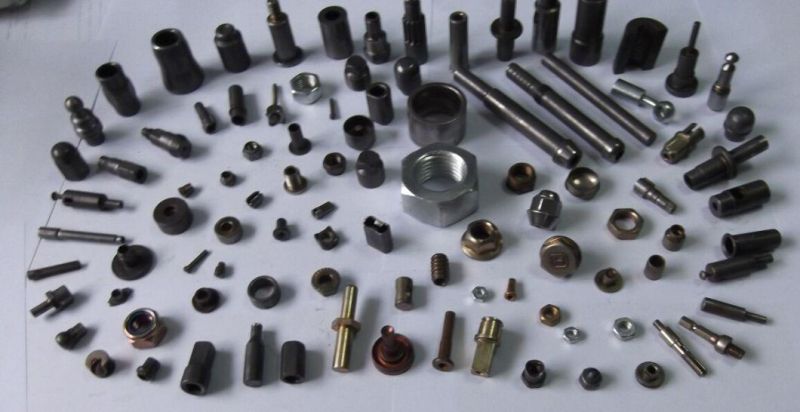

Extra thick nut, flanged nut, motorcycle link pin, oil plug screw, hex socket lockup nut, squire nut, weld nut, cap nut, blind nut, chain roller, expansion anchor, bicycle and motorcycle shaped spare parts, and so on.

We have exported these machines to India, and we have service center in India, so we can provide you the best after-sale service.

For anything of the machine, please feel free to contact me.


Hope to cooperate with you.

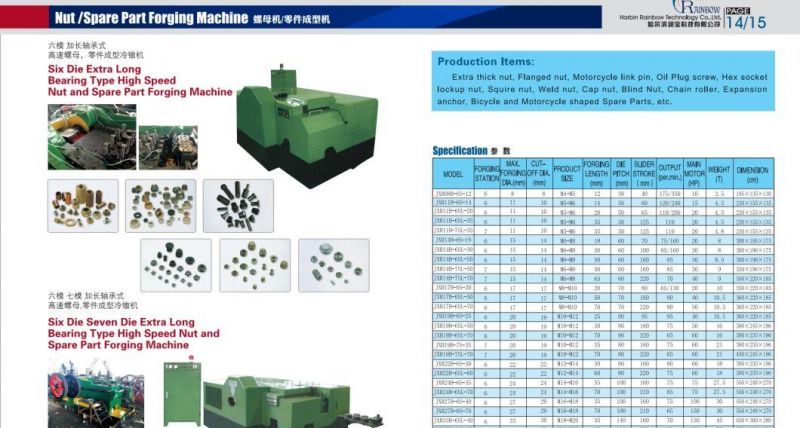

For the details of the machine, please check the form.

Model	JX11 B-6S	JX11 B-6S-L	JX14 B-6S	JX14 B-6S-L50	JX14B- 6S-T50	JX14B- 7S-L50	JX17B- 6S	JX17B- 6S-L50	JX19 B-6S	JX19B- 6SL-50	JX24B- 6SL-70
Forging Station	6	6	6	6	6	7	6	6	6	6	6
Max. forging Dia. (mm)	8-12	8-12	12-15	12-15	12-15	12-15	13-17	13-17	20	20	25
Max. cut off dia. (mm)	11	11	15	15	15	15	17	17	19	19	24
product dia.	M4-M6	M4-M6	M6-M8	M6-M8	M6-M8	M6-M8	M8-M10	M8-M10	M10-M12	M10-M12	M12-M16
Max. forging length (mm)	13	25	16	45	30	45	45	45	25	50	70
Die pitch (mm)	50	50	60	60	60	60	70	70	80	80	100
Main slide stroke (mm)	50	64	60	160	60	160	160	160	100	162	200
output (pcs/min)	120-240	120-240	85-170	70-100	70-100	70-100	85-165	70-100	100	85	85
main motor	15HP	15HP	20HP	40HP	40HP	40HP	40HP	40HP	40HP	50HP	74HP
appr. weight (kgs)	4000	4500	7500	8500	7500	9000	10000	10000	13000	15000	20000
