• Model NO.：90DA
• Net Weight：25kgs
• Gross Weight：29kgs
• Packaging Size：420*330*210mm
• Volume：0.03 Cbm
• Usage：for Food & Beverage machinery
• Transport Package：Box
• Specification：90DA
• Trademark：HONE PAN
• Origin：China
• HS Code：8483409000
• Production Capacity：20000 Sets , Year

Basic Info.

Model NO. 90DA Net Weight 25kgs Gross Weight 29kgs Packaging Size 420*330*210mm Volume 0.03 Cbm Usage for Food & Beverage machinery Transport Package Box Specification 90DA Trademark HONE PAN Origin China HS Code 8483409000 Production Capacity 20000 Sets / Year

Product Description

1.China Rotary Indexer DA Series  Features:
1) high precision.
2) good performance of high speed.
3) smooth running.
4) large transmission torque.
5) self-locking during positioning.
6) compact structure.
7) long service life.

2. Product Details:
As the increasing demand of modern industry for automation, high-speed, high precision of products, cam indexer has been widely used in many kinds of automation equipment. Cam indexer is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

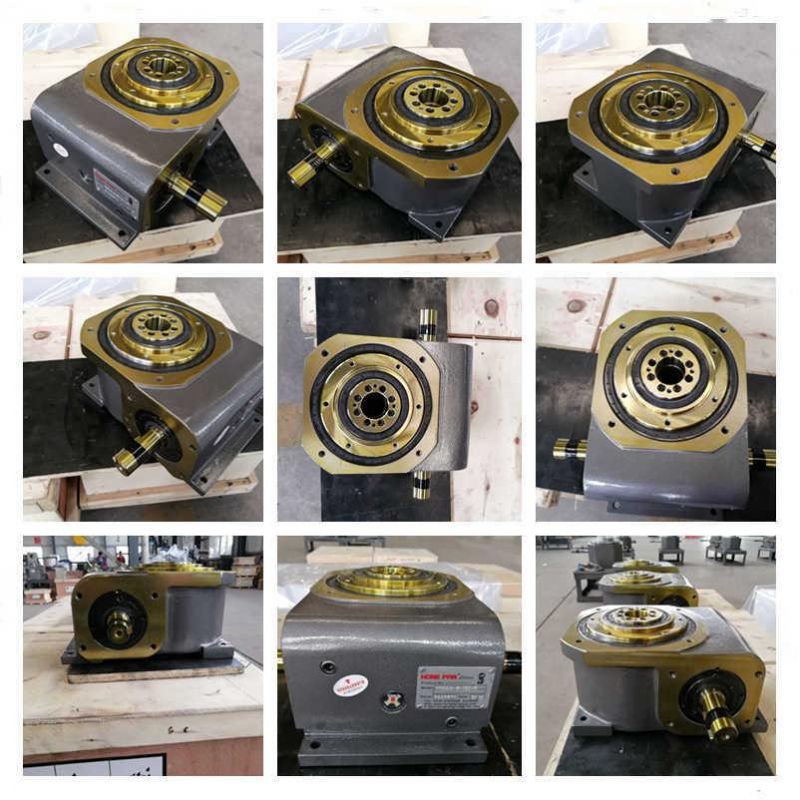

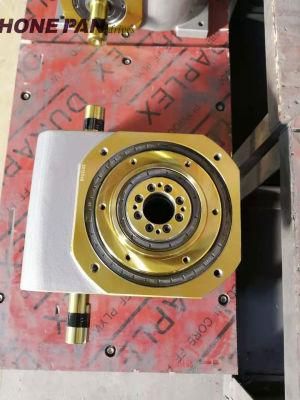

China Rotary Indexer DA Series introduction:
The appearance and properties of this model are the same as the plateform desktop model, just it becomes more compact and thinner, which meets the customer's requirements in the case of height restriction of operating place.

China Rotary Indexer DA Series: 90DA, 110DA, 150DA

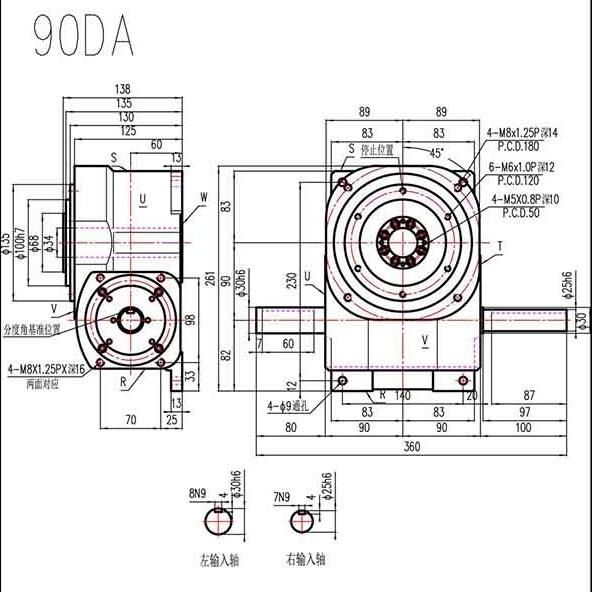

3.Specification of China Rotary Indexer DA Series 90DA:




Item	Symbol	Unit	Value
Output allowable radial load	C1	Kgf	480
Output allowable axial load	C2	kgf	195
Output allowable torque	Ts	Kgf-m	Refer to Torque Capacity Table
Input allowable radial load	C3	Kgf	250
Input maximum bending moment	C4	Kgf	250
Input maximum torque	C5	Kgf-m	22
GD2 of input shaft (note 1)	C6	Kgf-m2	2.5×10-5
Indexing accuracy		Sec.	±30
Weight		Kg	30

Note 1: GD2 of input shaft is a value in dwell range.
Note 2: Value of C1 to C5 are those obtained for safety factor=2.

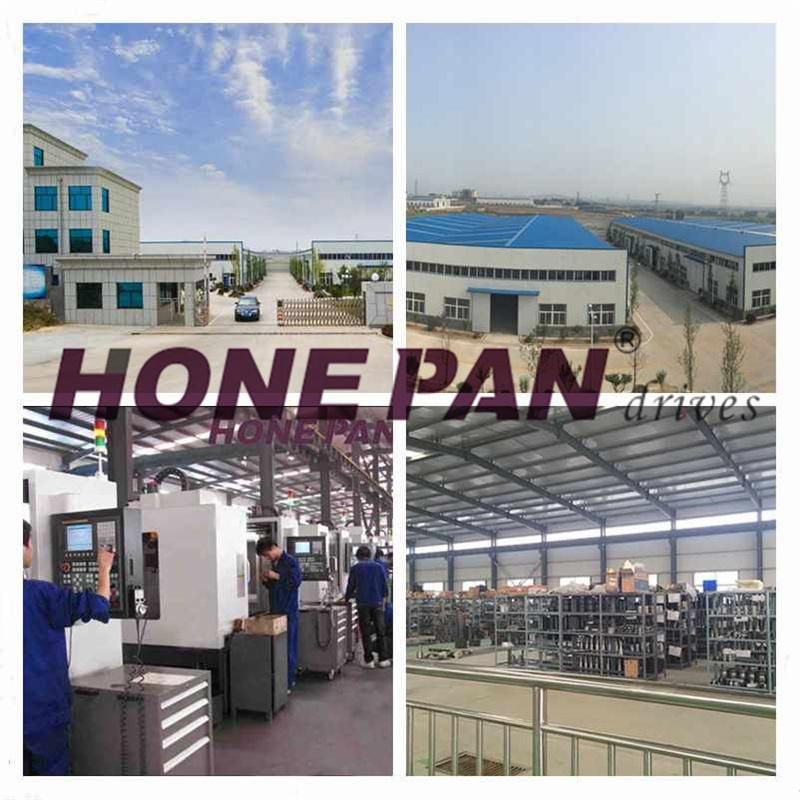

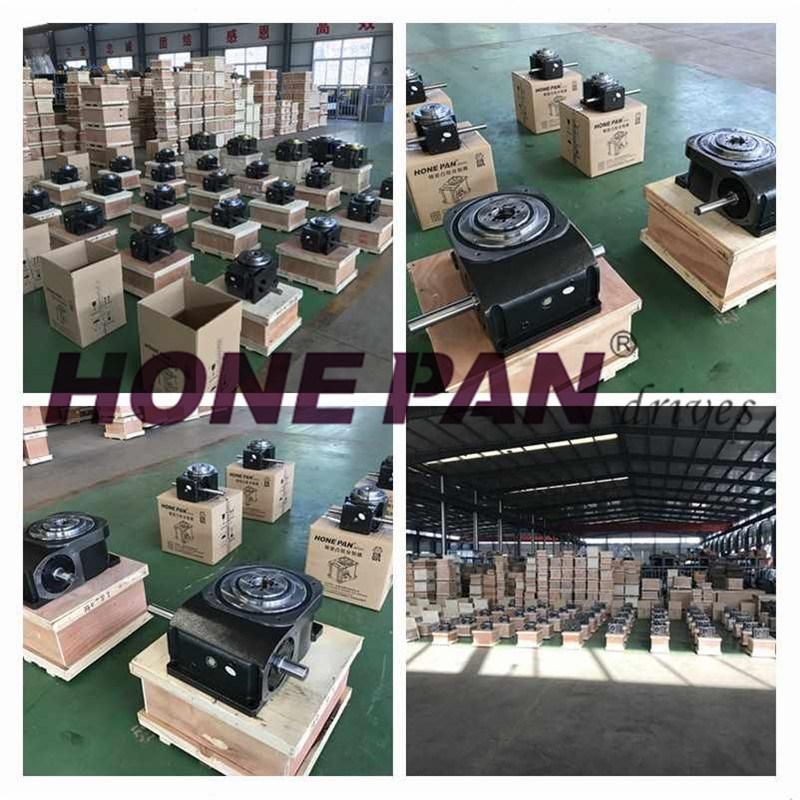

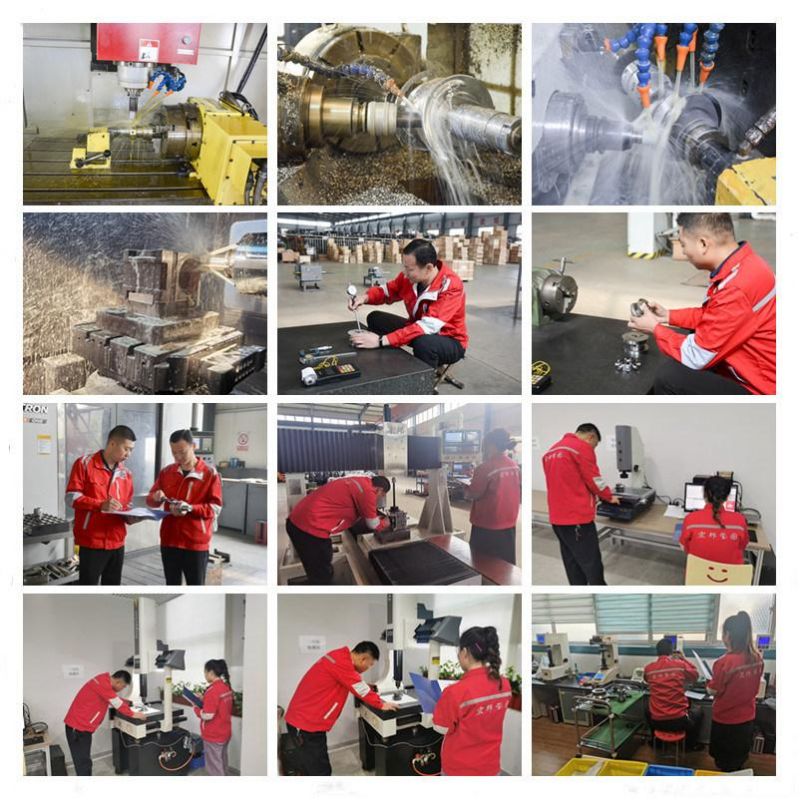

4. Company, Packaging & Shipment & Quality Control & Certificates



5. FAQ:

1) Customize prodcuts are available ?
     Yes, Customize products are available. We could design and produce products according to your requirements or darwings. You just need to tell us your detailed requirements and our technicists will design and provide materials for your confimation. If all is ok, the production will be arranged.

2)  What's your payment terms?
    For small order, considering the value is not large, the payment terms are 100% T/T in advance.
    For large order, we could negotiate.

3) how about the packaging and shipment?
    Packaging : in box (wooden case).
    Shipment : according to customer's instruction.

4) How about the lead time ?
   For common model, the lead time is about 15 workdays;
   For customize model, the lead time is longer, about 30 workdays.

5) How about the quarantee period ?
    In generall, the quarantee period - one year for assembly unit from the date of sale .
