• Model NO.：bobo
• Origin：China

Basic Info.

Model NO. bobo Origin China

Product Description

Design concept

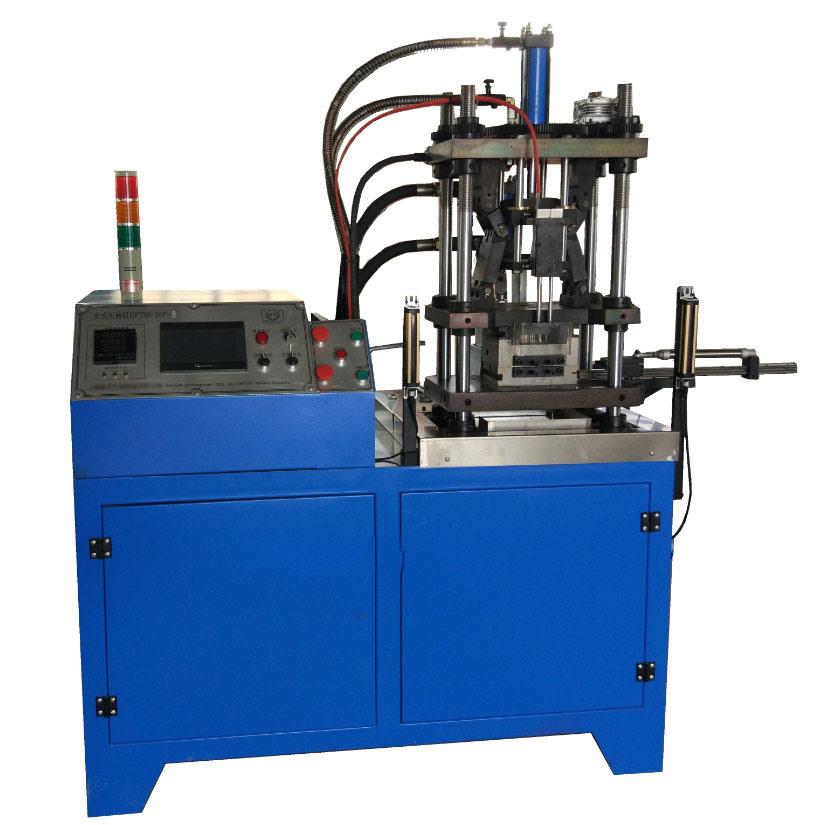

This vertical die casting machine is specially design for die casting lead or zinc alloy embedded mold such as lead fishing sinker etc. Special automation control systems, security monitoring systems, energy-saving design which makes this die casting machine has high reliability, efficiency and automation. Its production of zinc alloy, lead alloy, tin alloy products, with the best surface quality, polishing, plating, painting, it has been widely used in manufacturing gear, electrical and electronic castings, auto parts and other fields.
Feature
1)The system adopts imported Japanese Mitsubishi or Yonghong of Taiwan;
2)Detection of die band gap to prevent spraying;
3)The heating tube is heated through the outside of the crucible;
4)PID temperature control mode, high temperature control accuracy;
5)The equipment has the function of weekly cycle setting.

What can this machine make?

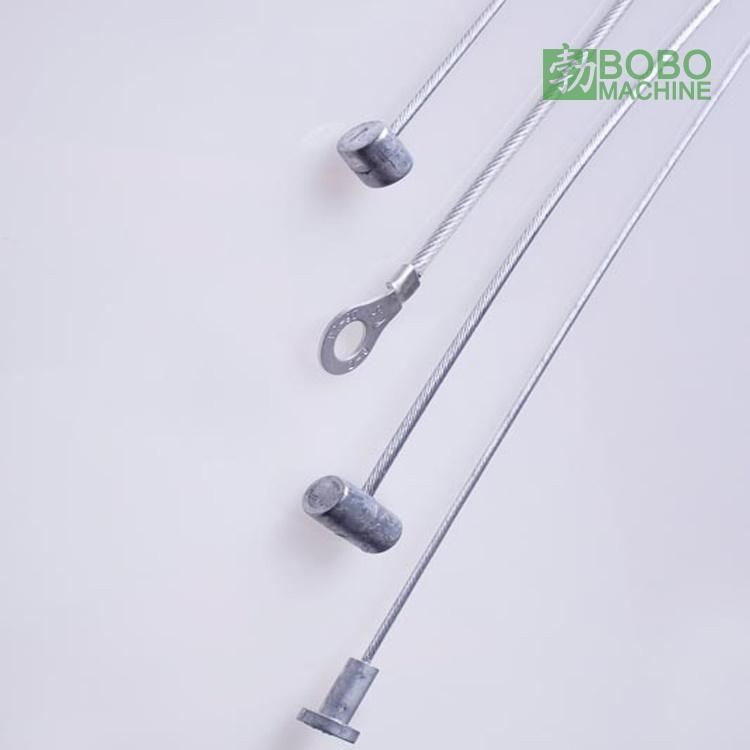

Lead fishing, lead sinker, car brake cable, motorcycles brake cable,bike brake cable,key, knitting needle,electrical parts and so on...
Specifications:

	Name	Parameters
1	Locking force	100KN
2	Wire diameter range	1.0-3.5 mm
3	Max die casting speed	10/min
4	Power	5.5kw
5	Production	1.2-1.6w pcs/day
6	Machine weight	1000Kg
7	Machine Dimensions	1450*1000*1720cm
