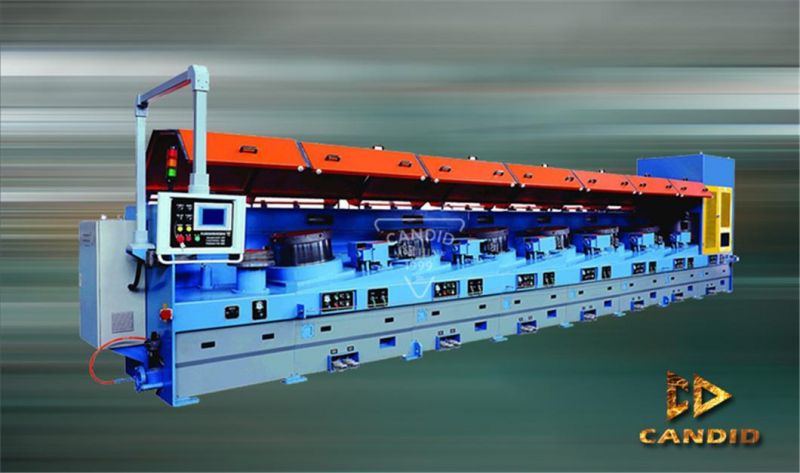

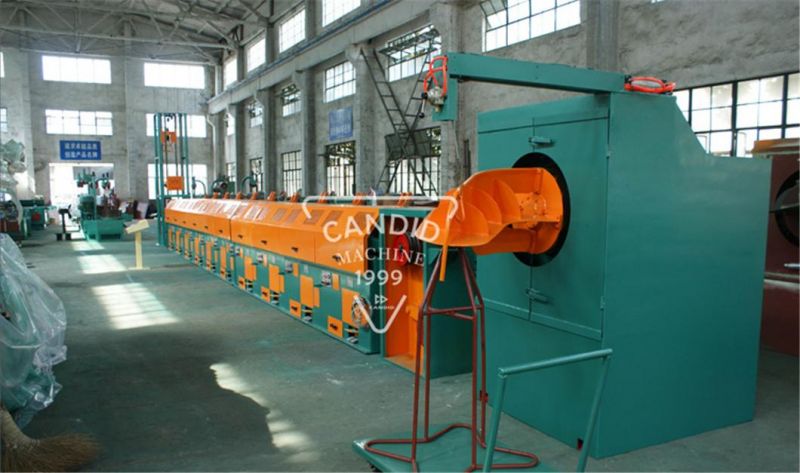

Lz High Speed Straight Line Automatic Wire Drawing Machine
Hangzhou Candid I/E Corp. Ltd.- Type：LZ Straight-Line Metal Drawing Machine
- Usage：Wire
- Metal Material：Steel
- Outlet Diameter：0.5-6.0mm
- Max.Inlet Wire Dia.：8mm
- Block Dia.：560mm
Base Info
- Max. Number of Block：9
- Certification：CE
- Condition：New
- Power Supply：380,415,440,220V
- Power：22-55kw
- Max Speed of Drawing：12m,S
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Diameter of Block：350-600mm
- Suitable Material：Low Carbon Steel,Medium Carbon,High Carbon Steel
- Transport Package：in Nude or Wooden Case
- Specification：8600*1390*1925mm
- Trademark：CANDID
- Origin：China
- HS Code：84633000
Description
≤1250Mpa
Drawing Passes
2 ~ 11
2 ~ 11
2 ~ 11
2 ~ 12
2 ~ 12
2 ~ 12
2 ~ 12
2 ~ 9
2 ~ 9
Max. Dia. Of Inlet Wire
2.8mm
3.5mm
4.2mm
50mm
5.5mm
6.5mm
8mm
10mm
12.7mm
Min. Dia. Of Outlet Wire
0.5mm
0.6mm
0.75mm
1.0mm
1.2mm
1.4mm
1.6mm
2.2mm
2.6mm
Max. Speed Of Drawing
~ 25m/s
~ 20m/s
~ 20m/s
~ 16m/s
~ 15m/s
~ 15m/s
~ 12m/s
~ 12m/s
~ 8m/s
Drawing Power
7.5~18.5kw
11~22kw
11~30kw
15~37kw
22~45kw
22~55kw
30~75kw
45~90kw
55~110kw
Guarantee and after-service:
1. Guarantee time:one year since machine was at buyer' factory within 12 months against B/L date
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Technical support by e-mail.
