• Model NO.：SuperFast 1530
• Cutting Speed：100-12000 mm,Min
• Cutting Thickness：0.5-40mm
• Cutting Accuracy：±0.5mm
• Sensor Torch Height Control：Automatic
• Drive：Stepper Motor
• Control System：F2300b
• Software：Startcam
• Plasma Cutter：Huayuan,Seanior,Hypertherm
• Warrenty：12 Months
• Transport Package：Wooden Case, Standard Export Packing
• Specification：1500*3000mm
• Trademark：Seanior
• Origin：China (Mainland)
• HS Code：8456901000
• Production Capacity：400 Sets,Year

Basic Info.

Model NO. SuperFast 1530 Cutting Speed 100-12000 mm/Min Cutting Thickness 0.5-40mm Cutting Accuracy ±0.5mm Sensor Torch Height Control Automatic Drive Stepper Motor Control System F2300b Software Startcam Plasma Cutter Huayuan/Seanior/Hypertherm Warrenty 12 Months Transport Package Wooden Case, Standard Export Packing Specification 1500*3000mm Trademark Seanior Origin China (Mainland) HS Code 8456901000 Production Capacity 400 Sets/Year

Product Description

Product Presentation:

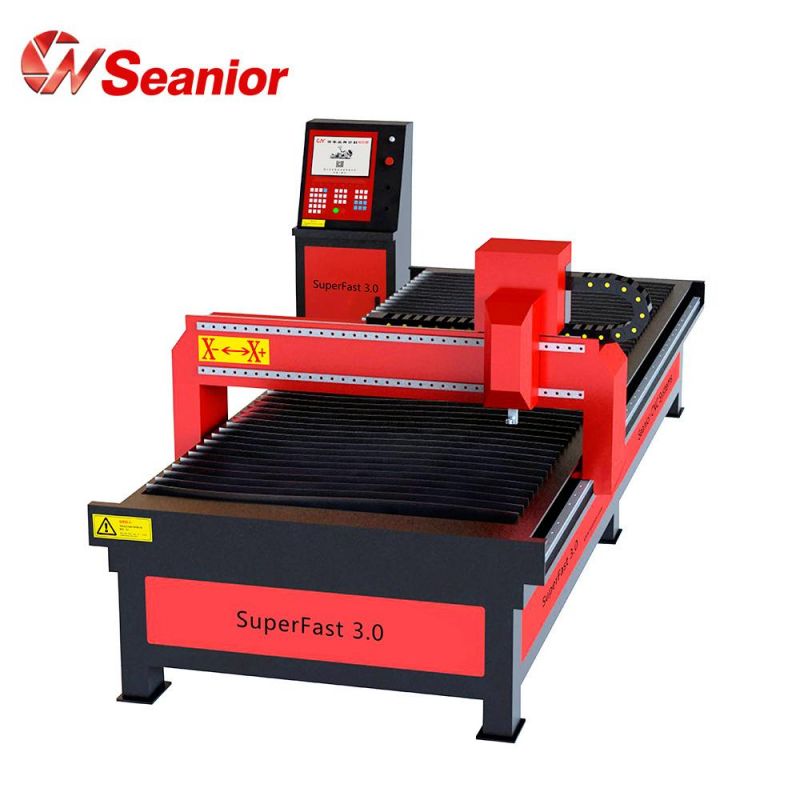

 Good Service Automatic CNC Plasma Table Cutting Machine

(CNC Plasma Cutting Machine    SuperFast1530)

Low cost plasma and cutting machine | Fast, Accurate, Long work hours


Compact construction, SuperFast is your best choice of plasma cutting machine to cut

sheet metal at low cost while achieving accurate cutting quality at the same time.

friendly operation panel, easy-to-use.automatic program optimization nest path

G and M code recognizable. DXF/DWG files programming and nest USB data transmission
Product Feature:
 Good Service Automatic CNC Plasma Table Cutting Machine

(CNC Plasma Cutting Machine    SuperFast1530)

Low cost plasma cutting machine | Fast, Accurate, Long work hours

space saving , quick installation, no foundation request

using integrated modular structure, making installation quick and easy

high accuracy AC motor drive.


Product Advantages:

Compact construction, SuperFast is your best choice to cut sheet metal at low cost while achieving accurate cutting quality at the same time.

Integrated machine body, sophisticated moving parts and intelligent torch lifter device minimizing non-productive time and guarantee you long period use.

Fast, Accurate, Superior edge quality, SuperFast cutting table provides superior performance and entry-level price.


Product Parameters:


Technical item	Technical parameters
effective cutting width	1500mm
effective cutting length	3000mm
material thickness	recommend thickness: ≤40mm
torch lifter vertical traveling distance	≤120mm ( Electric mode )
cutting precision	±0.5mm
cutting speed	100-15000 mm/min
linear repeating accuracy	±0.2 mm
lineation accuracy	±0.2 mm
rail track installation accuracy	side linear straightness: ±0.1mm
material to cut	mild steel, stainless steel, copper, aluminium, titanium

movement rail track	double axle linear rail track
motor	0.75KW high-precision stepper motor, servo motor is optional
distance-adjusting system	plasma arc voltage automatic height adjustment
control system	F2300B
general nesting software	Pronest,Starcam,Fastcam,
anti-collision system	360°anti-collision protection method
elevating body	ball screw / electronic push rod
plasma cutter	we recommend specific model according to material thickness (optional)
connecting power source	plasma power supply AC380V/50HZ, machine body power supply AC220V/50HZ

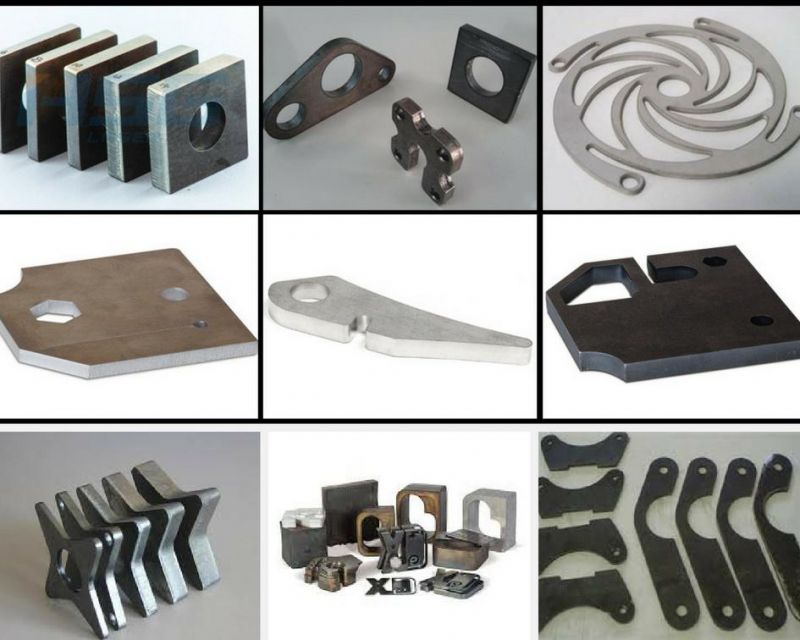

Cutting Sample:



Seanior CNC Systems:
 Seanior CNC Systems

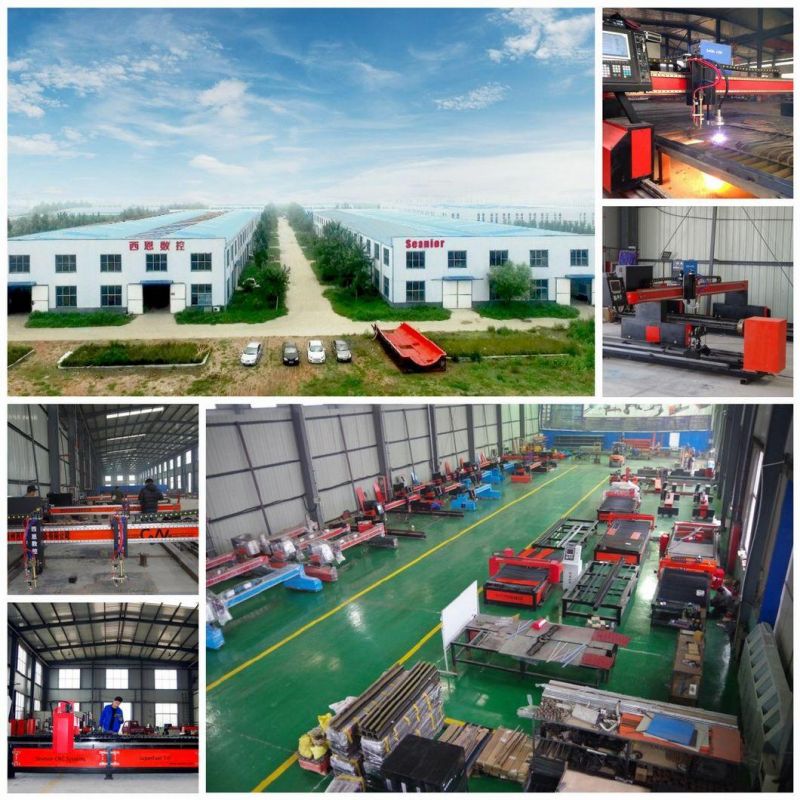

Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.




 Packing & Delivery:
Packing Details  : wooden case, standard export packing            1.Outside package:Standard marine export plywood cases for table.                2.Inner package:Stretch film and plastic film for humidity.            3.We can package according to your requests.
