• Model NO.：S525
• Certification：CE, RoHS, GS, ISO9001
• Type：Sand Casting
• Transport Package：Custom
• Trademark：DL
• Origin：Qingdao, China
• HS Code：8474802000
• Production Capacity：600

Basic Info.

Model NO. S525 Certification CE, RoHS, GS, ISO9001 Type Sand Casting Transport Package Custom Trademark DL Origin Qingdao, China HS Code 8474802000 Production Capacity 600

Product Description

Qingdao Dingli machinery Co., Ltd. is located in the beautiful seaside - Qingdao Pingdu, the company set scientific research, manufacturing, installation and commissioning, after-sales service in one. Mainly produces resin sand production line, clay sand production line, coated sand production line equipment, all kinds of sand processing single equipment. The company has advanced casting machinery manufacturing and development technology, the production of products can fully meet the international and domestic market demand. The company has excellent design and development team, skilled construction team, domestic leading casting equipment design concept, perfect after-sales service system, willing to cooperate with the majority of casting enterprises, create a better tomorrow.

In line with the "down-to-earth, integrity-based, pay attention to service, continuous innovation" business philosophy, through continuous efforts. With our own efforts and focus on the development of a series of perfect processing equipment, to meet the different needs of the majority of users.

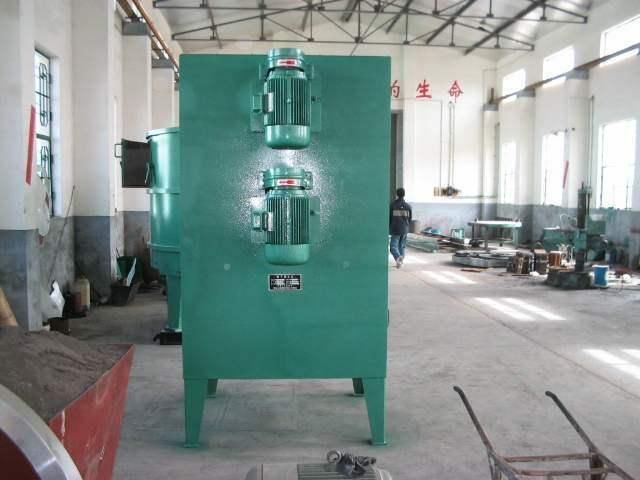

Purpose: This machine is mainly used for recycling resin sand in casting workshop. It has the characteristics of compact structure, reliable operation, convenient maintenance, low energy consumption and good regeneration effect. Features:

The machine can be composed of several units with the same structure in vertical direction. After purification and granulation, the sand falls from the hopper to the feed plate, and then uniformly falls into the rotary plate. Under the action of centrifugal force of the high-speed rotating rotary plate, the sand is thrown to the fixed annular baffle at a speed of 30~40m/s. The high-speed sand flow hits the baffle and rotates along its inner wall, causing impact and friction between the sand grains and the baffle, and then falls into the receiving hopper of the next unit. After several cycles, the resin film gradually falls off to achieve the purpose of regeneration. The high speed rotating wings allow the air to pass through the falling sand stream at high speed, picking up the dust and discharging it from above into the dust collector.



Model Parameters	S525
(th) Productivity(t/h)	5
(r/min) Rolation number of sand throwing disc(rimin)	1242
(r/min) Rotor motor speed(r/min) (nN)	1440
Rolor motor power(rw) (m³/h)	2×4
Exhaust volume(m3/h)	1800
