Nail Rolling Machine/Automatic Nail Making Machine
Wuxi Shenda Nail Machinery Factory- After-sales Service：Machine Operating Video and on Line Training Video
- Warranty：1 Year
- Transport Package：Wooden Box
- Specification：1800*1260*1460
- Trademark：Shenyida
- Origin：Wuxi China
Base Info
- Model NO.：GB-S
- HS Code：84633000
- Production Capacity：1000pieces,Years
Description
VF Inverter Omron brand*Angle 15º- 16º * Nails Count per coil 200 - 400 Applicable Power Supply AC 380V, 50HZ, 3-Phase (Others are available upon request) MCU Welding Power Supply DC 290 -330V Compressed Air ≥0.4 - 0.8Mpa Welding Current 1000 - 2000A (Secondary Side) Cooling Water Pressure Required: 0.1 - 0.2 Mpa Rated Power 8KW Net Weight Approx. 1800 kgs Max. Power 20KW Dimension 3.2 x 0.95 x 1.7m

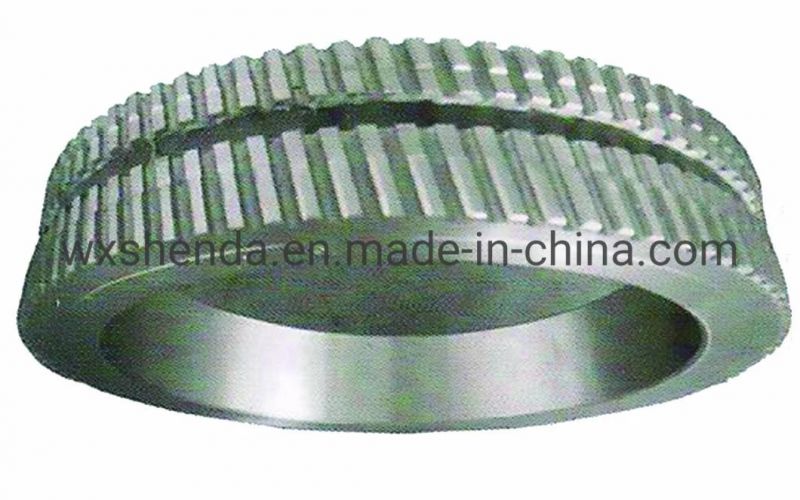

High speed coil nail welding machine mould

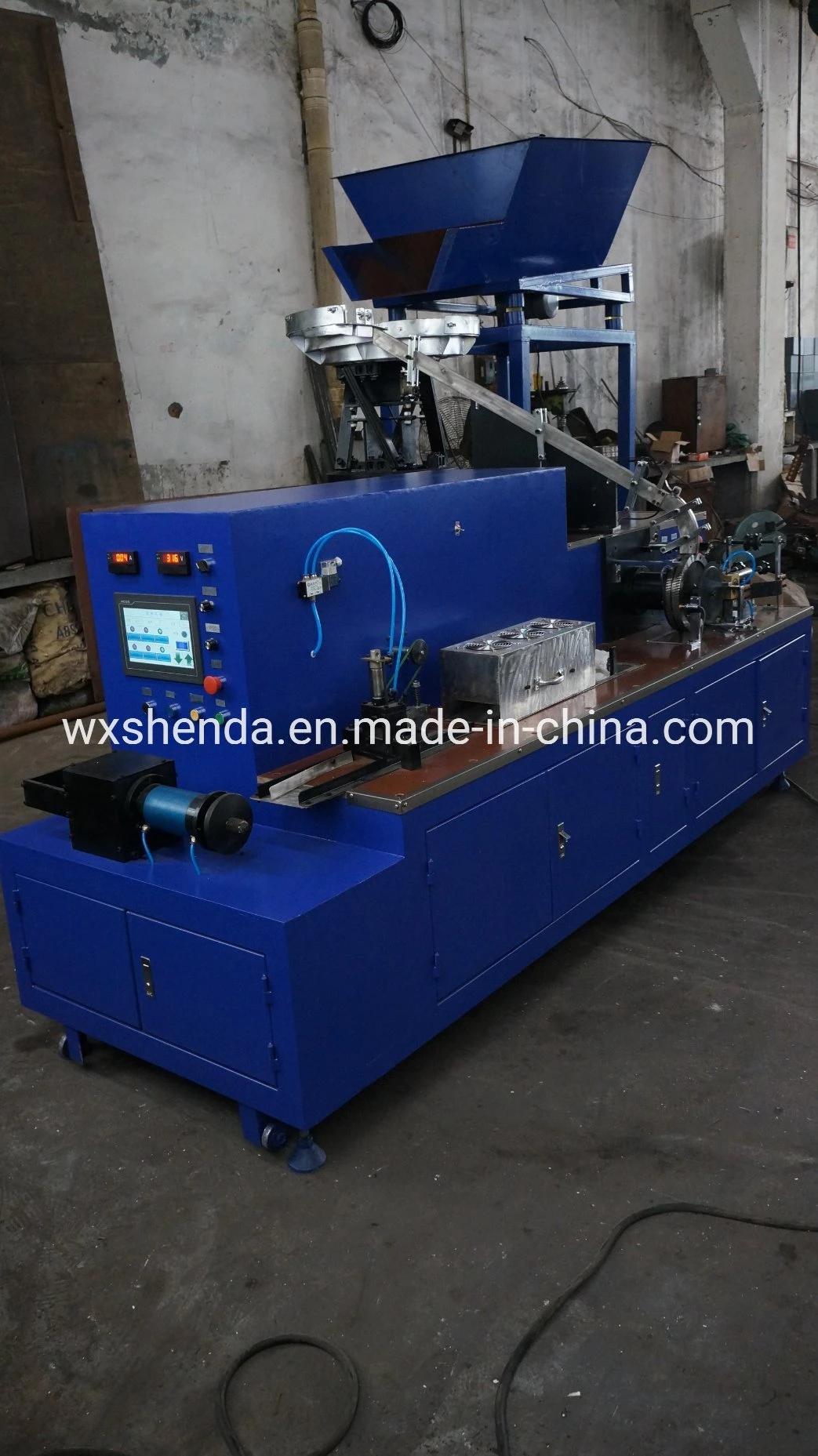

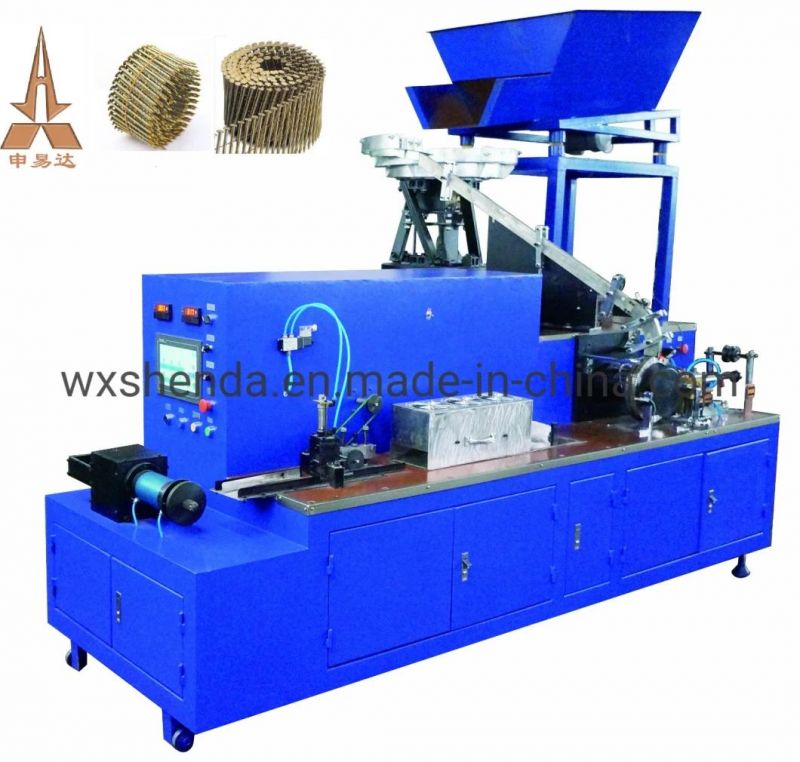

High Speed nail making machine
Our customer show:
High speed coil nail welding machine mould
High Speed nail making machine

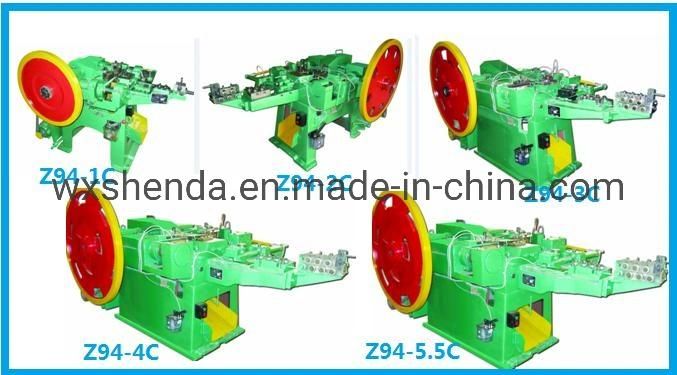

| parameter | unit | Z94-6.5C | Z94-5.5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Dia of nail max | mm | 6.5 | 5.5 | 4.5 | 3.4 | 2.8 | 1.6 |
| Dia of nail min | 4.5 | 3.7 | 2.8 | 1.8 | 1.2 | 0.9 | |
| Length of nail max | mm | 200 | mm150 | 100 | 80 | 50 | 25 |
| Length of nail min | mm | 100 | 80 | 50 | 30 | 16 | 9 |
| Dsigned out put | pcs/min | 160 | 200 | 260 | 320 | 350 | 450 |
| Moter power | kw | 11 | 5.5 | 4 | 3 | 2.2 | 1.5 |
| Weight(approx) | kg | 5000 | 2500 | 2000 | 1400 | 1200 | 560 |
| Overall dimensions | mm | 3200x2200x2200 | 2800x1800x1800 | 2200x1600x1650 | 2000x1400x1400 | 1700x1300x1400 | 1500x1300x1200 |
| Specification | YH-ZDJ-E90/X90 | YH-ZDJ-X50 | YH-ZDJ-X130B | YH-ZDJ-X150 | YH-ZDJ-D90 |
| Nail Head | round head | round head | round head | round head | D Head |
| Wire Diameter | 2.0mm ~ 3.5mm | 2.0mm-3.0mm | 2.5mm-5mm | 2.5mm-4.5mm | 2.0mm-3.5mm |
| Nail Length | 40mm ~ 90mm | 32-50mm | 70-130mm | 70-150mm | 40-90mm |
| Weight | 2800kg | 2500kg | 3200kg | 4500kg | 3000kg |
| Power | 7kw | 7kw | 7kw | 14kw | 7kw |
| Max Output | 760 pcs/ min | 800pcs/min | 650 pcs/ min | 600 pcs/ min | 760 pcs/ min |
| Wire Grade | SAE 1006-1010 | SAE 1006-1010 | SAE 1006-1045 | SAE 1006-1010 | SAE 1006-1010 |
Our customer show:
