Household Appliances Manufacturers Is The Nc Straightener Feeder (MAC4-1800H)

GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.
  • Type：Straightener Feeder
  • Usage：Coiled Material Straightening
  • Voltage：380V
  • Automatic Grade：Automatic
  • Principle：Large Deformation
  • Certification：TUV, ISO9001, CE

Base Info

  • Model NO.：MAC4-1800H
  • Warranty：12 Months
  • Customized：Customized
  • Condition：New
  • Stock Width(mm)：70~1800
  • Stock Thickness(mm)：0.6~6.0
  • Line Speed(M/Min)：16~24
  • Coil Weight(Kg)：10000
  • Transport Package：Wooden Box or Vacuum Packing
  • Specification：3150*4700*3450
  • Trademark：RUIHUI
  • Origin：China, Dongguan
  • Production Capacity：30 Sets Per Month

Description

Overview

Product Parameters

3 Phase 220V/380V/50HZOperating Air(Mpa)0.490.490.490.49*In Case Feeding length is 500mm or longer,MASTER CONTROL Funolion(Option)must be provideo.

Stock Thickness
(mm)0.613001400160018001.413001200160018001.81300800124912002.01250800124912002.59006107177073.07006005905804.03505705703505.02002562602006.0150178210150*The above flgures are the material having yield strength of 600N/mm2 max.

Product Description

The three-in-one feeder is composed of three functions: rack, leveling, and feeding, and its loading, feeding, blocking, folding, leveling, feeding, and reloading are all controlled by one person on an independent console. The operation can be completed, which greatly saves labor, which effectively solves the problem of inconsistent leveling and feeding, and realizes the effect of high-speed leveling and feeding. At the same time, the overall appearance is strong and beautiful.

Detailed Photos

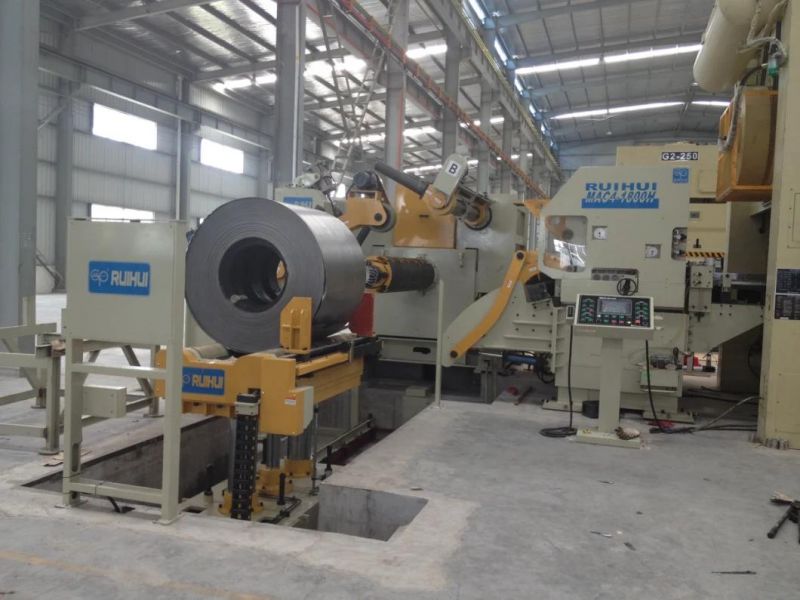

Household Appliances Manufacturers Is The Nc Straightener Feeder (MAC4-1800H)

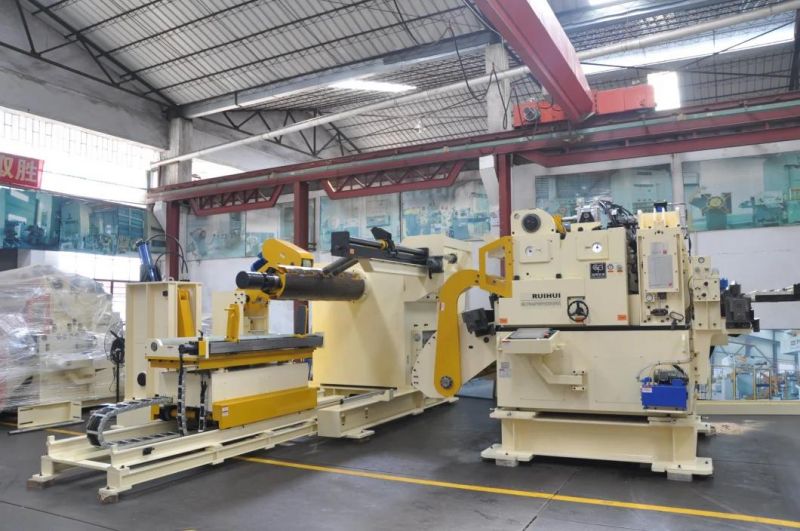

Household Appliances Manufacturers Is The Nc Straightener Feeder (MAC4-1800H)

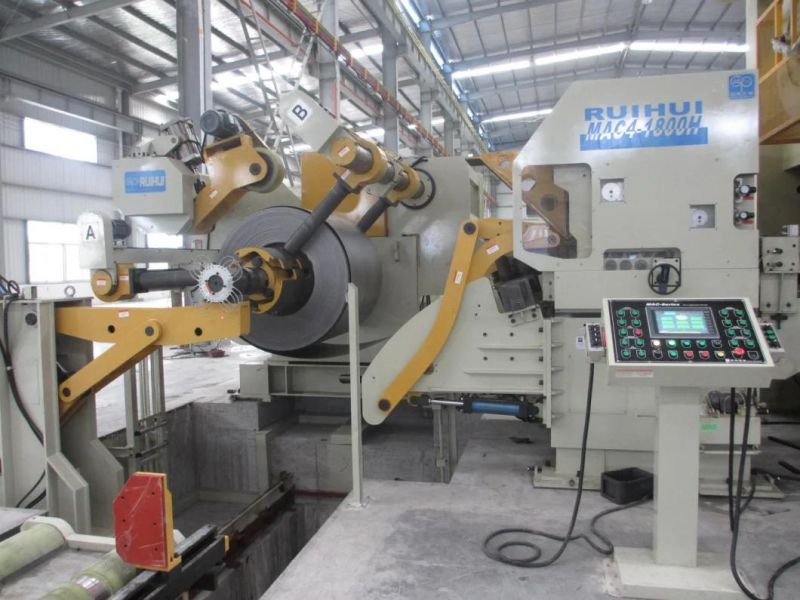

Household Appliances Manufacturers Is The Nc Straightener Feeder (MAC4-1800H)

Our Advantages

Why choose us?
1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval
