• Model NO.：SQ100F
• Rear Centering Device：Cam Action
• Weight：G.W,N.W: 175,140kg
• High Efficiency：Gearbox + Belt Transmission, Low Noise
• Size：66*70*92cm
• Transport Package：Plywood Case, 1 PC, Package
• Specification：CE, CSA, ISO9001: 2008
• Trademark：Hongli Brand Machine
• Origin：Hangzhou Zhejiang, China
• HS Code：8459700000
• Production Capacity：3000 Sets, Month

Basic Info.

Model NO. SQ100F Rear Centering Device Cam Action Weight G.W/N.W: 175/140kg High Efficiency Gearbox + Belt Transmission, Low Noise Size 66*70*92cm Transport Package Plywood Case, 1 PC/ Package Specification CE, CSA, ISO9001: 2008 Trademark Hongli Brand Machine Origin Hangzhou Zhejiang, China HS Code 8459700000 Production Capacity 3000 Sets/ Month

Product Description

High Efficient Pipe Threading Machine (SQ100F)

Application

1. Threading, Cutting, and reaming various sizes of Water, Electric, and Gas Pipes ranging from 1/2"-4" NPT or BSPT Threads
2. Ideal for stationary threading in workshop,on building sites,for production,repair and service.
3.Suitable for universal pipe sizes of 1/2"-2".  2 1/2"-4" is also available for tapered threads NPT or BSPT.
4.Threads a variety of pipes: black, galvanized, plastic-coated pipe, along with stainless steel, IMC & heavy-wall conduit.

Standard Configuration (that is to say it includes)


• 1/2"-4" Pipe Threader
• Motor: High Torque 1500 Watt 2 HP Induction voltage can be OEM(standard 220V)
• Spindle Speed: 36 RPM (1/2"-3/4"), 20RPM (1"-2"), 11RPM (2 1/2"-4")
• OEM plug and foot switch for option
• 1/2"-3/4' & 1"-2" Universal Self Opening Die Head fits RIDGID® Dies (NPT/BSPT Threads)
• 2 1/2"-4" Receding Self Opening Head fits RIDGID® Dies (NPT/BSPT Threads)
• (Set of 4) HSS Pipe Dies 1/2"-3/4" , 1"-2" NPT , 2-1/4"-4"
• Full Floating Self Centering Pipe Cutter
• Reamer 1/4"-4" Blade Style
• Thread Cutting Oil of 4L
• A Tool Box
• Support Arms
•

Featuring

1. All spare parts are interchangeable with Ridgid1224 threader.

2. Induction motor together with gearbox+belt,efficiently control the noise level.

3. High working efficiency with low power consumption

4. Standard with HSS material threading dies for high quality using.

5. Self-developing thread cutting oil can commonly used with RIDGID black oil and REX oil.

6. CE & CSA approved & OEM offered

Specifications

Capacity: ¼"-4" (DN 6mm-100mm) pipe, ¼"-1 ¼"(DN 6mm-32mm) bolt.
Motor: 1500W Induction reversible motor, single phase, 50~60 Hz, 115V or 220V (230V, 240V available)
Spindle Speed: 36 RPM for ½ "-¾" pipes, 20 RPM for 1"-2" pipes, 11 RPM for 2 ½"-4" pipes (No load)
Switch: ON/OFF switch. (Reverse switch and Foot switch are optional)
Gear Housing: Aluminum
Body: Casting Aluminum
Die head: RIDGID 711/911 automatic type "-2", and RIDGID 714/914 automatic type 2 ½"-4"
Dies Included: ½"-¾", 1"-2", 2 ½"-4", (¼"-" optional)
Screw Threads: NPT /BSPT / Metric
Dies Material: HSS standard, (Alloy dies, and Titanium coating HSS dies optional)
Chuck: Speed chuck with replaceable rocker-action jaws.
Rear Centering Device: Cam-action turns with chuck.
Oiling System: Through-the-head, with integral oil reservoir. Self-priming, constant-flow
Support Bar: Heavy-duty
Certificates: CE & CSA Approved

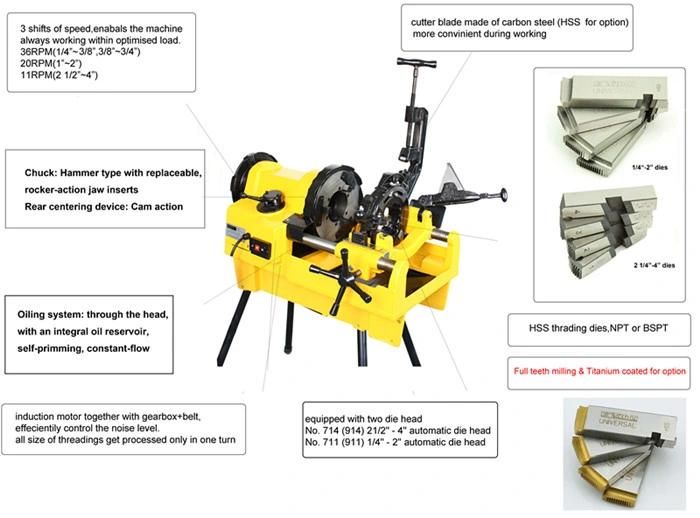

Description	Pipe Threading machine  (SQ100F)	1/2"-4"
1.	Motor	1500w induction type
2.	Speed	36 RPM for pipe threading 1/2"-3/4"
3.		20 RPM for pipe threading 1"-2"
4.		11RPM for pipe threading 2 1/2"-4"
5.	die head (1/2"-2")	automatic type, interchangeable with the die head for RIDGID 1224
6.	die head (2 1/2"-4")	receding automatic type, interchangeable with the die head for RIDGID 1224
7.	Chuck	Hammer type with replaceable, rocker-action jaw inserts
8.	Rear centering device	Cam action
9.	Oiling system	through the head, with an integral oil reservoir, self-primming, constant-flow
10.	Transmission system	gear box + belt (noise under efficient control)
11.	package	66*70*92CM
12.	G.W/N.W	175/140KG

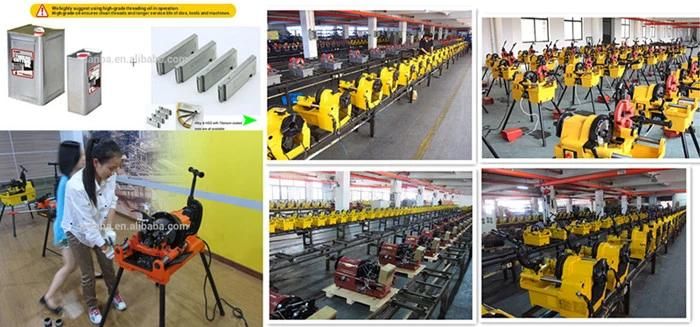

High efficiency and Perfect match of the oil and dies makes even women have access to the machines

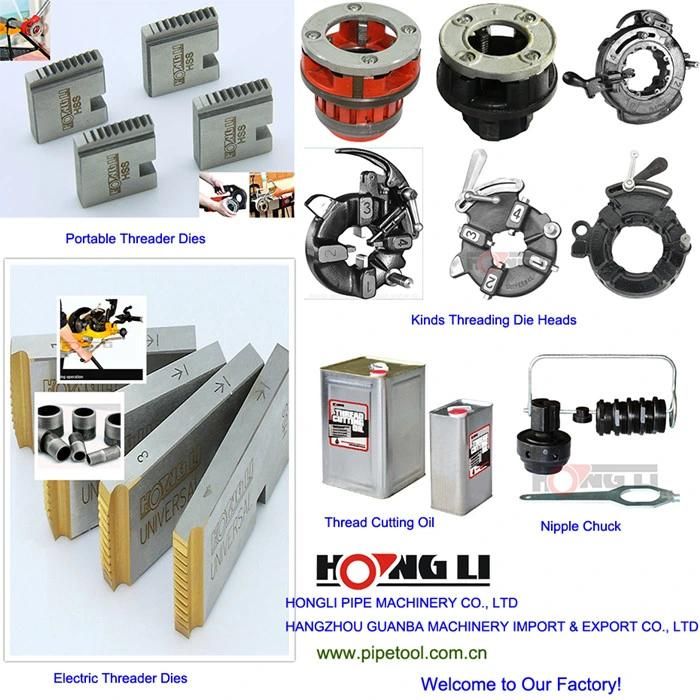

Great Machines Need Great Accessories


Hongli Pipe Machinery will always advance with

the times in the Machinery World!

Since the foundation of Huaxing Machinery Factory (our initial company) in 1988, R&D is one of our main focuses. It's our belief that creativity and innovation is the key to success. In the past 20+ years, our engineers and technicians contributed lots of intelligence and efforts to many products. With these innovative products, we enjoy a high reputation in the range of pipe machinery.
Innovation is the soul of our company. Our R&D department will shoulder the expectations of the company and help us walk toward a bright future.

We factory do OEM for RIDGID, ROTHENBERGER, REAMS, REX and some other famous brands in the world!

FAQ

Q1.:What's your payment terms?



1.Paypal, TT, Western Union are all acceptable payment terms.



2.The order amount above USD5000, 50% down payment and 50% C/D (cash against documents) is accepted, the amount below USD5000, It should be 100% down payment.



3.Regular clients will enjoy special requests for the payment terms if you need.



4.For each order above USD5000, we will pay the bank charge and insurance fee for you, while ones below USD5000, each order costs USD50 or more in bank charge part.



 Q2.May I have an inspection?



Yes, Of course you can!



You can inspect the goods and the workshops in our factory by yourself or ask your trust agents in China to do it for you.



We also have QC team to inspect the goods before they are sending out from our factory.



 Q3.What's your delivery methods?



The normal delivery methods are all acceptable, such as by Air, by sea and by express.



For air and sea delivery method, we start from port Shanghai or port Ningbo.



For express delivery method, we start from our door to your door, DHL, Fedex, UPS...are all available.



Your agent forwarders are also acceptable, you only have to pay us inland delivery cost



We suggest buyer making insurance for the goods, to avoid any loss in transportation.

Q4.How long is your manufacturing time?

We did not make stock in the past because the customers have different requests for the machines so we only have rough pieces in our storage. Now, we are promoting our own brand and standard type machines.

1.For the standard specifications, if there are enough rough pieces in stock meeting your need, it takes 15 days for the assembly; if not, it will take longer to 30 days at most.

2.For OEM orders, we have MOQ for some of the machines because it is a complicate thing to change some parts or develop something. The manufacturing time will be about 30 days or more according to your quantity need.

3.After having standard stocks, the goods will be sent out once we get your payment any time.
