5-14mm Automait Scrap Steel Wire Straightening Machine
XUCHANG HENGYISHENG COMMERCIAL CO., LTD.- Type：Balance Roller Straightening Machine
- Usage：Wire, Bar
- Voltage：380V or as Required
- Automatic Grade：Automatic
- Principle：Large Deformation
- Warranty：24 Months
Base Info
- Model NO.：MY services
- Customized：Non-Customized
- Condition：New
- Name：Wire Straightening Machine
- Working Principle：Hydraulic and Automatic
- Min. Straightening Length：800mm
- Color：Optional
- Transport Package：Plywood
- Specification：size is different for different model
- Trademark：Hengyisheng
- Origin：Henan
- HS Code：8462291000
- Production Capacity：8000 Sets,Year
Description
Basic Info.
Model NO. MY services Customized Non-Customized Condition New Name Wire Straightening Machine Working Principle Hydraulic and Automatic Min. Straightening Length 800mm Color Optional Transport Package Plywood Specification size is different for different model Trademark Hengyisheng Origin Henan HS Code 8462291000 Production Capacity 8000 Sets/YearProduct Description
Automait scrap steel wire straightening machine 5-14mmFeatures of the scrap steel wire straightening machine:
MY5-12/MY6-14 scrap rebar straightening machine is characterized by advanced design with safe, reliable and easy operation as well as stable performance. It is able to straightening scraped rebar with high efficiency. Cutting function has been added to remove unwanted part. The four heavy-duty wheels can be used to move the machine anywhere easily. It reduces the cost of the materials and protects the environment by re-using the scraped rebar.
Technical parameter of scrap steel wire straightening machine:
| Model | MY5-12(1) | MY5-12(2) | MY6-14 |
| Straightening diameter | 5-12mm | 5-12mm | 6-14mm |
| Working efficiency: | 15-20m/min | 30-35m/min | 30-35m/min |
| Min. straightening length | 800mm | 700mm | 800mm |
| Reducer | / | 250 | 350 |
| Motor power: | 5.5kw | 4kw and 3kw | 5.5kw and 4 kw |
| Overall dimension: | 1150*600*730mm | 1250*1050*850mm | 1460*1160*890mm |
| Total weight: | 330kg | 700kg | 900kg |

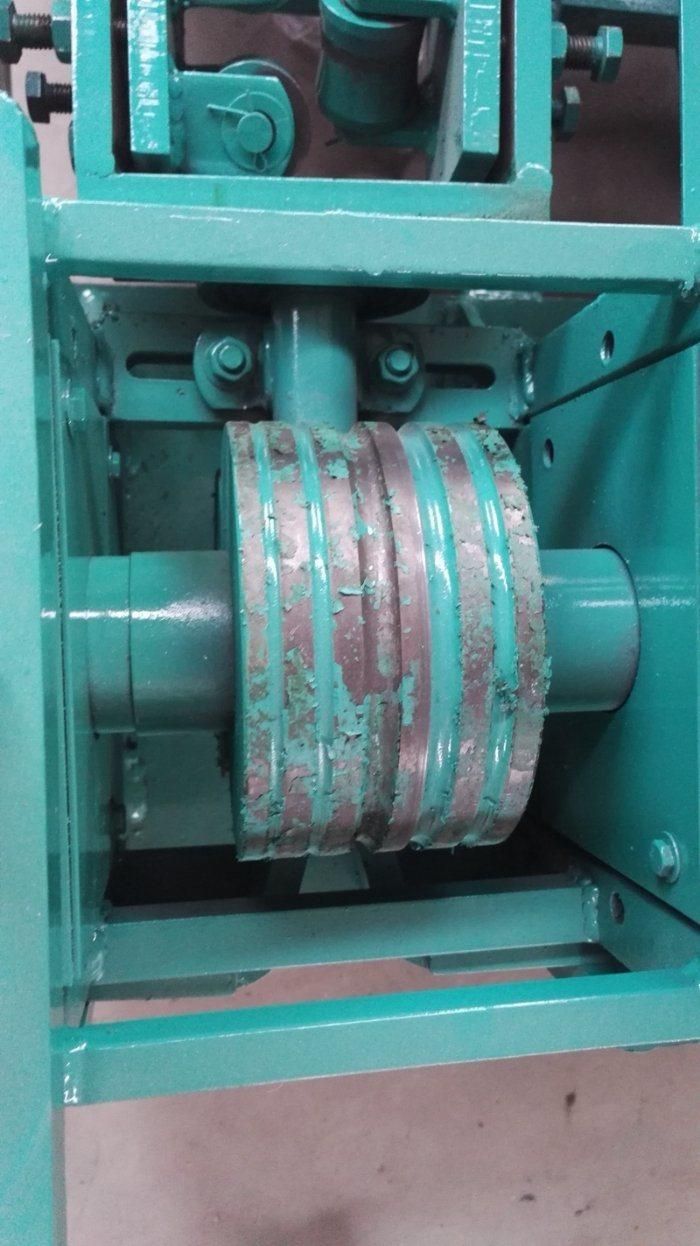

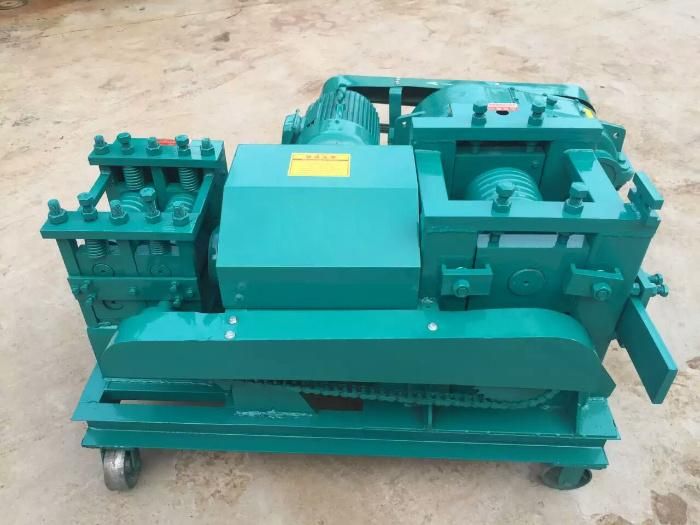

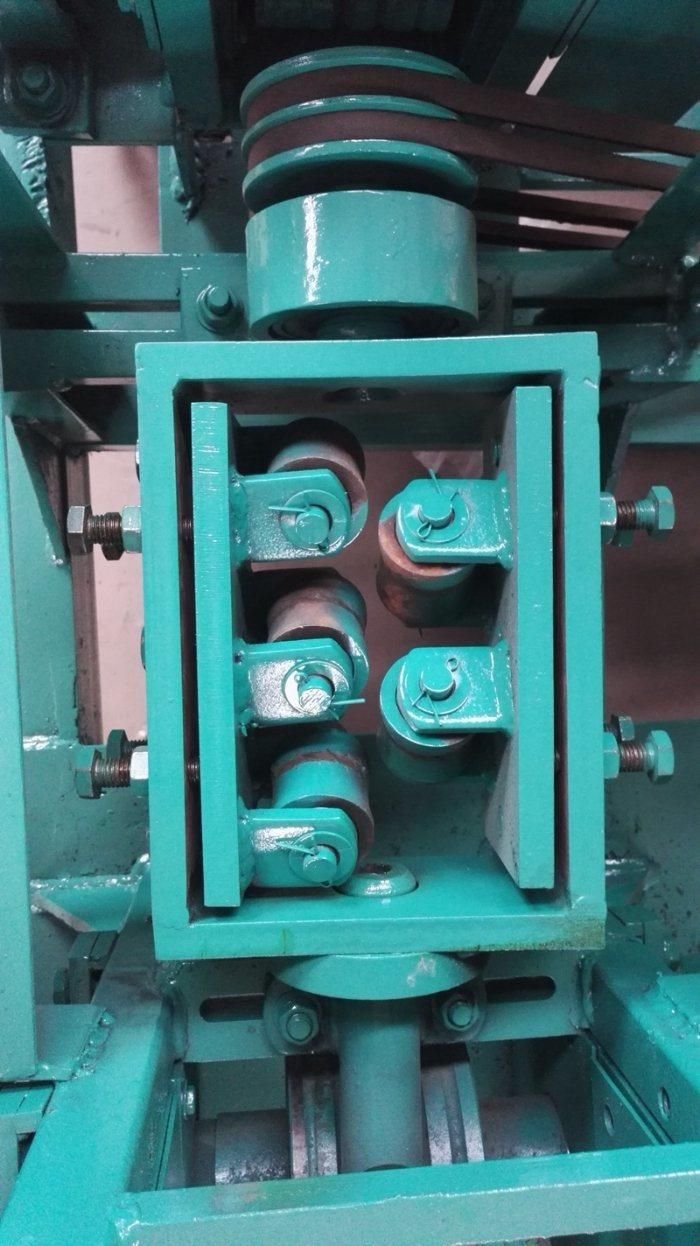

Detailed pictures
Our services
Pre-sale Service
1. Supply item design, process design.
2. Help you to choose the most suitable machine.
3. Making the machine according to your requirement.
On-Sale Service
1. Acceptance equipment together with you.
2. Help you to make the method statement and the details of the process.
After Service
1. Guarantee for two years
2. Quality problem, we will send you the accessories.
3. Free repair whole using life (without accessories charge).

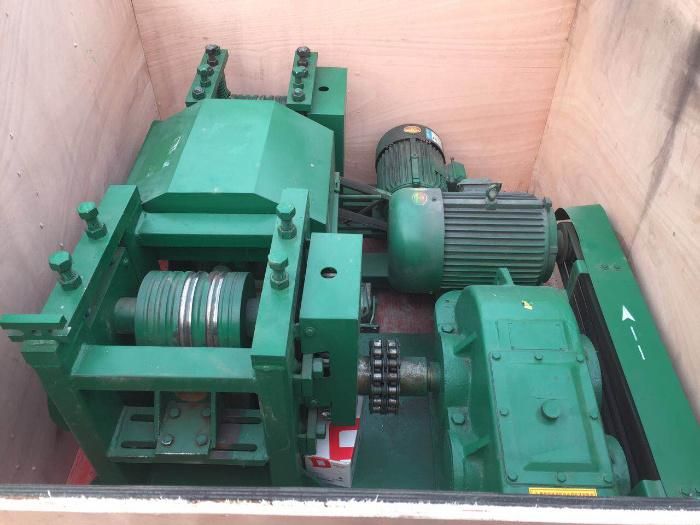

Package and delivery
