• Model NO.：Model D
• Warranty：24 Months
• Customized：Non-Customized
• Condition：New
• Transport Package：Exporting Packing
• Trademark：Baohua
• Origin：China
• Production Capacity：1500 Set,Sets Per Month

Basic Info.

Model NO. Model D Warranty 24 Months Customized Non-Customized Condition New Transport Package Exporting Packing Trademark Baohua Origin China Production Capacity 1500 Set/Sets Per Month

Product Description

Use and features

This product is characterized by simple operation, and suitable for small car body panels.it and girders repair, can quickly fixed body, easy to body overhaul powerful when bear, body minor repairs without pulling clamping chassis may finish pull out assignments. Homework without Angle limit, and a second group of hydraulic pump and homework, implement multiple direction and integer repair or single direction powerful pull. Can depend on site environment simultaneously more cars, saving the maintenance space operations



Main technical parameters

power pump pressure range	0.7 ~ 0.8 Mpa
hydraulic pressure system work pressure	70Mpa (10000PSL)
maximum pillar hydraulic thrust	100KN
pull column height	150mm
pull tower Height	150mm
hydraulic oil	R22 # jack special hydraulic oil
hydraulic connector	1/4NPT
general body fixed fixture group use maximum height	45cm
tiger height	40mm
tool car maximum load-bearing	200kg
high-pressure tube length	more
chain strength	G80 level

configuration

NO.	NAME	UNIT	NUMBER
1	Pneumatic pumps	set	2
2	Hydraulic hose	piece	2
3	Body fixed fixture seats	set	4
4	L bolt eight teams	piece	8
5	Fixed groove hook	piece	8
6	Translation to tiger base plate	piece	4

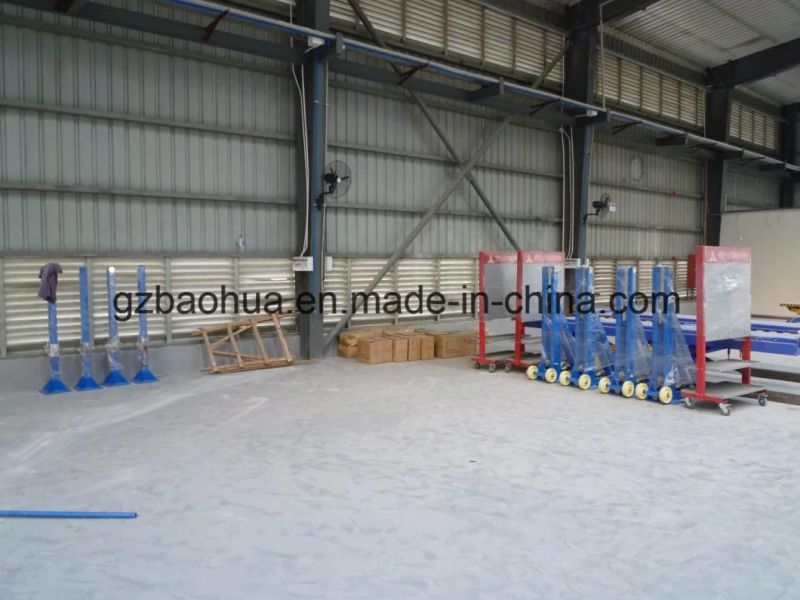

7	Sheet metal pull tower group	set	2
8	To tiger pull column	set	2

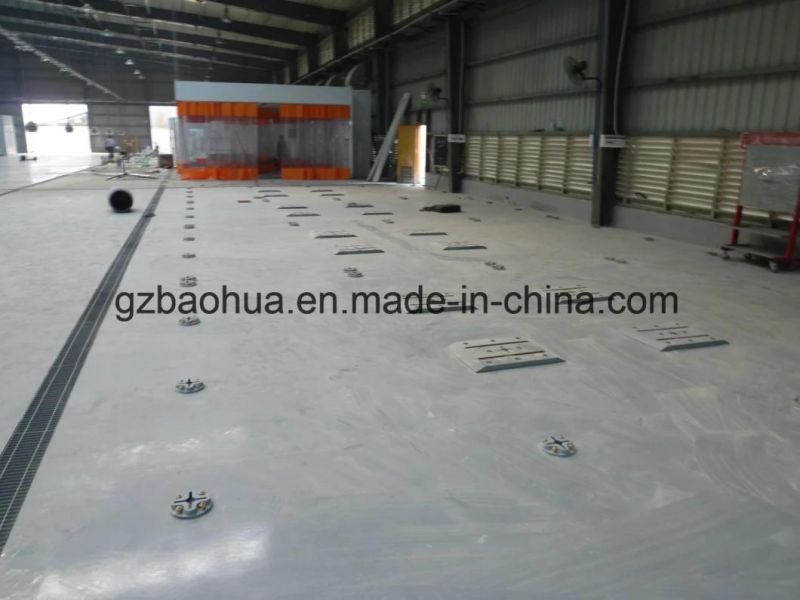

9	Four type ground tiger	set	18
10	Firing pin type to expand bolt	piece	104
11	Pliers clip	set	2
12	Embouchure clamps	set	1
13	Right-angle direction clamps	set	1
14	Scissors clamps	set	1
15	Chain connector	set	2
16	Steel clamps	set	1
17	Long tsui clamps	set	1
18	5/16×9feet chain	set	6
19	3/8×9feet chain	piece	4
20	Pliers clip (two-way)	set	1
21	Embouchure clamps (two-way)	set	1
22	Pour la hydraulic group	set	1
23	Hydraulic sheet metal group	set	1
24	Tool car only (with hook 15)	piece	1
25	Pneumatic ball type jacks	piece	1
26	The safety rope (gifts)	piece	1
27	instructions	set	1
