• Model NO.：Rolling Beam Rolling Mill
• Product Name：Rolling Beam Rolling Mill Machine
• Transport Package：Plywood
• Specification：international standard
• Trademark：SEMC
• Origin：China
• HS Code：8501320000
• Production Capacity：10000,Year

Raw material specification120×120×6000mm, 150x150x6000mm BilletSteel typeRolling BeamFinished products sizeΦ10-Φ32mm hot rolling rebarAnnual production capacity150,000 T / a

2. Technology program
We adopts 120×120×6000mm and 150×150×6000mm continuous casting billet production method to produce rebar with the diameter fromΦ10 to Φ32mm, adopting semi-rolling way in production process, the maximum export line speed can achieve 14m/s, the rolling piece need to use computer fold ruler scissors before onto the cold bed, fast cutting ,can meet processs requirements.

3. Technological process

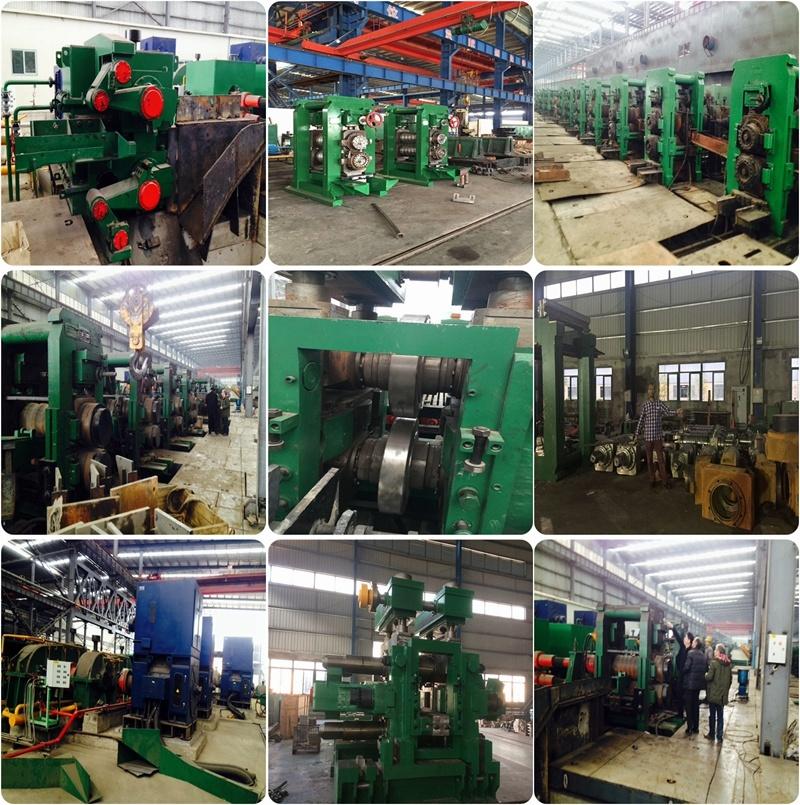

Continuous casting billet- feeding roller- heating furnace-furnace delivery table-φ550 cogging mill-φ350×4 (first group of rolling)- Φ300×4 (second group of rolling) -Φ300×4 precision rolling- flying shearing - stepping cooling bed - length cold shearing- packaging and marking- measure- put in storage.

4. Device configuration and quotation

No.Equipment NameQuantity (table)Weight (ton)Remark Machinery and Equipment   1Feeding bench110 2Feeding roller318 3Pusher112 4Heating furnace1  5Furnace delivery table18 6Conveyer roller out of the furnace213 7Working roller in the front of the machine218 8550 cogging mill (three rollers)1171.6 Connection machine(A=500)1 Reducer1 Connecting shaft, coupler1One set for each other9Double roller at the back of the machine114 10Working roller at the back of the machine219.6 11Breakdown output roller18 12Hot shearing110 13350 rolling machine4142.3 Reducer4 Connecting shaft, coupler8 14Output running chute24 15300 rolling machine4122 Reducer4 Connecting shaft, coupler8 16300 finishing mill group4122  Reducer4  Connecting shaft, coupler8 17Flying shearing17.5 18The cooling bed rollers19 19Cooling bed124012×66m20Output roller of cooling bed19 21Shearing of length18 22Mobile inspection bench118 23Packing bench16  Hydraulic Lubrication1   Electrical equipment1   Clear, turbid water circulation system2 One set for clear and turbid Process equipment14.5  Main motor13
