Decking Floor Forming Machine For 1.2mm thickness material
1.Material specifications
1.1 Feeding width: 1000mm
1.2 Effective width: 688mm
1.3 Material thickness: 1.2mm

2. Process flow: Decoiling--feeding---forming---cutting---production

3. Manual Decoiler:
3.1 Material coil inner diameter: 450mm-700mm
3.2 Max coil width: 1200mm
3.3 Carrying capacity: 5T

4. Forming Device:
4.1 Number of forming steps: 14 steps
4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm
4.3 Roller material: 45# steel
4.4 Main motor power: 5.5kw
4.5 Forming speed: 8-10m/min
4.6 Voltage: 380V/50Hz/3 phase

5. Cutting Device:
5.1 hydraulic cutter
5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62C
5.3 cutting system: Advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.

6. Controlling Device:
6.1 screen: 5.7 inch Taida screen from Taiwan
6.2 PLC: Taida DVP14ES from Taiwan
6.3 coder: Japanese Omron E6C2

7. Hydraulic:
7.1 Advanced hydraulic system from Taiwan
7.2 Power: 4kw

8. Simple output frame: Simple frame weld bu #8 U bar, 1 PCS of 3m

Configurations	Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System	PLC Panasonic Inverter
Main Frame	450mm H-Beam
Main Power	18.5 kw
Pump Power	7.5 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	15m /min
Roll Station	28steps
Roller Diameter	90mm
Hydraulic Pressure	18-20MPa
Forming Size	688 mm
Thickness	0.8-1.2mm
Feeding Width	1000mm
Chain Size	66mm
Cutter Standard	Cr12
Roller Standard	Cr12
Cr-Plating Size	0.05mm
Overall Size	15000 × 1200 × 1100mm
Total Weight	10T

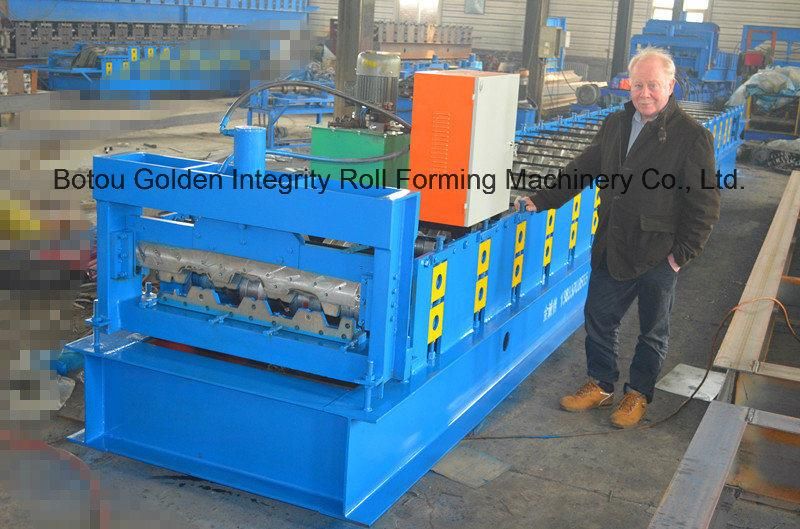

Machine picture
