• Model NO.：HJ-yl015
• Controlling Mode：PLC+Touch Screen
• Goods Examination：Party Agent
• Rolling Type：Continuous Rolling
• Inlet Material：Carbon Steel
• Transport Package：Seaworthy Packing
• Specification：Will be listed on the quotation
• Trademark：hangji
• Origin：China
• HS Code：8455213000
• Production Capacity：600000tons,Year

Basic Info.

Model NO. HJ-yl015 Controlling Mode PLC+Touch Screen Goods Examination Party Agent Rolling Type Continuous Rolling Inlet Material Carbon Steel Transport Package Seaworthy Packing Specification Will be listed on the quotation Trademark hangji Origin China HS Code 8455213000 Production Capacity 600000tons/Year

Product Description

150,000-300,000TPY REBAR PRODUCTION LINE
Summarize

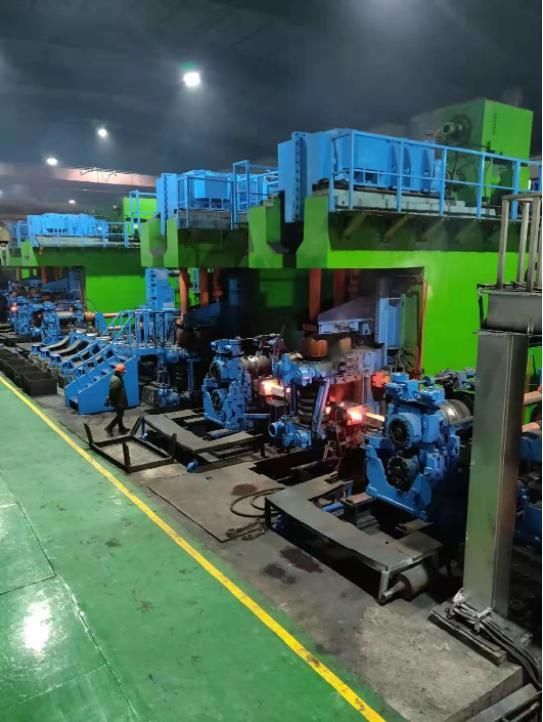

1. 1.Briefings: The qualified billet transported to rolling plant by roller bed, By the pusher-type furnace heated to 1050 ~ 1150 ºC,Pushed out by discharging machine, billet feed to roughing mill Φ520×3+Φ400×2 group by furnace delivery table, after roll 5 passes, cutting by 1# flying shear, then enter into intermediate rolling mill group Φ350×8,after sheared by 2# flying shear, then enter into the Φ350×6 finishing mill group(6 stands), after water treatment,enter into conveyer roller bed, and then sheared by dividing shear ,enter into rolling piece conveyer roller bed, then enter into cooling bed, cutting by cut-to-length shear.

2.Output Products: Φ8-40mm Rebar   Φ8 x 2,Φ10 x 2,Φ12 x 2 Slit rolling
3.Annual Capacity: 150,000 Tons/Year
4.Process flow:
Continuous casting billet→Heating→ ,Roughing mill(Φ520×3+Φ400×2,5 stands)→1# Flying shear→Intermediate mill(Φ365×8,8 stands)→2# Flying shear→Finishing mill(Φ350×6,6 stands)→Multi-lengths flying
 shear→Pinch roll→Step cooling bed→Cut-to-length shear→Collecting→Packaging→Inspecting→Labeling→
Storage
5. Declaration
5.1. Each and every piece of the machinery we provide can be operated smoothly. The operating noise meets the national standard.
5.2. The supplier will provide technical support and guidance on site while the demander covering the cost.
5.3. The rolling line is compact and can be operated smoothly with low cost.

Quotation Scope of Equipment Supply

NO.	Equipmet	Specification	Qty.
1	Rolling section steel plant steel structure	50×220m	1set

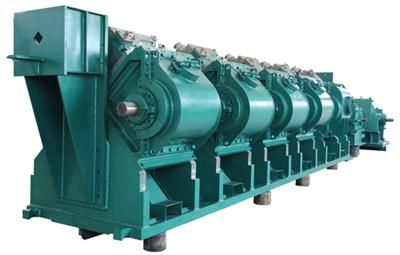

2	Φ450 Roughing mill (3H+3V)	Include motor,gearbox	6 sets
3	Φ350 Intermediate rolling mill(3H+3V)	Include motor,gearbox	6 sets
4	Φ350 Finishing rolling mill (4H)	Include motor,gearbox	4 sets
5	Φ285 Finishing mill (H-V)	Include motor, gearbox, vetical looper,protect cover	2 sets
6	1# Flying shear		1 set
7	2# Flying shear		1 set
8	Multi-lengths flying shear		1 set
9	Cut-to-length shear		1 set
10	Quenching system		1set
11	Step cooling bed	30×6m	1set
15	Automation control and electronic control	Complement(not include transformer)	1 set
16	Lubrication station and Hydraulic station	Complement	1 set
17	Water treatment equipment	Complement	1 set



Before sale: design the suitable machine based on the specific demands

Medium sale:

1.Based on customer's demand to offer moderate quotation project 2.Accept customers to visit our factory

3.Help customer work out the schedule in china

After-sale:

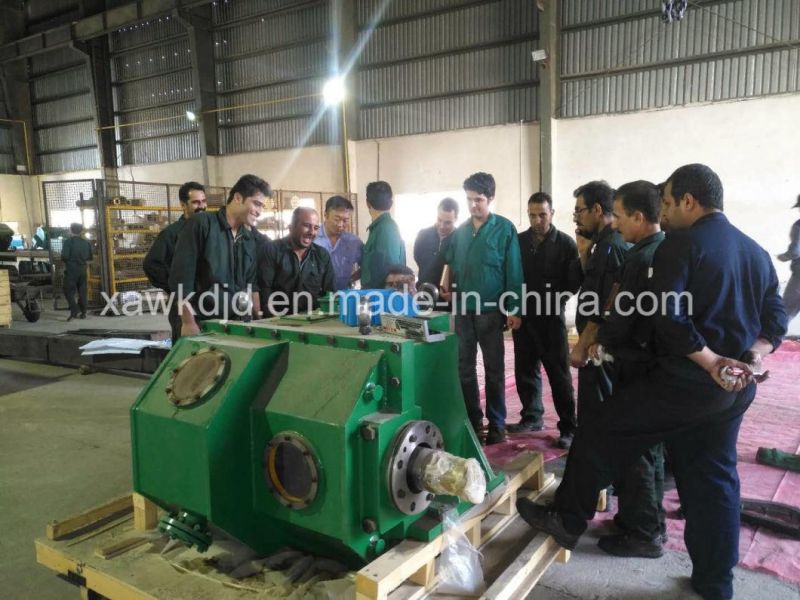

1.On-site training personnel 2.Appoint special aftersale service staff, arrived at the scene guide clients  installation and commission

Our Service :
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.* View our Factory.
* Perfect rolling mill solutions including rolling passes design, production line setup, and workshop layout     according to customer's requirements.
After-Sales Service
* Training how to instal the machine, training how to use the machine. Technical services and post-sale        technical supports.
* Professional engineers available for overseas installation and maintenance. .

Why Choose us?

1. Expert R&D team and Professional service staff
2. Turn-Key service , Perfect after-sales service ,
3. OEM , Reliable Manufacturer
4. Competitive price , Optimum quality product
5. Machines easy operation, Steady performance, Low energy consumption
6. Lower investment , minimize maintenance
7. Products are customized for different requires
8. Adjustable production capability
9. On-time delivery
10. Warranty Period

FAQ :

1Q: Are you a factory or trading company ?
1A: We are a factory.

2Q: Where is your factory located?
2A: Our factory is located in XI'AN City, SHAAXIProvince, China.

3Q: What should I provide if I`d love to customized the machine?
3A:You need to let us know what the raw materials used for the machine and the size of the  finished productan and the annual output.

4Q: What I should do if I just start to know roll forming machinery?
4A: Provide me with the same request

5Q: Can you make the machine according to my design or proto type?
5A: We can design the production plan according to the customer's request

6Q: How can I trust you that machines pasted testing running before shipping?
6A: We will accept customers' inspection of goods before delivery and accept the consignment

7Q: Do you provide installing and training overseas?
7A: We can provide overseas installation and training

8Q: How is your after sales support?
8A: The equipment motor is guaranteed for one year, except for vulnerable parts, it is guaranteed for 6 months

9Q:Do you have any Oversea Project?
9A: Yes, we have service overseas , such as Vietnam , Indonesia, India , Thailand , Iran , Ethiopia , Myanmar etc.

Customer reference :
Welcome to send us inquiry or your basic detailed requirements (such as expected production capacity per hour or per day, raw material you will use, size for thefinished products steel rebar, etc.), so that we can recommend you the most available steel rolling mill. As the professional manufacturer , we can try our best to support you, Welcome to visit our factory !
