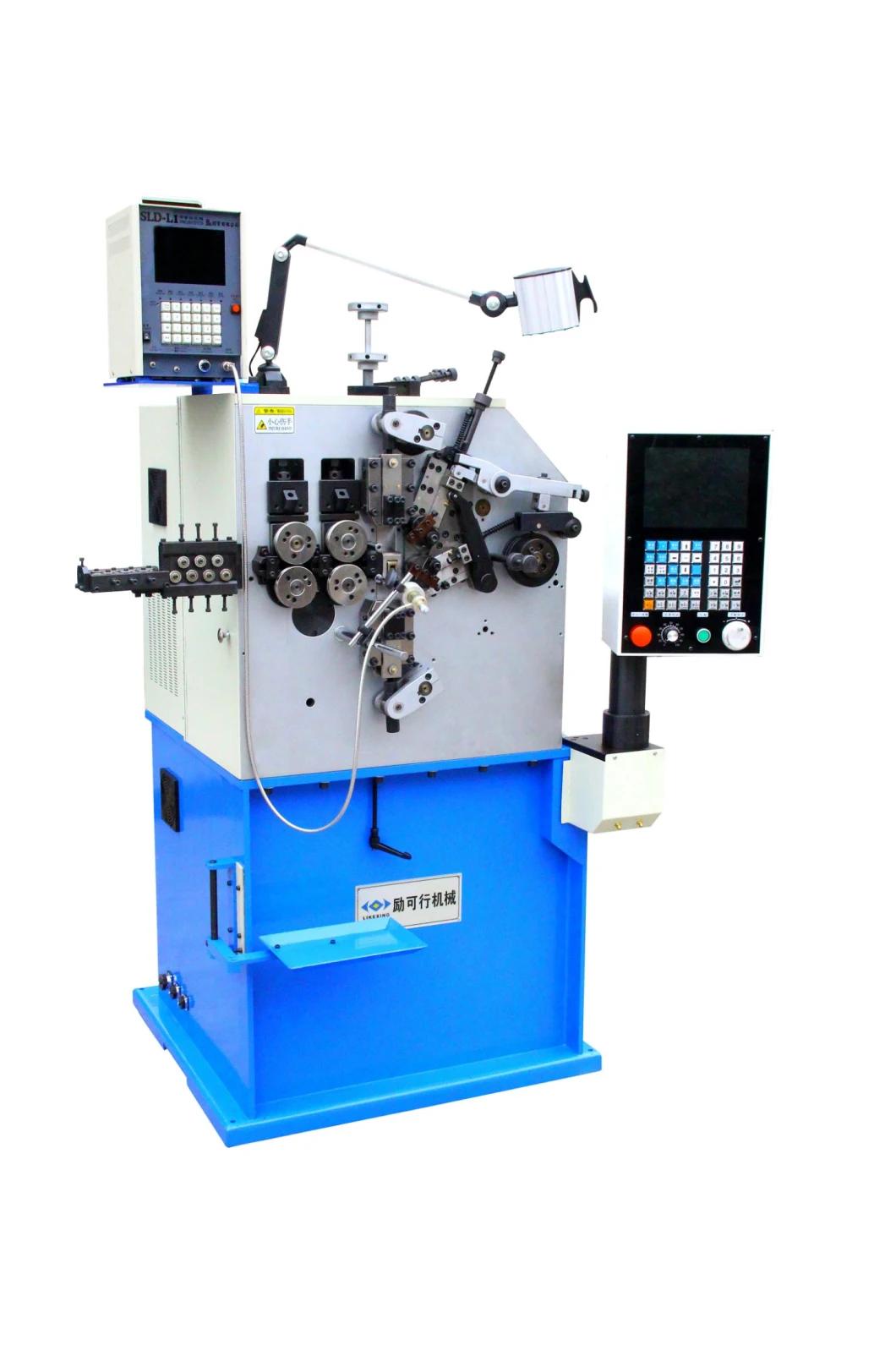

Lkx330 Spring Coiling Machine Produce O Ring Spring

Guang Dong LI KE XING Spring Machinery Technology Co., Ltd.
  • Control Type：Automatic
  • Axis Count：3 Axis
  • Warranty：ISO 9001:2015
  • Servo Motro：SANYO
  • Torsion：Simple Torsion Action Finished
  • Transport Package：Wooden Case

Base Info

  • Model NO.：LKX330
  • Specification：1400*1400*1700MM
  • Trademark：LIKEXING
  • Origin：Made in China
  • HS Code：84633000
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. LKX330 Specification 1400*1400*1700MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

LKX230 Computer Compressing Spring Machine is equipped with  imported Japanese Servo Motor, including cam axis and feeder axis, add pitch axis.
High synchronization accuracy, Power-full and precise in wire feeding.
Suitable for producing Compression spring, torsion spring ect. parts.
8inch digital touch screen with touch buttons, easy to use.
In High speed processing, when the motor is voerheating, the cumputer can detect and slow down to protect the motor itself automatically.
Can reduce or increase the production capacity at any time.

TECHNICAL PARAMETER

ModelLKX330
Wire diameter (mm)Ø1.0~Ø3.0
Axis Count3 Axis
Max feeding Lengthunlimited
Servo motor of wire feed (kw) 2.7
Servo motor of cam (kw) 2.7
The Fastest Speed250pcs/min
The Feeding Wire Speed6000m/min
Max  Outside Diameter70mm
Machine size(mm)1300×1300×1600
Machine Weight (Kg)1200
Power200V 3-Phase
