• Model NO.：BOBO
• Condition：New
• Transport Package：Wooden Case
• Origin：China
• Production Capacity：1000sets,Year

Summary

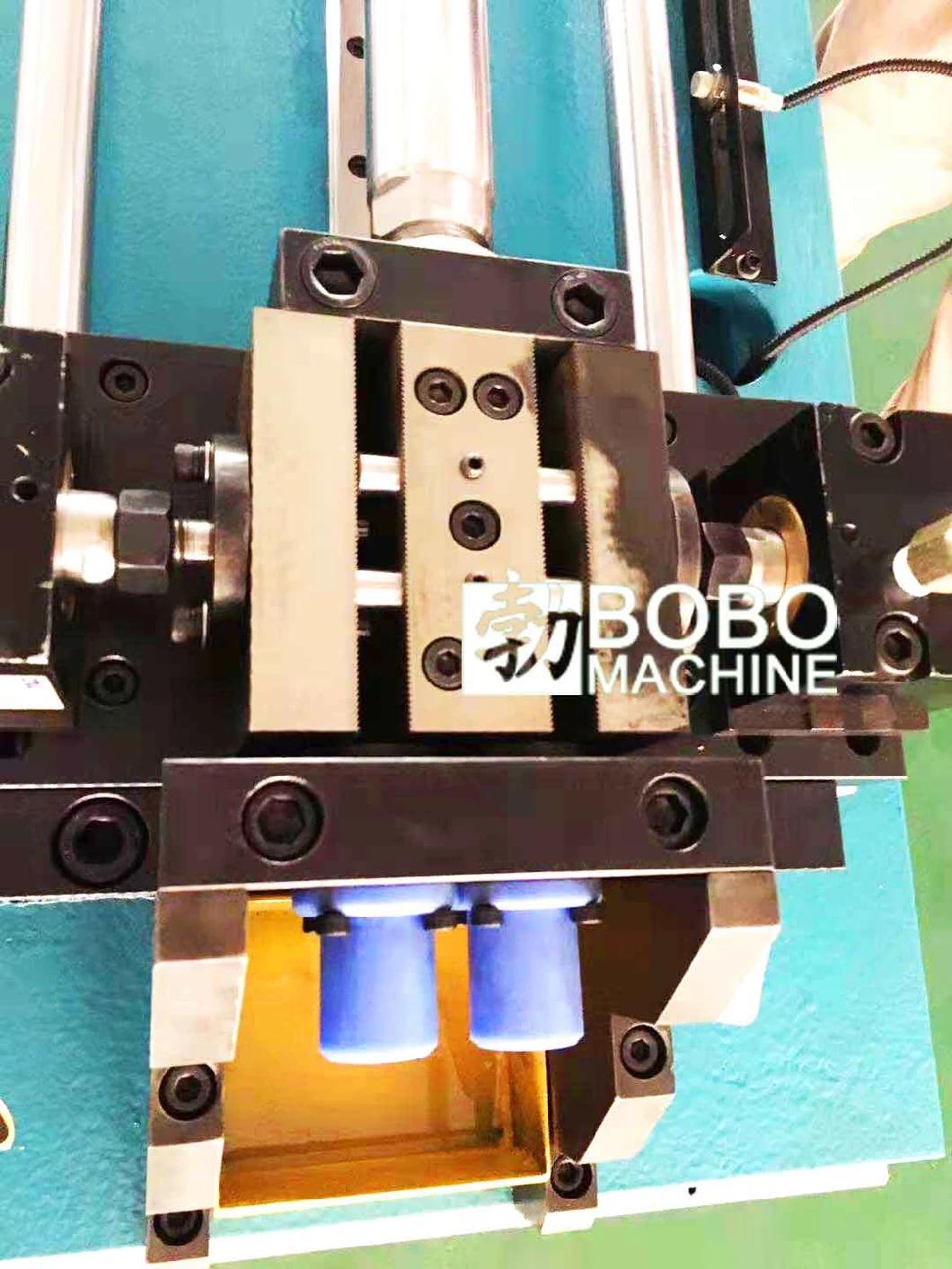

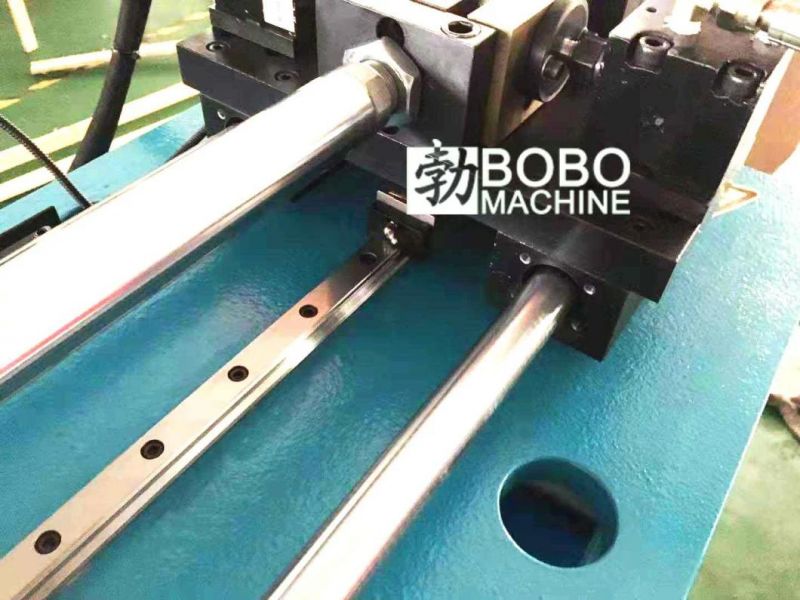

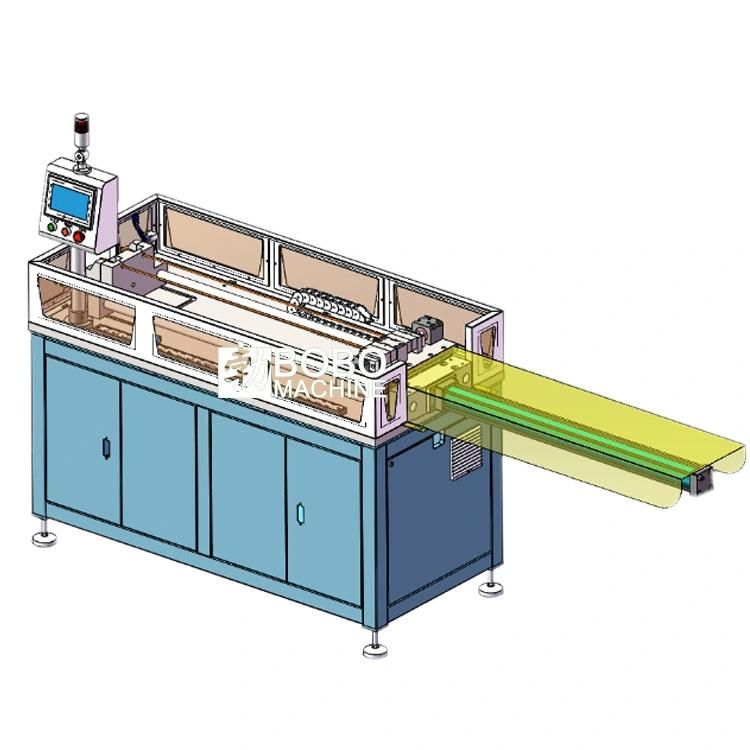

1. The machine is composed of a frame, a hydraulic pull pipe, a hydraulic clamping mechanism and an electronic control system. 2. Rack: the frame is welded by square steel pipe, which provides enough rigidity for the overall mechanism of the equipment. The frame is separated by distribution box, valve control box, hydraulic station box, etc. 3. Hydraulic drawing pipe and clamping mechanism: this mechanism is composed of mould seat, mould, hydraulic cylinder, guide rod, linear bearing, sliding table, hydraulic clamp, etc. The drawn copper pipe will pass through the mold and be inserted into the clamp on the sliding table for clamping. With the hydraulic cylinder driving the sliding table and the clamp moving to the right, the drawn copper pipe will be drawn long and thin. 4. Hydraulic clamping mechanism: the main body is composed of clamping cylinder, mold, mold seat, fixture bottom plate, etc. The semi-round hole of clamping mold is carved with anti-skid groove, and can be replaced with different pipe diameter products, convenient operation. 5, each part of the equipment parts according to the actual working conditions, the working environment for the necessary surface treatment, such as electroplating, blackening, quenching, carburizing, electrostatic spraying, etc., to meet the parts have enough strength and surface function. 6. The electrical installation box and valve control box of the equipment are fixed on the side of the frame bed. The electrical installation box has double doors for easy maintenance. The whole machine adopts PLC+ touch screen as the core controller, the control circuit should be equipped with overload protection function.


FAQ

1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.

2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc

3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc

4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.

5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
