Metallic Processing Machinery

Home > Product > Plasma Cutting Machine

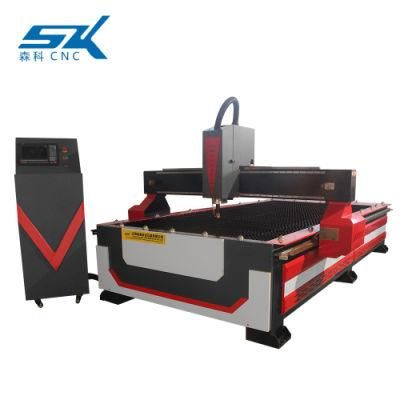

Good Quality Professional Metal Use Plasma Cutting Machinery CNC Router

Jinan Senke CNC Machine Co., Ltd.
  • Customized：Customized
  • Layout：4 Axis
  • Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
  • Automatic Grade：Automatic
  • Power Source：Electric
  • Cutting Mode：Plasma Cutting

Base Info

  • Model NO.：SKZ-1530
  • Model：Skz-1530
  • Function：CNC Plasma Cutting Machine
  • Working Area：1500*3000mm
  • Body Structure：Thicken Welded Steel Made Machine Body
  • Power：43A,63A,100A,120A,200A(as Work Needed)
  • Max Moving Speed：35000mm,Min
  • X Y Transmission：Rack Gear
  • Xyz Axis Driver：Stepper Motors and Lead Shine Drivers
  • Operating System：Start LCD Control
  • Working Voltage：380V,3pH
  • Working Dictate：G Code
  • Rails：Taiwan Hiwin Square Rails
  • Z Structure：Ball Screw
  • Machine Type：Plasma Cutting Machine
  • Drilling Head：Optional
  • Transport Package：Plywood Package
  • Specification：3.7*2.28*1.75M
  • Trademark：Senke
  • Origin：Shandong China
  • HS Code：8456401000
  • Production Capacity：200sets,Month

Description

ItemValueModelSKZ-1530Working area (X*Y) 1500*3000mm Body structureThicken Welded steel made machine bodyX, Y StructureGear rack railsTaiwan HIWIN square railsZ StructureTaiwan TBI ball screwX, Y Resolution<0.01mmMax Moving Speed 20000mm/minMax Cutting Speed80000mm/minXYZ traveling positioning accuracy±0.01mmXYZ repositioning accuracy±0.01mmPlasma power(Huayuan) 100A plasma powerVoltage380v, three phaseDrive typeServo optionalWorking  Dictate       G CodeOperating systemStart control systemsoftwareOriginal Fastcam/StarCAMoil lubricator Yes, includedWire protectYes ,includedRunning Environment Temperature: -10ºC~45ºCAfter packed sizeAbout 3.7*2.28*1.75M(L*W*H)G.W 1400kgs

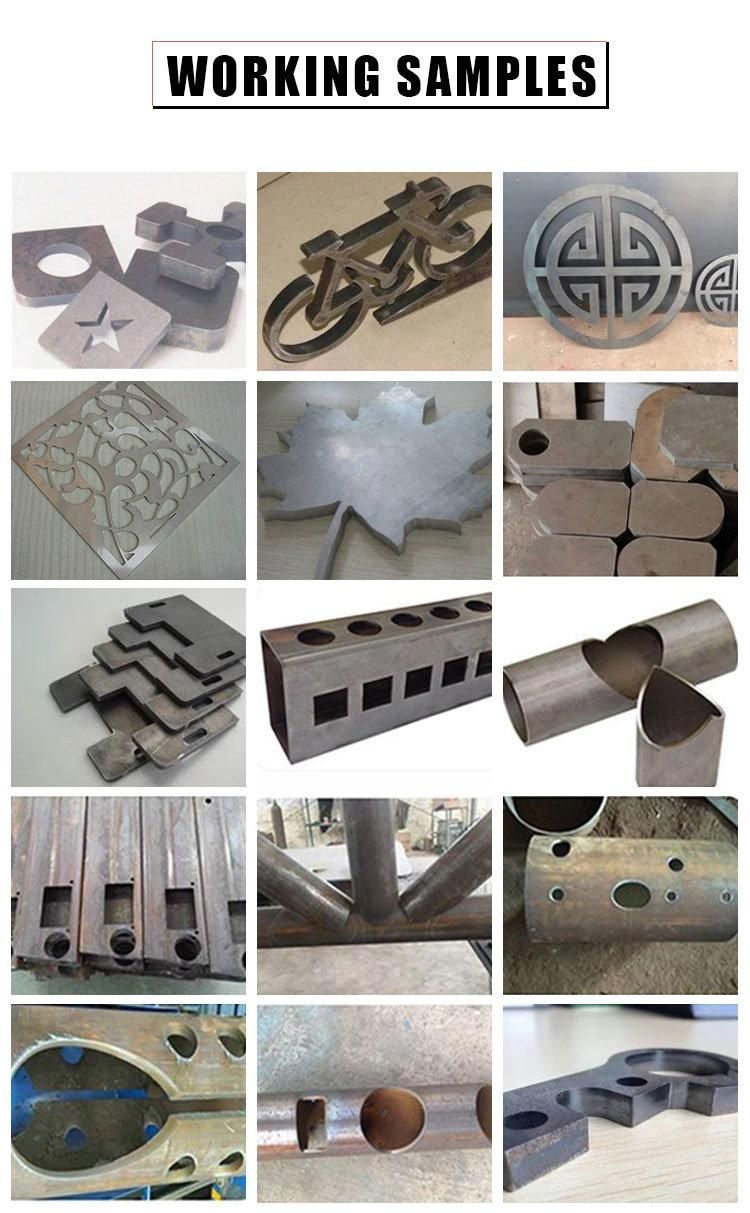

 Samples

Good Quality Professional Metal Use Plasma Cutting Machinery CNC Router
Application
Good Quality Professional Metal Use Plasma Cutting Machinery CNC RouterPacking & Delivery
Good Quality Professional Metal Use Plasma Cutting Machinery CNC Router
CertificationsGood Quality Professional Metal Use Plasma Cutting Machinery CNC Router
WARRANTY & AFTER SERVICE
Good Quality Professional Metal Use Plasma Cutting Machinery CNC Router
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking /engraving and the depth of MARKING/ ENGRAVING.

Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.

Q4: What's consumables of laser marking machine?
A: It does not have consumable. It's very economical and cost effective.

Q5: What's package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.

Q6: What's delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.

Q7: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.

Q8: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
