Common Nail Concrete Nail Blind Rivet Nail Duplex Nail Making Machine Manufacturer

Wuxi Shenda Nail Machinery Factory
  • After-sales Service：Machine Operating Video and on Line Training Video
  • Warranty：1 Year
  • Transport Package：Plywood Cases
  • Specification：1440*1040*1270mm
  • Trademark：Shenyida
  • Origin：Wuxi China

Base Info

  • Model NO.：Z94
  • HS Code：8463300000
  • Production Capacity：100PCS,Month

Description

parameterunit Z94-1CDia of nail maxmm1.6Dia of nail minmm0.9Length of nail maxmm25Length of nail minmm9Dsigned output pcs/min480-520Moter powerkw0.8Speedpcs/min1380Weight(approx)kg600Overall dimensionsmm1000x750x1000Common Nail Concrete Nail Blind Rivet Nail Duplex Nail Making Machine ManufacturerNail making Auxilary equipment:

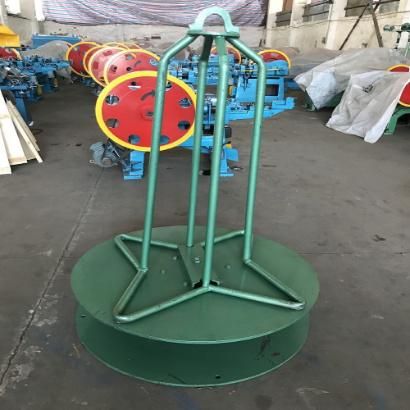

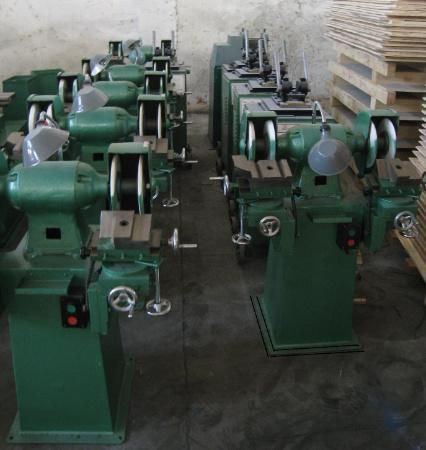

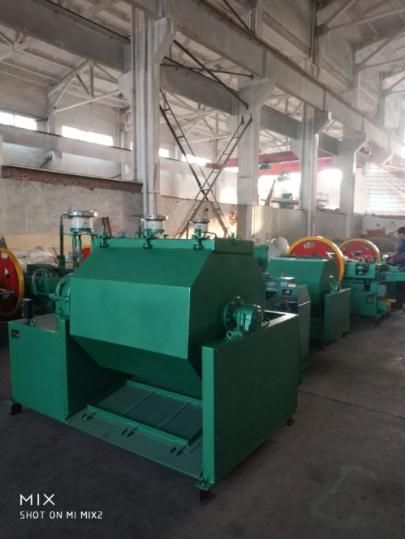

1.Wire reel      2.Nail cutter grinder     3.Nail polish machine
 Common Nail Concrete Nail Blind Rivet Nail Duplex Nail Making Machine ManufacturerCapacity:300-500kg      &  800-1000kg

Diamention :1000*1000*1750mm
Common Nail Concrete Nail Blind Rivet Nail Duplex Nail Making Machine ManufacturerMotor Power:0.75kw
Roration :2850r/min
Diamension :1010*690*1120mm Common Nail Concrete Nail Blind Rivet Nail Duplex Nail Making Machine ManufacturerTechnical dateSD-400SD-600SD-1000SD-2000Capacity400kg600kg1000kg2000kgMotor Power3kw4kw5.5kw7.5kwOverall size1640*900*1000mm1800*1000*1100mm2000*1500*1400mm2500*1500*1600mm



Common Nail Concrete Nail Blind Rivet Nail Duplex Nail Making Machine Manufacturer




Company certificate
Common Nail Concrete Nail Blind Rivet Nail Duplex Nail Making Machine Manufacturer
Packing&Shipping
Common Nail Concrete Nail Blind Rivet Nail Duplex Nail Making Machine Manufacturer

FAQ:
QUESTION1:Do we need wire drawing machine when nail making?
A1:Option:1.we could buy the drawed wire from wire factory and then start nail making by our nail making machine
Option 2:we can buy raw material with diameter 6.5mm/6.0mm/5.5mm and drawed to smaller diameter by our wire drawing machine before nail making.

QUESTION2:How many ton does one machine make per day
A2:The output for each model nail machine by pcs/min.So the weight is diffent if diameter and length different.We can calculate if you supply all size

QUESTION3:How can you guarranty the machine quality?
A3:All machine with 12 month guarranty as soon as machine arrive customer.And we can easy to guide our customer to operate and maintain the nail making machine

QUESTION4:How many days for the machine delivery?
A4:Usually there will need 10days for normal machine ,And if the machine order order to make will take a bit long time .Because normal model machine we have stock for sale.
