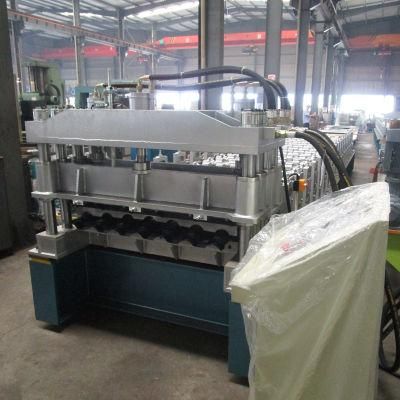

• Model NO.：Tile Roll Forming Machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Coil Thickness：0.5-0.6mm
• Main Power：5.5kw
• Diameter of Shaft for Rollers：72mm
• Voltage：380V,50Hz,3phase
• Roller Grinder Milling：Cr12 Mould Steel with Quench Treatment
• Control System：Mitsubishi PLC
• Transport Package：40gp
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：Hangzhou
• HS Code：84552210
• Production Capacity：10sets,Month

Our Advantages

Product Parameters



ItemSpecificationMaterialTypeColor steel sheetThickness(mm)0. 5 -0. 6Yield strength(mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 1500-2000mm/min or 4-5m/min. For optionStep distanceAdjustable according to requirement (>=250mm)Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurement EncoderControl mode Mitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power(kw)5.5KW    (Depend on final design)Hydraulic station power 5.5K W   (Depend on final design)Total power(kw)11KWUncoiler's loading capacityMax. Capacity: 5000kgs
(can be increased to be 10T)Machine`s sizeAbout 8.7*2.04*1.6m  (Depend on final design)Machine weightAbout 8500kgs
Components of machine:Decoiler1set   Feeding & guiding device1setMain roll forming machine1setPressing device1setHydraulic cutting system1setControlling system1setRun out table 1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Pressing--Hydraulic Cutting - Product to Run Out Table
