• Model NO.：STC-CUT40
• Certifications：GS,CE,EMC,RoHS,UL.
• Features：Cutting Thickness: 12mm
• Efficiency：85%
• Transport Package：Colour Box, BMC, Carton Box
• Specification：Current Range: 10-40A
• Trademark：OEM, ITC
• Origin：Jiangsu, China
• HS Code：8504401500
• Production Capacity：3000000PCS

Basic Info.

Model NO. STC-CUT40 Certifications GS/CE/EMC/RoHS/UL. Features Cutting Thickness: 12mm Efficiency 85% Transport Package Colour Box, BMC, Carton Box Specification Current Range: 10-40A Trademark OEM, ITC Origin Jiangsu, China HS Code 8504401500 Production Capacity 3000000PCS

Product Description

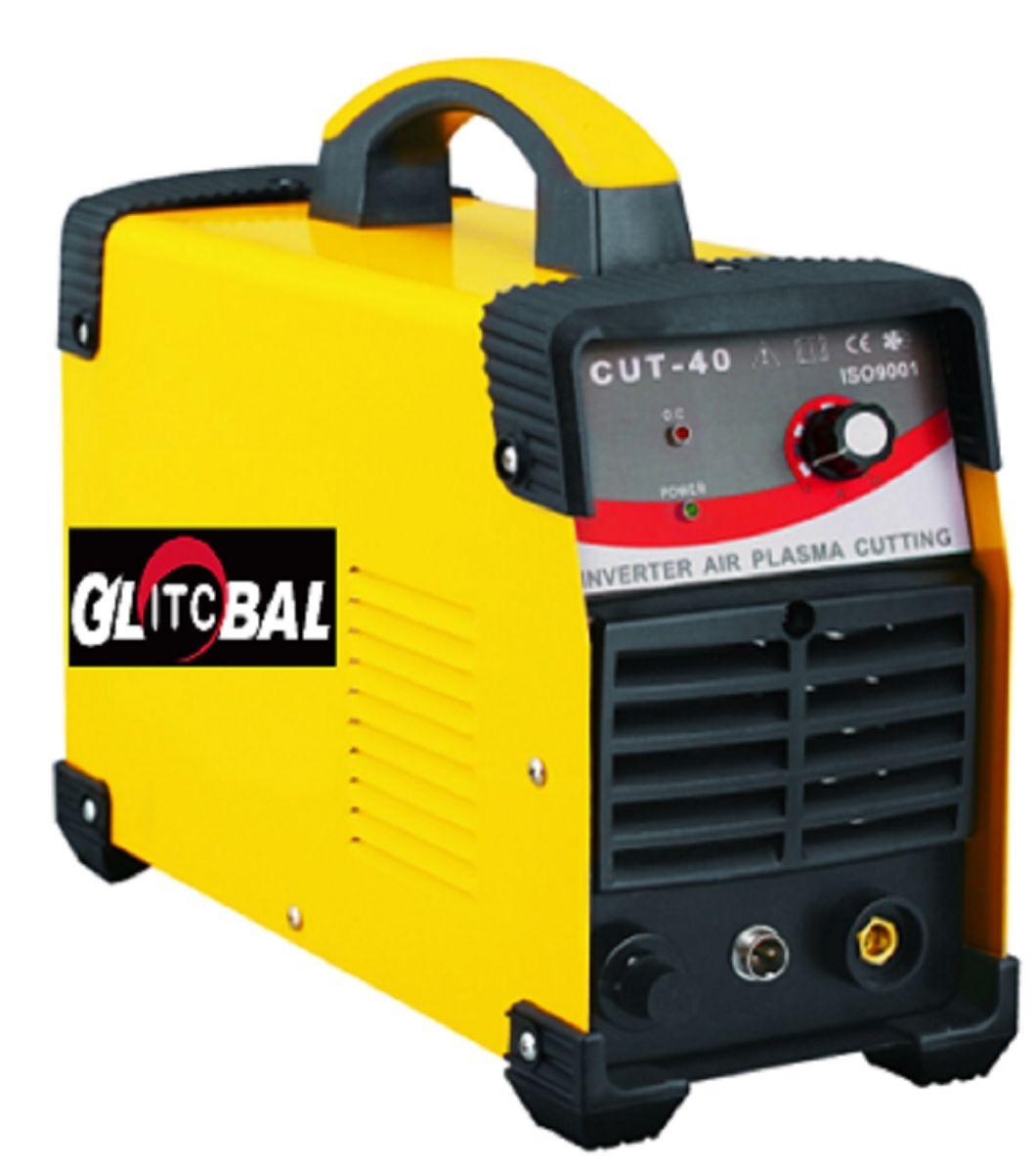

Stride Across Tool Plasma Cutter 40Amps AC220V Voltage Compact Metal Cutter AC 1/2" Clean Cut Inverter Cutting Machine

Certifications :GS/CE/EMC/ROHS/UL.


Input Voltage:	1PH 230V-240V;110V-120V.
Frequency:	50-60HZ
Rated Input Capacity:	4.8KVA
Current Range:	10-40A
Power Factor:	Cosφ0.93
Max No-Load Voltage:	230V
Efficiency :	85%
Rated Duty Cycle :	60%
Cutting Thickness:	12mm
Insulation Class:	H
Protection Degree :	IP21S

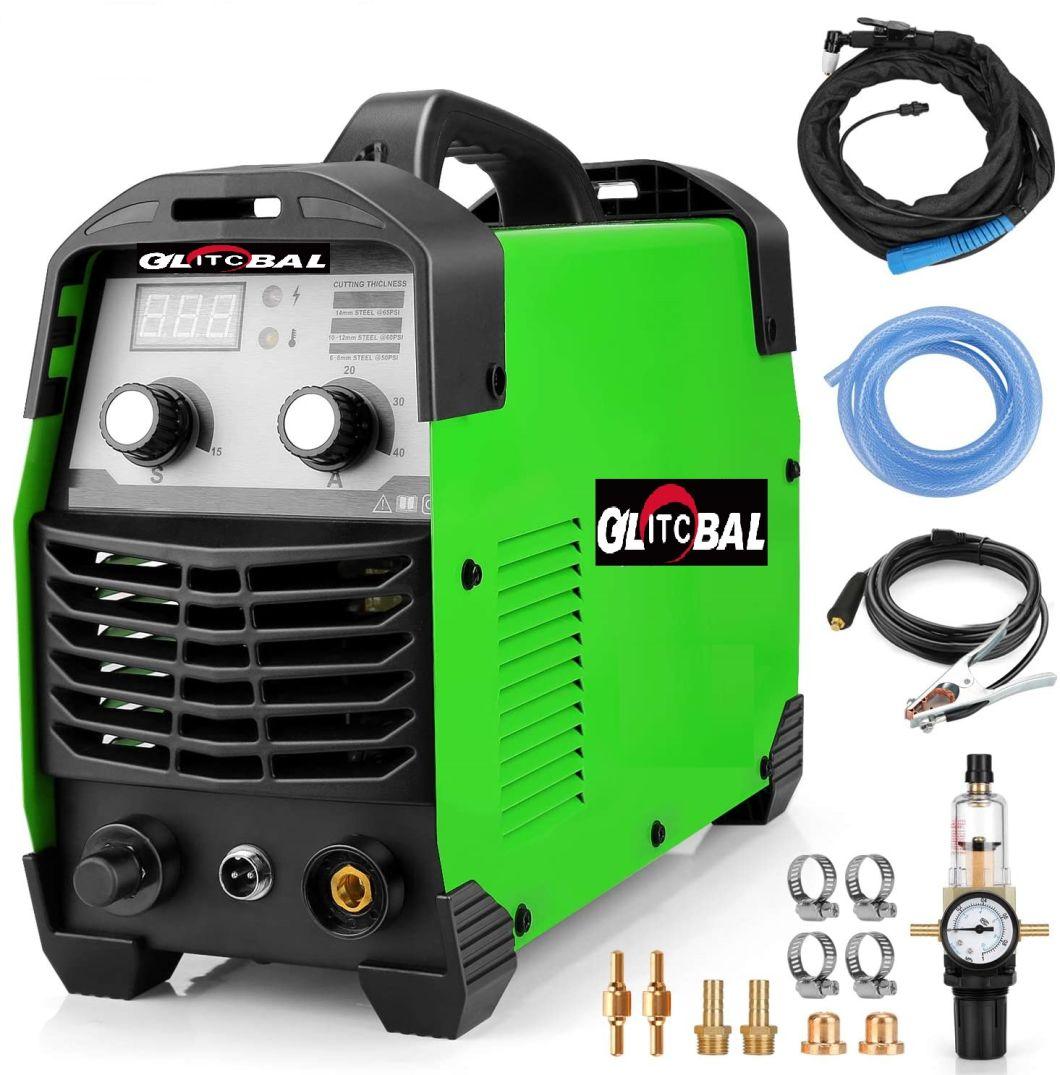

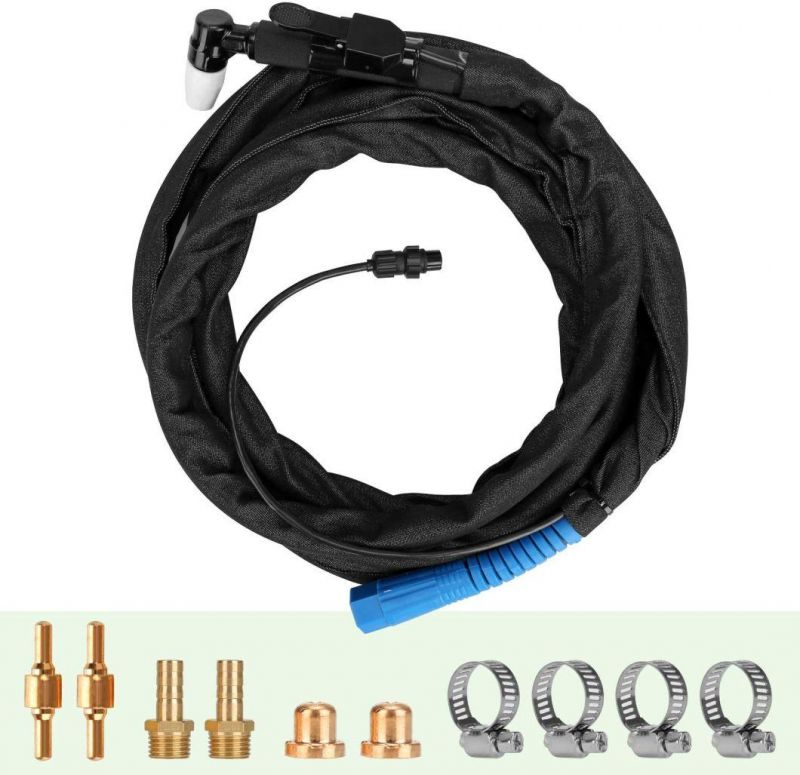

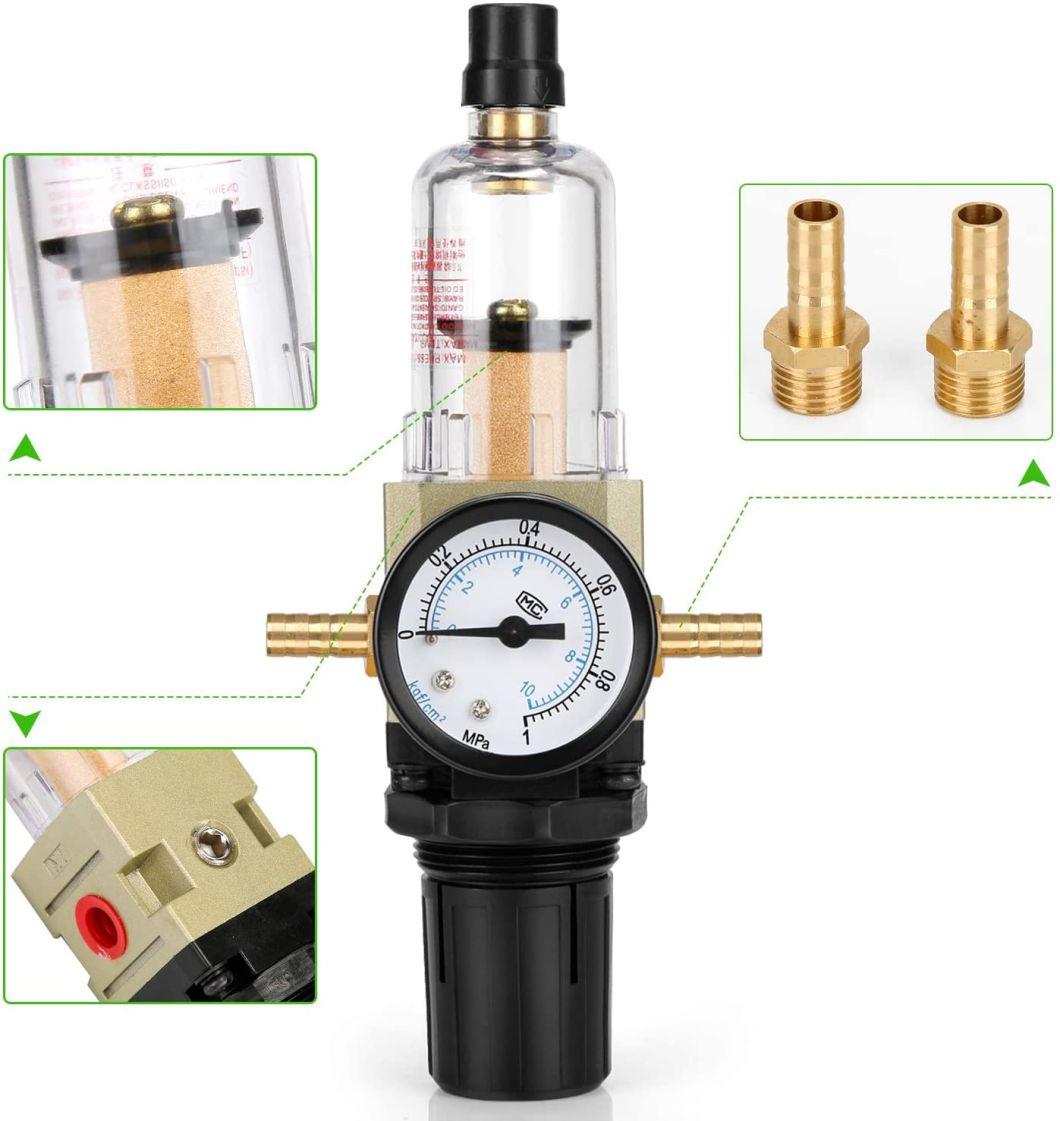

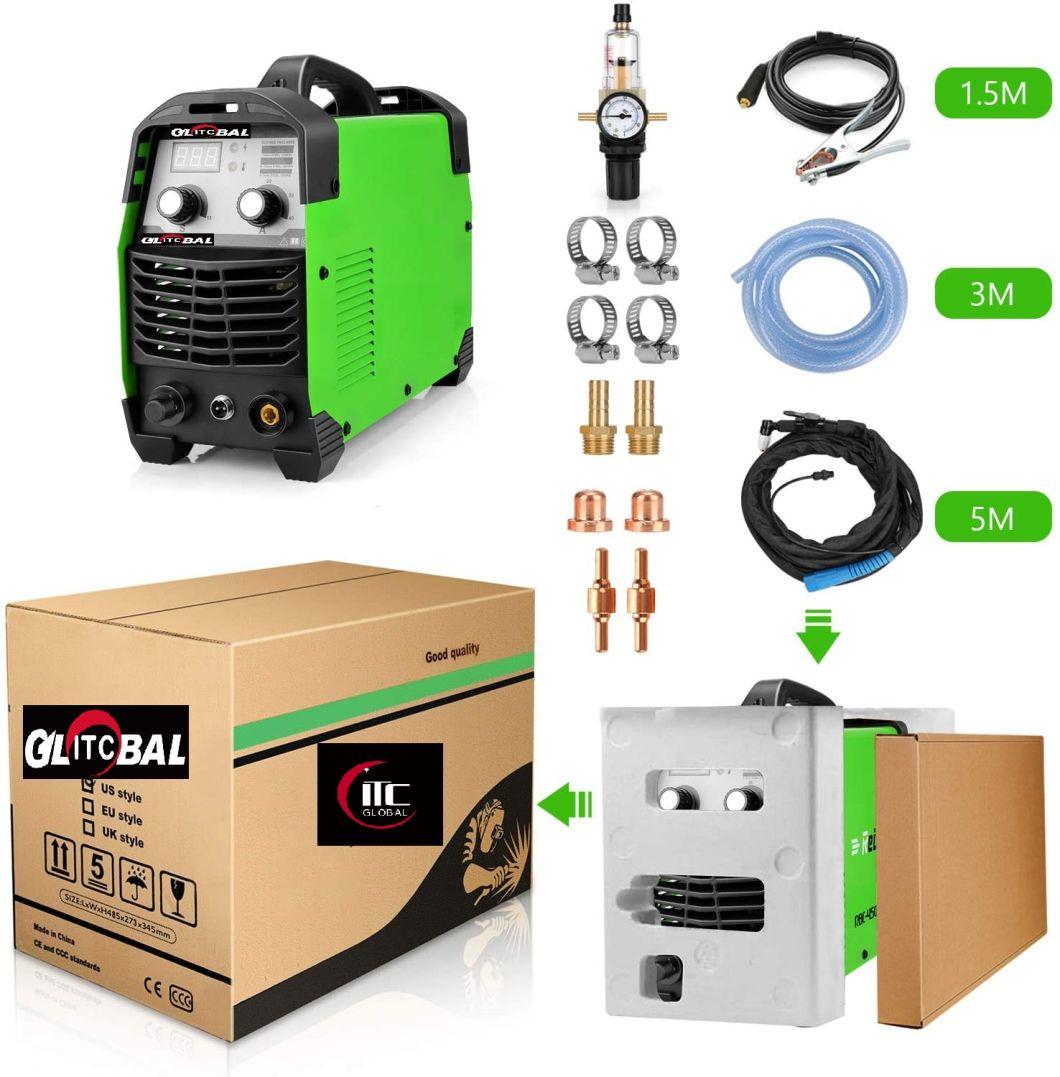

Accessories :	1.(4m) plasma torch x1pc                                          2. (2m) earth cable with clamp x1pc                     3.Oil-water separator x1 set                              4.Hand-held shield x1pc                                  5.Hammer/brush x1pc

Descriptions :

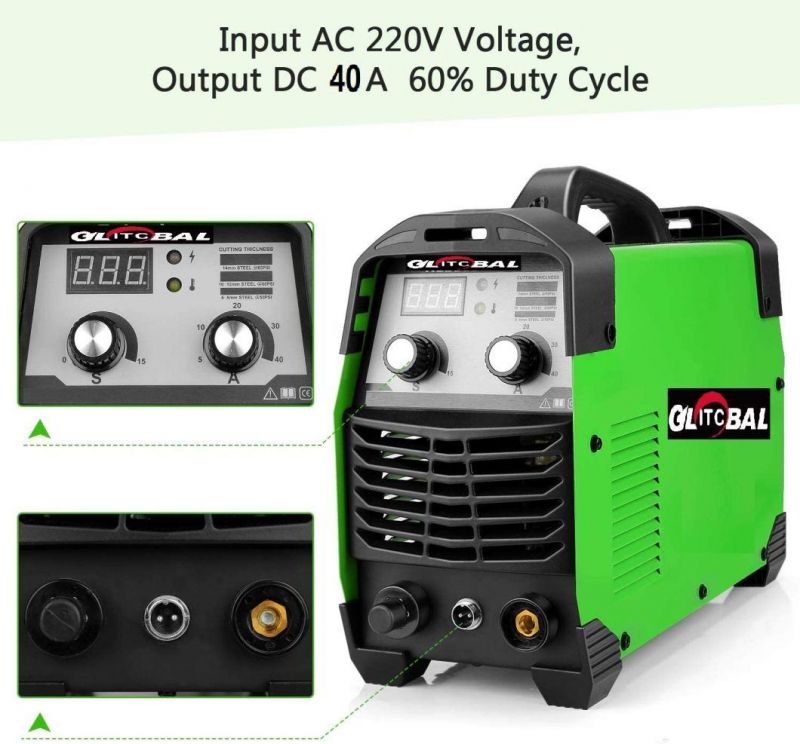

• 1, 220V DC Voltage 40A output 60% Duty Cycle Air Plasma Cutter

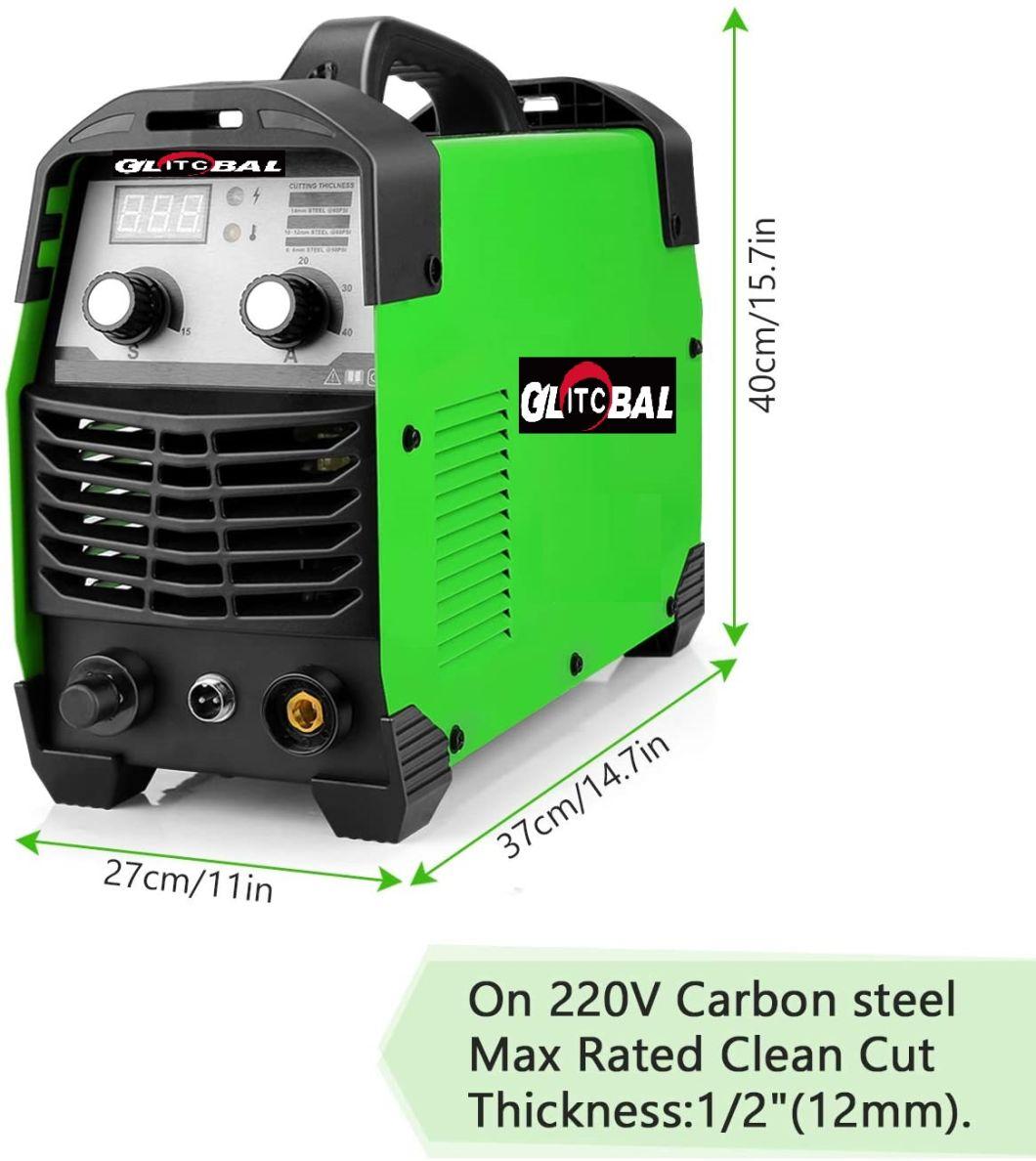

• 2, Max Rated Clean Cut Thickness: 1/2"(12mm). Max Severance Thickness: 3/4"(15mm)

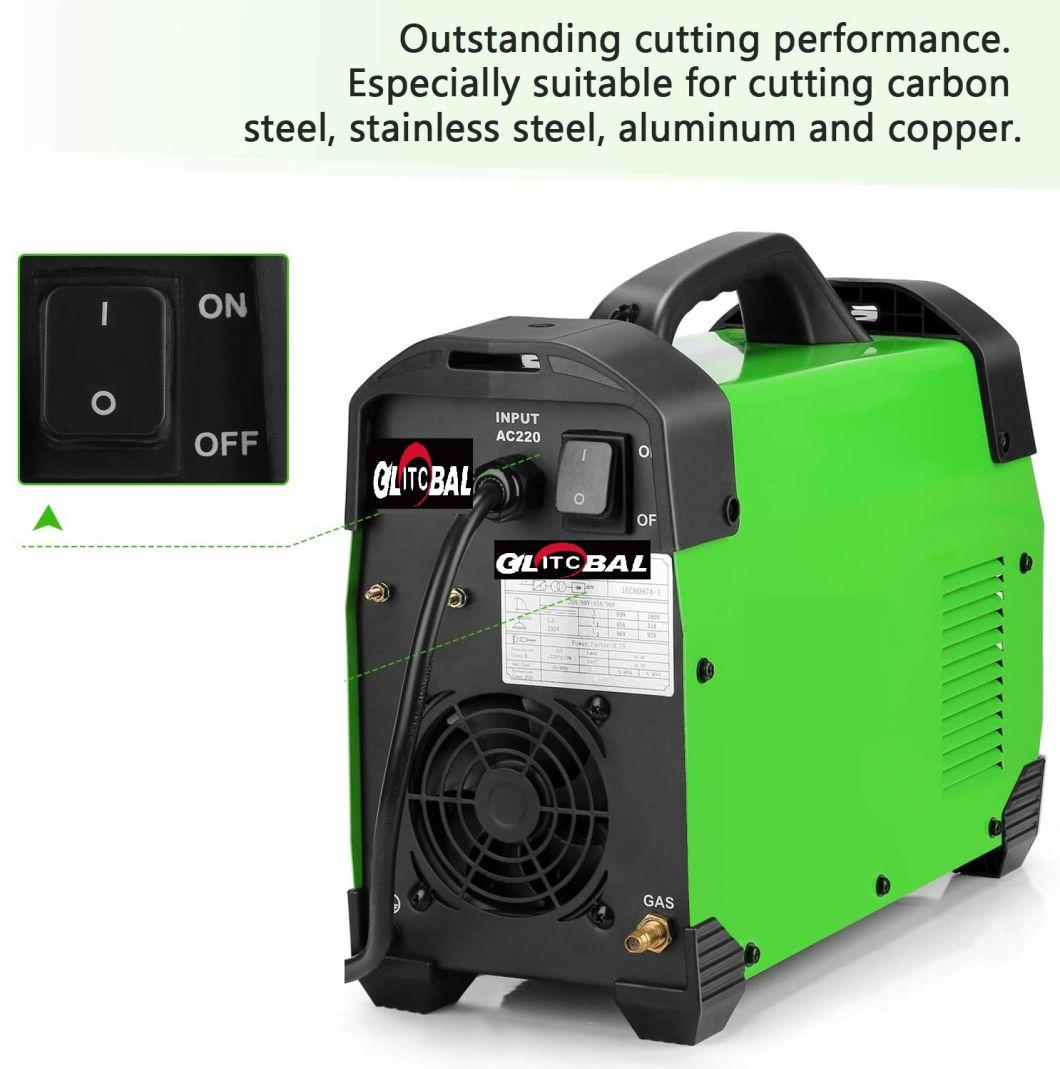

• 3, Cutting Material: Stainless steel, Alloy steel, Mild steel, Copper, Cast Iron and Chrome.
• 4, Air Pressure 60-70PSI.
• 5, Buy with Confidence Of 1 Year Limited Warranty(After the date received our goods).
