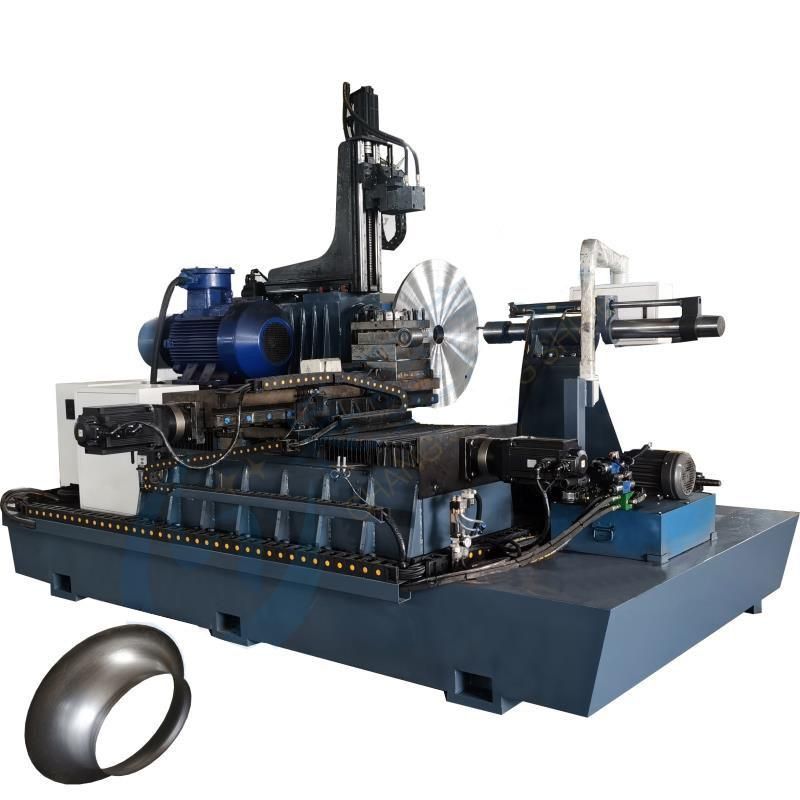

2021 Latest High Quality Fan Parts Ventilation Parts CNC Metal Spinning Machine Dading
Guangdong Dading Hardware Machinery Co., Ltd.- After-sales Service:Free Mechanical Accessories
- Warranty:1year
- Structure:Horizontal
- Spinning Strength:High Power Spinning
- Pressure Supply Type:CNC
- Spinning Direction:Forward
Base Info
- Model NO.:DD-XY-2000-A
- Metal Material:Iron
- Riveting Principle:Radial Models(JM Series)
- Spinning Deformation Condition:Cold Spinning
- Spinning Belt Wheel Type:Cold Spin
- Spinning Wheel Number:Double
- Finished Product:Improve Air Circulation
- Finished Product Shape:Cylinder Shape
- Specification:3200x3800x2000
- Trademark:changsheng
- Origin:Guangdong, China
- Production Capacity:10
Description
Basic Info.
Model NO. DD-XY-2000-A Metal Material Iron Riveting Principle Radial Models(JM Series) Spinning Deformation Condition Cold Spinning Spinning Belt Wheel Type Cold Spin Spinning Wheel Number Double Finished Product Improve Air Circulation Finished Product Shape Cylinder Shape Specification 3200x3800x2000 Trademark changsheng Origin Guangdong, China Production Capacity 10Product Description
Product Description:
1. It has the function of mature CAD drawing and programming software. The motion track of the spinning wheel can be straight line, arc, multi arc connecting line and combined curve, which are input into the computer for pass standardized programming.
2. The operator can input the process parameters and spinning passes through the keyboard and operation panel, and can edit, store and call them at will.
3. It has the "copy" protection function of the outline of the core mold, that is, the spinning wheel will not collide with the core mold during process adjustment and recording back teaching.
4. In the automatic program of the machine tool, the feed speed and spindle speed can be suspended. The software and hardware limit detection and control functions are set.
5. It has the functions of automatic fault detection, automatic diagnosis and overload protection for each unit.
6. According to the requirements of users, various parts with special shapes can be spun to ensure that the relevant dimensions such as workpiece shape, diameter and thinning rate meet the requirements.
7. It can finish trimming, flanging, crimping, necking, rolling and other functions in the same machine tool.
name parameter name parameter
Power type AC 380V three-phase four wire
Maximum spinning product diameter one thousand and eight hundred
Spindle speed 0-500 rpm
Spinning thickness (iron plate) 1-5MM
air pressure 0.5-0.8Mpa
Spinning thickness (aluminum plate) 1-8MM
Spindle center height 750MM
Spinning thickness (stainless steel plate) 1-3MM
Axial stroke 500mm
Maximum spinning product height four hundred and fifty
Radial stroke 750MM
Pressing force hydraulic pressure
Tail top stroke 450mm
Control system Keyuan / Kandi
positioning accuracy 0.05mm
Spinning structure horizontal
Automatic refueling system AC220V 25W1
Warranty period 1 year
Installable tool position 6 bits X-axis thrust 160kn
Input mode Handwheel / CAD Guide
Y-axis thrust 160kn
Appearance dimension of equipment 3000x4200x1800
Tailstock thrust 3115kg
Mold installation Connecting flange
supply voltage 380V +5% 5HZ
Equipment weight 14000KG
tool carrier 6-position heavy duty turret
Drive type servo
XY axis moving speed 3M/min
Purpose: the machine is suitable for lamps, cookers, handicrafts and other industries. It can complete the batch production of barrel type, cone type, parabola type, horn type, warhead type and other products.
