Gi Welded Wire Mesh Making Machine (ROLLS)
Anping County Hengtai Wire Mesh Machine Produce Co., Ltd.- Type：Welded Wire Mesh Machine
- Voltage：380V
- Style：Horizontal
- Warranty：1 Year
- 3ton：440V ,380V 50Hz
- Wire Diameter：0.8-2.5mm
Base Info
- Model NO.：HT-1500
- Welding Width：600-2000mm
- Rated Capacity：65kvax4
- Dimensions：3350X1800X1400mm
- Certification：ISO9001

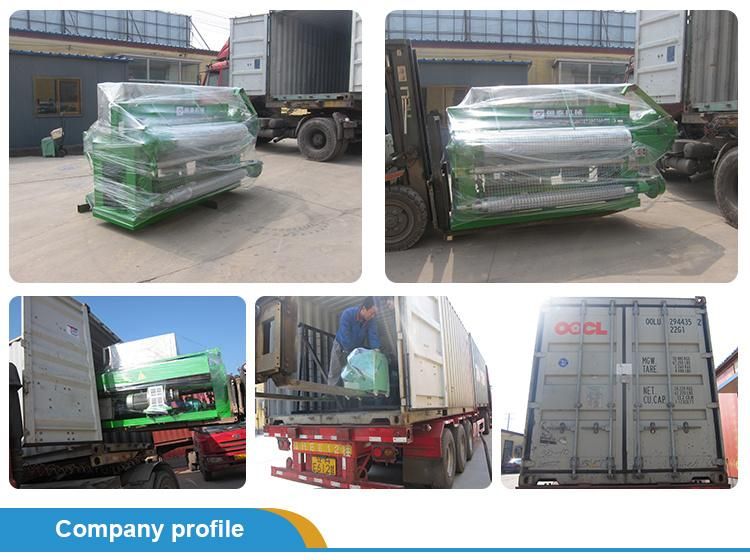

- Transport Package：Plastic Bag, Also Can Made as Your Request
- Specification：wire diameter: 0.8-2.5mm
- Trademark：hengtai
- Origin：China
- HS Code：8463300000
- Production Capacity：18 Sets,Month
Description
Size of mesh (mm)
12.7-101.6 (1/2"-4")
Width (mm)
914.4-1219.2 ( 12"-48")
Diameter of wire (mm)
Dia.0.63-Dia.2 ( BWG23-BWG14)
Max. rolled net size (mm)
120 (400')
Welding speed ( mesh/minute)
65 ( radia)
Power
380/220V
50-60HZ
50KWAx4
Outside size(mm)
2600x1700x1350

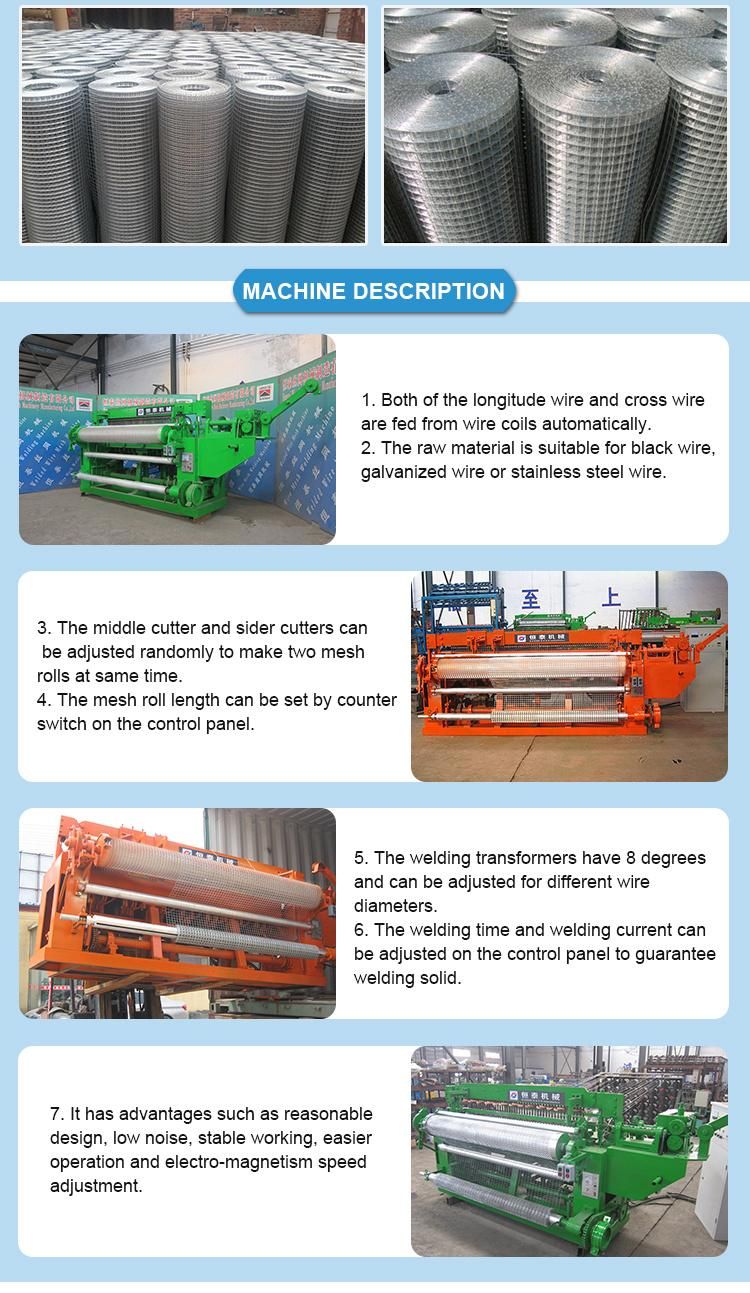

Peculiarity: Big box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh of big width & wire dia.
Size of mesh (mm)
25.4-152.4 (1"-6")
Width (mm)
1219.2,1524,1828.8 (48", 60", 72")
Diameter of wire (mm)
Dia.1.07-Dia.2 ( BWG19-BWG14)
Max. rolled net size (mm)
91.4m (300')
Welding speed ( mesh/minute)
45 ( radia)
Power
380/220V;50-60HZ;50KWAx6
Outside size(mm)
3350x1800x1400
Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity. Used for welding net of wire diameter 0.45, diameter 1.07, mesh 1/4" -1/2".
Size of mesh (mm)
6.35-12.7 (1/4"-1/2")
Width (mm)
914.4-1219.2 (12"-48")
Diameter of wire (mm)
Dia.0.45-Dia.1.07 ( BWG25-BWG19)
Max. rolled net size (mm)
120m (400')
Welding speed ( mesh/minute)
75 ( radia)
Power
380/220V;50-60HZ;50KWAx4
Outside size(mm)
2350x1820x1700
