• Model NO.：QC12Y6*3200 E10

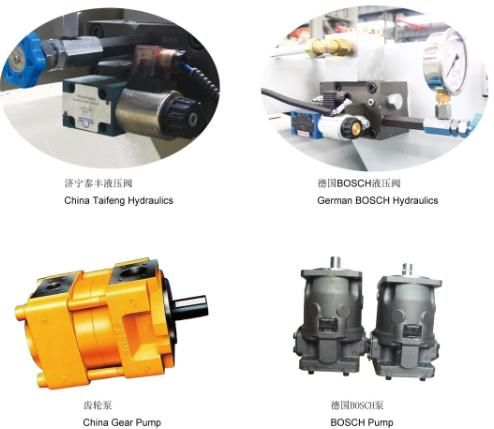

• Hydraulic Valve：Rexroth
• Pump：Sunny
• Controller：E21s
• Blades：Jinshan
• Pipe Connector：Emb
• Ball Screw：Hiwin
• Transport Package：Plastic Cover
• Specification：CE
• Trademark：ZYMT
• Origin：China
• HS Code：8462219000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. QC12Y6*3200 E10 Hydraulic Valve Rexroth Pump Sunny Controller E21s Blades Jinshan Pipe Connector Emb Ball Screw Hiwin Transport Package Plastic Cover Specification CE Trademark ZYMT Origin China HS Code 8462219000 Production Capacity 3000 Sets/Year

Product Description

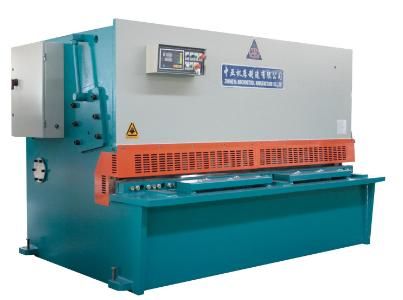

QC12Y-6X3200 E10 Shearing Machine:

Details:
Cutting thickness: 6mm;
Cutting length 3200 mm;
Cutting angle: 1 deg; 30'
Hold downs: 12 PC.
RAM travel: 12 times/minute
Throat depth 150 mm;
Back gauge travel: 750mm
Motor: 5.5 KW.

1. The mainframe is fitted with numeric-control system special for shearing machines;
2. The position of rear stopper is displayed in a real-time manner;
3. Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper;
4. It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters;

5. Imported ball bearing lead screw and linear guide rail are used, to ensure the positioning precision, so that the processing precision of machine is higher;
6. Ball screw and line guide rail as optional for guarantee higher precision;
7. NC controller: China E20, Holland DELEM DAC310; [ Guarantee the machine precision in 0.15mm]
8. Digital display control: China E10-S.




Our service.
1:established over 100 sales and service outlets in the country's 29 provinces, municipalities and also the establishment of foreign 72 sales points, machine sales, spare parts supply, maintenance, technical advice and a range of services for users at hone and abroad.
2:we have a specialized group in charge of the whole business process. pre-sales to be a staff, the sales is a friend, and after-sales we are partners.

Certifications:
