• Model NO.：MT1300
• Material Width：400-1300 mm
• Material Thickness：0.3-2 mm
• Material Inner Diameter：508±0.2 mm
• Material Outer Diameter：1200 mm
• Material Weight：3-15 T
• Feeding Speed：15 M,Min
• Coil Expansion：Hydraulic
• Mechanical Weight：1.4-2.5 T
• Origin：China
• HS Code：8479819000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. MT1300 Material Width 400-1300 mm Material Thickness 0.3-2 mm Material Inner Diameter 508±0.2 mm Material Outer Diameter 1200 mm Material Weight 3-15 T Feeding Speed 15 M/Min Coil Expansion Hydraulic Mechanical Weight 1.4-2.5 T Origin China HS Code 8479819000 Production Capacity 100 Sets/Month

Product Description

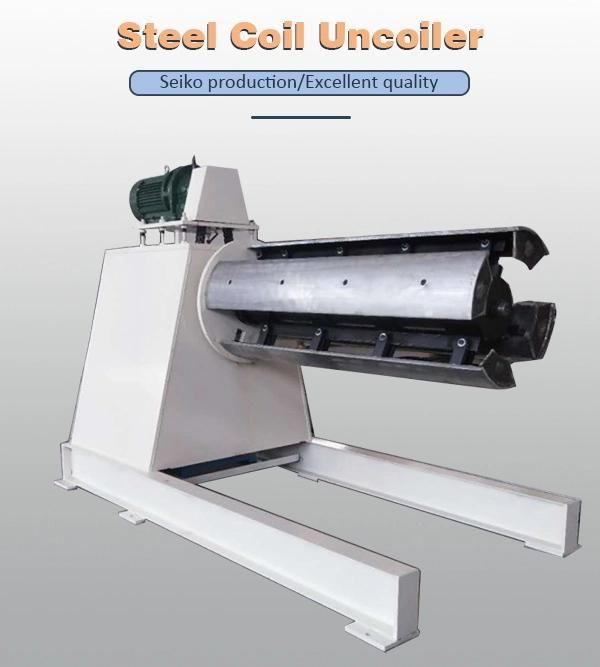

High-Quality Load 3-15 tons Steel Coil Uncoiler Introductions:

The uncoiler is a special equipment for metal sheet leveling. It is used for leveling steel plates and uneven sheets. It can be composed of uncoiling, leveling, shearing production lines and other sheet product production lines according to relevant configurations. The body is a welded box-shaped structure, and the variable frequency speed regulation motor drives the reel shaft to provide the main power for the uncoiler after decelerating through the gear box. Suitable for machinery, vehicles, metal products, household appliances, steel structures, decoration and other industries.

The main shaft of the decoiler has two functions, one is to drive the coil to rotate; the other is to support the tension of the coil. The realization of tightening is usually accomplished by the oil cylinder or cylinder installed with the main shaft to push the inclined slider. Small units use cylinders, and large units use oil cylinders. The realization of rotation is usually accomplished by the motor driving the main shaft to rotate through the reducer. The oil cylinder or air cylinder installed on the main shaft should rotate together with the main shaft, and the oil cylinder or air cylinder needs to be connected to one end of the working medium pipeline, and the other end of the pipeline should be connected to the hydraulic station or solenoid valve.


Features:

The uncoiler is one of the essential and important equipments in the welded pipe production line. One of its functions is to support the steel coil by tightening the inner hole of the steel coil; into the leveler. Therefore, the performance of the uncoiler has a crucial impact on the entire production line.

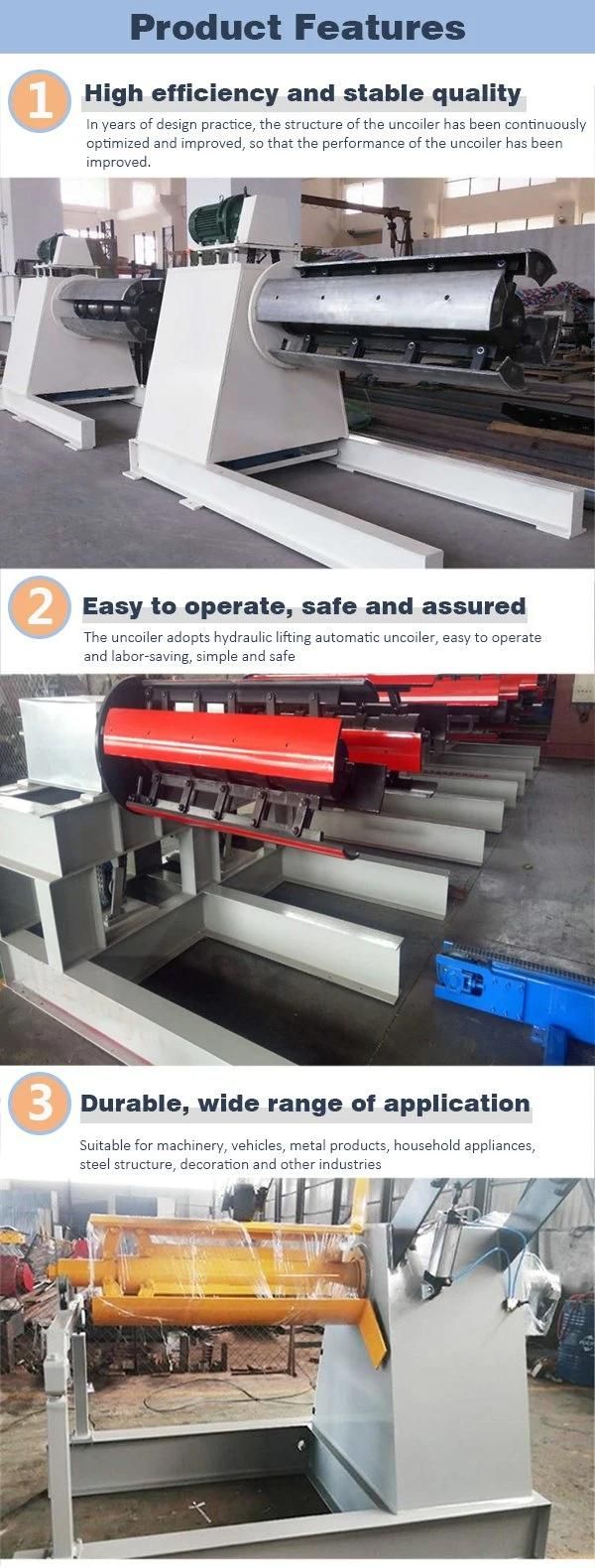

1. High efficiency and stable quality
In the rewinding part of the coil processing production line, the raw materials are mechanically wound into coils, which are widely used in paper rolls, cloth rolls, plastic rolls, and metal coil processing production lines.
2. Easy to operate, safe and worry-free
According to the actual process requirements, the design is diversified, and the thickness and width of the coil material have strict requirements.



Standard device	Devices can be attached
1. Manual or hydraulic expansion 2. AC transmission 3. Hydraulic drive device 4. A-iron quick positioning device 5. Induction device	1. Trolley and hydraulic lifting device 2. Pressing arm device 3. The motor drives the pressing arm device

Parameters:


Type	MT-400	MT-500	MT-600	MT-700	MT-800	MT-1000	MT-1300
Material Width (mm)	400	500	600	700	800	1000	1300
Material Thickness (mm)	0.3-2	0.3-2	0.3-2	0.3-2	0.3-2	0.3-2	0.3-2
Material Inner Diameter (mm)	508±0.2	508±0.2	508±0.2	508±0.2	508±0.2	508±0.2	508±0.2
Material Outer Diameter (mm)	1200	1200	1200	1200	1200	1200	1200
Material Weight (T)	3/5	3/5	3/5	3/5	3/5/8	5/8/10	5/8/10
Feeding Speed (m/min)	15	15	15	15	15	15	15
Coil Expansion	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Mechanical Weight (KG)	1400	1600	1800	1900	2100	2300	2500
Machine Size (M)	1.2*1.1*1.3	1.4*1.2*1.3	1.5*1.2*1.3	1.7*1.3*1.4	1.8*1.4*1.4	2.0*1.5*1.6	2.0*1.8*1.8

Applications:

The uncoiler is one of the essential and important equipments in the welded pipe production line. Uncoilers are widely used in paper rolls, cloth rolls, plastic rolls, and metal coils processing production lines, and are suitable for machinery, vehicles, metal products, household appliances, steel structures, decoration and other industries.
