Aluminum Ingot Making Machine with Melting Casting and Stacking Machine

Nantong Zhenhuan Trade Co., Ltd.
  • Machine Dimension：20 X 1 X 2m
  • Ingot Take off Type：Single Pneumatic Hammer
  • Power：7.5kw, Frequency Motor
  • Scraping Belt Pitch：152.4mm
  • Number of Ingot Die：262PCS, High-Mn Heat Resisting Iron
  • Distribution Parts：High-Mn Heat Resisting Iron, 8 PCS Nozzles

Base Info

  • Model NO.：LDJ
  • Output：4-6 Seconds Per Ingot
  • 4-6 Seconds Per Ingot：Water and Air Cooling

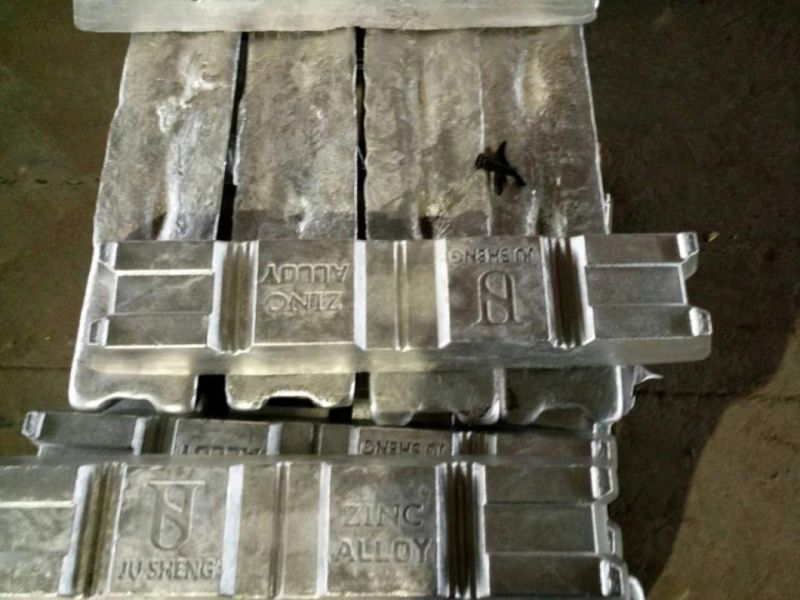

  • Weight of Each Ingot：About 6kg
  • Air Supply Pressure：0.63MPa
  • Transport Package：40gp
  • Specification：20 x 1 x 2m
  • Trademark：zhenhuan
  • Origin：Jiangsu
  • Production Capacity：12000tons Per Year

Description

Furnace topFire brick230mmInsulating castable150mmAluminum silicate fiberboard50mmBody frame channel steel12# channel steelTotal thickness of furnace top550mmNameDataMachine dimension20 x 1 x 2m (L,W, H)Ingot take off typeSingle pneumatic hammerPower7.5kW, frequency motorScraping belt pitch152.4mmNumber of ingot die262pcs, High-Mn heat resisting ironDistribution partsHigh-Mn heat resisting iron, 8 pcs nozzlesOutput4-6 seconds per ingotCooling typeWater and air coolingWeight of each ingotAbout 6kgAir supply pressure0.63Mpa Aluminum Ingot Making Machine with Melting Casting and Stacking Machine

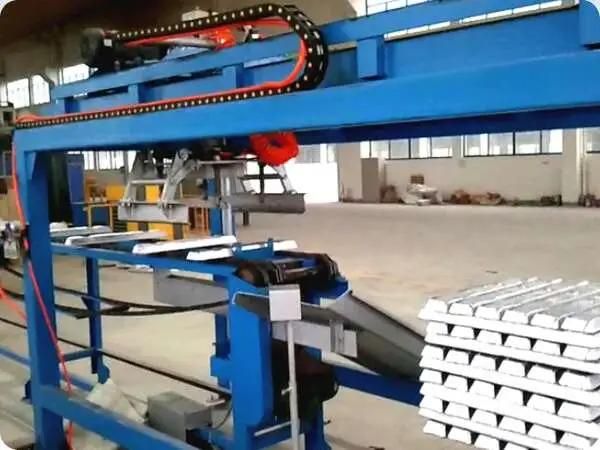

IV STacker Unit
Aluminum Ingot Making Machine with Melting Casting and Stacking Machine

  1. Feature
  1.
  2. Conveyer: power is 2.2kW, working speed is 10m/min, load capacity of oil cylinder is 1500kg,
  3. Material of bearing block is UCP208, material of chain roller is 45# with heating treatment.
  4. Hydraulic system: power is 7.5kW, pressure is 16Mpa (Max.), flow is 40L/min (max.)
  5. Air-operated system: air supply pressure is more than 0.5Mpa, pipe diameter is 6 min,
    gas consumption is 3m3/min.
  6. Electric control system: PLC Mitsubishi, Japanese. Relay is Schneider or Omron.
  7. 380V, 3phase, 50Hz.
NameDataPower1.5kWLifting height 150mmLifting weight100kgRotation angle0 , 90 degreeMoving speed for trolleyAbout 14m/minNumber of ingot for moving7pcs/each timeAluminum Ingot Making Machine with Melting Casting and Stacking Machine
If you want to know more information, please contact us freely.
