Metallic Processing Machinery

Home > Product > Metal Straightening Machinery

2-Roller Aluminium Bars Straightener Straightening Machine Rod Straightening Machine Leveling Machine

Yantai Haige Machine Tools Co., Ltd.
  • After-sales Service：Yes
  • Type：Pressure Leveler
  • Usage：Sheet, Wire, Pipe, H Beam Flange, Bar, Tube
  • Voltage：380V
  • Automatic Grade：Semiautomatic
  • Principle：Small Deformation

Base Info

  • Model NO.：JY40ZY
  • Certification：ISO9001, CE
  • Warranty：12 Months
  • Customized：Customized
  • Condition：New
  • Straightening Speed：2-15m,Min
  • Total Capacity(Kw)：50
  • Main Motor Power(Kw)：2*22
  • Length Required：≥2000mm
  • Input Dia：10-40mm
  • After Sales Service：Engineers Can Offer Overseas Service
  • Transport Package：Wooden Cases as Outer Packaging
  • Specification：4.7*1.7*1.8m
  • Trademark：haige
  • Origin：China
  • HS Code：8462291000
  • Production Capacity：50 Set Per Year

Description

Basic Info.

Model NO. JY40ZY Certification ISO9001, CE Warranty 12 Months Customized Customized Condition New Straightening Speed 2-15m/Min Total Capacity(Kw) 50 Main Motor Power(Kw) 2*22 Length Required ≥2000mm Input Dia 10-40mm After Sales Service Engineers Can Offer Overseas Service Transport Package Wooden Cases as Outer Packaging Specification 4.7*1.7*1.8m Trademark haige Origin China HS Code 8462291000 Production Capacity 50 Set Per Year

Product Description

Cheap 2-roll aluminium bars straightener machineSeries JY straightening machine is mainly used forPrecision straightening for the metal bar after peelingor granding and pre-straightening for the metal bar.

The machine adopted special curve between upper concave and the lower convex two straightening rolls to realize calendering and straightening at the same time, which greatly improved the working efficiency.
 Series JY two-rolls Straightening Machine consists of two-beams and four-columns structure, prestressed structure and frame structure.

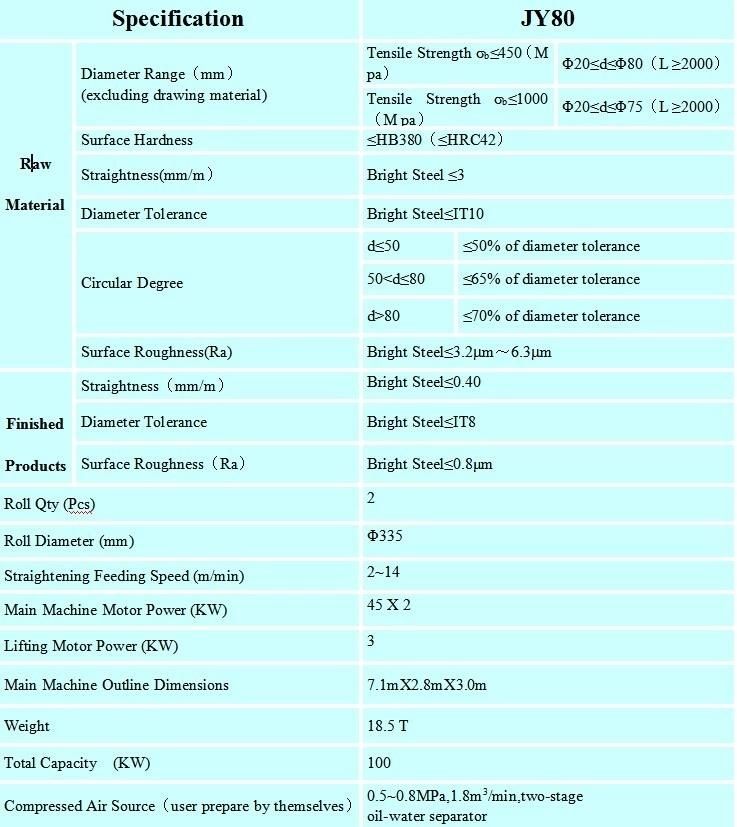

Technical Parameters
2-Roller Aluminium Bars Straightener Straightening Machine Rod Straightening Machine Leveling Machine
Company introduction

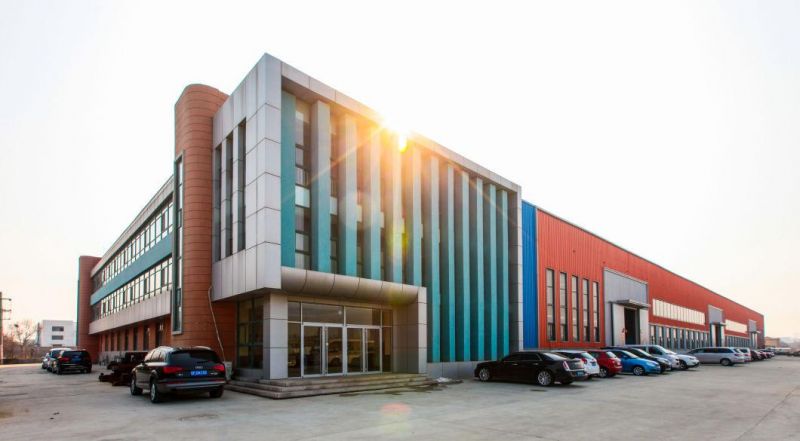

Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.

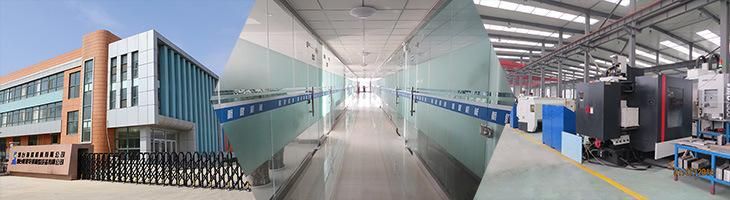

The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m². There are one hundred and forty staffs working in the factory. The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
2-Roller Aluminium Bars Straightener Straightening Machine Rod Straightening Machine Leveling Machine

2-Roller Aluminium Bars Straightener Straightening Machine Rod Straightening Machine Leveling Machine

Certification

2-Roller Aluminium Bars Straightener Straightening Machine Rod Straightening Machine Leveling Machine

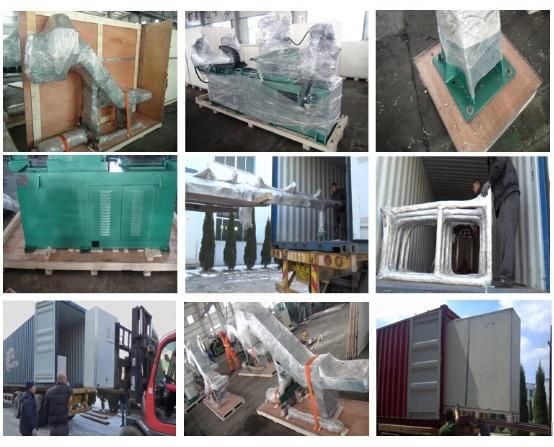

Packaging & Shipping

2-Roller Aluminium Bars Straightener Straightening Machine Rod Straightening Machine Leveling Machine
FAQ


1.Are you manufacturer or trading company?

We are professional manufacturer and we have more than 10 years experience in this field.We have our own factory.

Besides,at the end of 2014,we was just estabilished a trading company.

2.How many employees are there in your factory?

Approximately 150 persons.

3.Do you have your own R&D team?How many design engineers do you have?

Yes,we have our own R&D team.More than 10 persons.

4.Which countries have your machines been exported to now?

Russia,South Korea,North KOrea,Pakistan,India,Vietnam,Taiwan,etc.

We regard our customer's satisfaction as our unremitting pursuit.
