• Model NO.：WX-301
• Carton：68.5X47.5X59cm
• Weight：26.8kgs
• Delivery Time：3-5days
• Ports：Shanghai, Ningbo
• Transport Package：Wooden Carton or Carton
• Specification：46.5*86*100cm
• Trademark：WANXIN
• Origin：China
• HS Code：84243000
• Production Capacity：20 Sets,Day

Basic Info.

Model NO. WX-301 Carton 68.5X47.5X59cm Weight 26.8kgs Delivery Time 3-5days Ports Shanghai, Ningbo Transport Package Wooden Carton or Carton Specification 46.5*86*100cm Trademark WANXIN Origin China HS Code 84243000 Production Capacity 20 Sets/Day

Product Description

Electrostatic Powder Coating Machine with Gema Replaced Powder Gun


Certificate: CE ,SGS,ISO9001
Main Feature:Intelligent & fast color change & good for coating corner & long life
Delivery:  2 days for small order, large order within 10 days
Packing: Carton or Wooden cases
Shipping: By air courier, air cargo, By sea

SPECIFICATION

1. Electrostatic powder coating machine.

2. High quality model, stable electrostatic charges.

3. Good powder coating effects.

WX-301 electrostatic powder coating equipment is excellent quality electrostatic powder coating machine for complicated appearance.



MANUAL POWDER COATING MACHINE WORKING PRINCIPLE

Powder coating is a type of coating that is applied as a free-flowing, dry powder. The main difference between a conventional liquid paint and a powder coating is that the powder coating does not require a solvent to keep the binder and filler parts in a liquid suspension form. The coating is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin".



WORKPIECE APPLICATION

This WX-301 powder coating machine can be used for coating of metals, such as household appliances, aluminium extrusions, drum hardware, and automobile and bicycle parts.



POWDER APPLICATION

The mentioned electrostatic powder coating equipment can powder coating common powder, such as polyester, polyurethane, polyester-epoxy (known as hybrid), straight epoxy (fusion bonded epoxy) and acrylic

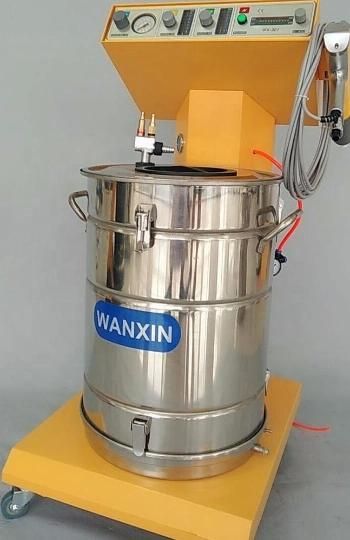

PRODUCT SHOW

TECHNOLOGY REFERENCE

INPUT VOLTAGE	FREQUENCY	POWER	OUTPUT HV.	OUTPUT CURRENT
110/220V AC	50/60HZ	45W	0~100KV	0~150μA
SOLENOID VALVE	AIR-IN PRESSURE	AIR-OUT PRESSURE	AIR CONSUMPTION	POWDER CAPACITY
24V DC	0-0.6MPA	0-0.4MPA	13.2M³/H (0.4MPA)	500G/MIN
POLARITY	SPRAY GUN G.W	TOTAL G.W	PACKING DIMENSION	DELIVERY TIME
NEGATIVE	Approx. 700G	Approx.40-45KG	68.5*47.5*59CM	2~3 DAY



CONFIGURATION

Control Panel*1PC

Powder Spray Gun*1PC

Powder Feeding Hopper *1PC

Movable Trolley *1PC

Cables,Hose & Accessories *1PC

Opearation Manual *1PC

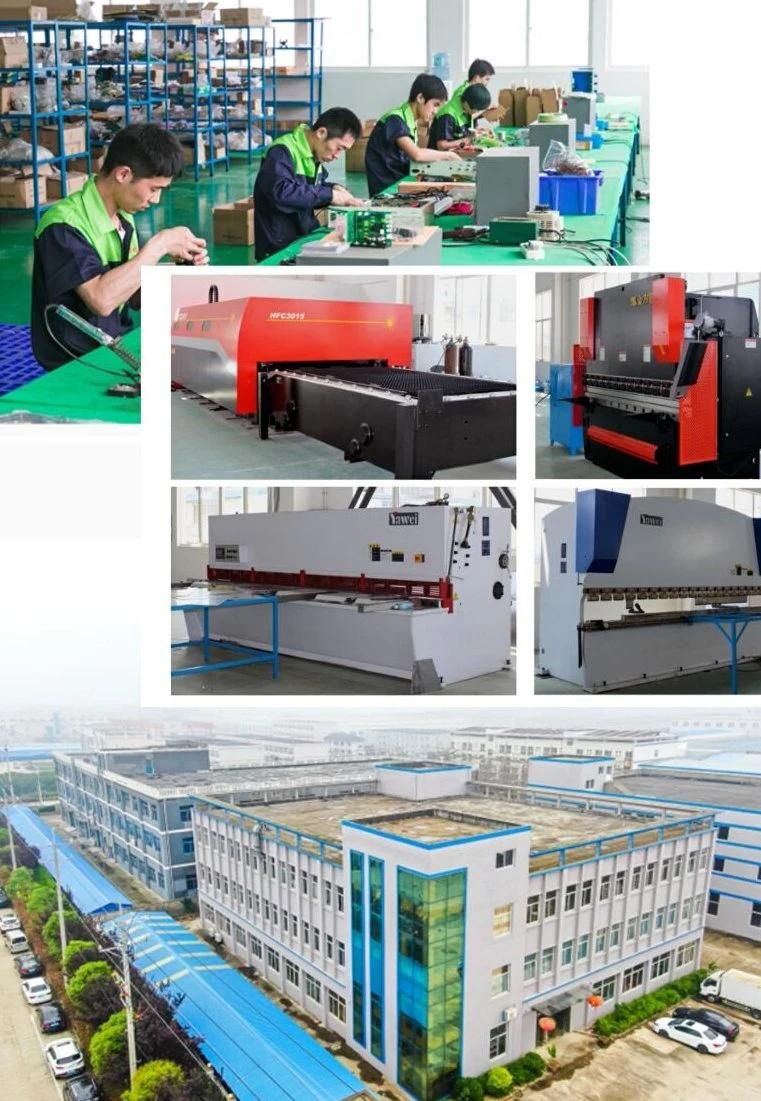

COMPANY Profile:

Jiangsu Xintu Machinery Co., Ltd is one of the leading Manufacturers in powder coating equipment or total line and flocking machine ,Our company found in 2011, with the factory in Jiangsu province nearby Shanghai city. it would take up a considerable 25,000square meters.
Almost 10 years experience in offering a wide variety products such as powder coating equipment,
flocking machine and their accessories, also if customers have a specific request can according to clients parameters to customized machine or line.
we have developed steady business relationship with clients from all over the world such as North America, Europe, middle East, Southeast Asia and so on.
We have experienced and skilled workers, QC team and QA system,also have ISO9001,CE,SGS certification.100%quality checking and tests before shipment.
We will offer you the most competitive price and best service!


TOM FENG
TEL: +8617131159740
Com:Jiangsu xintu machinery Co.,Ltd
Add:No 15 jiangfeng road,binhai industrial zone,Qidong city,Jiangsu province,China.
Welcome to our factory and hope to establish long term business relationship with you!
