• Model NO.：XM-55
• Certificate：ISO 9001:2000, BV Certificate
• Advantage：Cost Saving and Easy Control
• Power：5.5kw
• Height：1.4m-2.0m
• Transport Package：Wooden Box
• Specification：2800 x 3200 x 2400mm
• Trademark：XINGMAO
• Origin：China
• HS Code：84639000
• Production Capacity：10sets Per Month

Production specificationCY-ACY-BCY-CPower5.5KW7.5KW7.5KWSpeed≤45knock/min≤45knock/min≤45knock/minWire diameter1.9mm-2.5mm1.9mm-2.5mm1.9mm-2.5mmTop/bottom diameter2.0mm-3.5mm2.0mm-3.5mm2.0mm-3.5mmHeight 1.4m  1.5m2m Voltage380V-3P-50HZ380V-3P-50HZ380V-3P-50HZWeight3.5T3.8T4.0TOverall dimension2.8 x 3.2 x 2.4(m)3.3 x 3.2 x 2.4(m)3.7 x 3.2 x 2.4 (m) NOTE:Special type can be made according to client;s requirement.
              The rated voltage can be made as your requirement.
                   Vertical spacing can be adjusted and horizontal spacing can not be adjusted

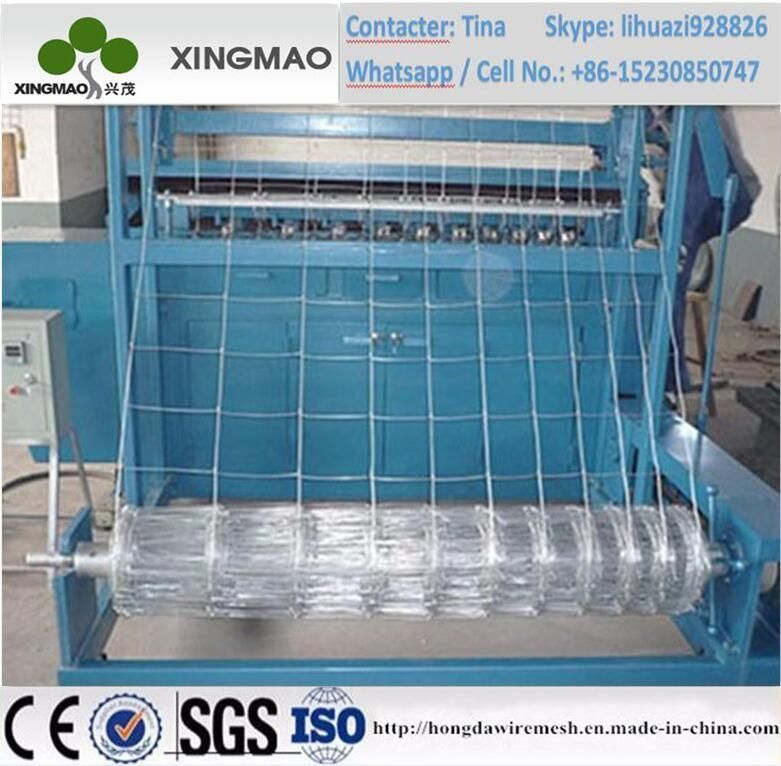

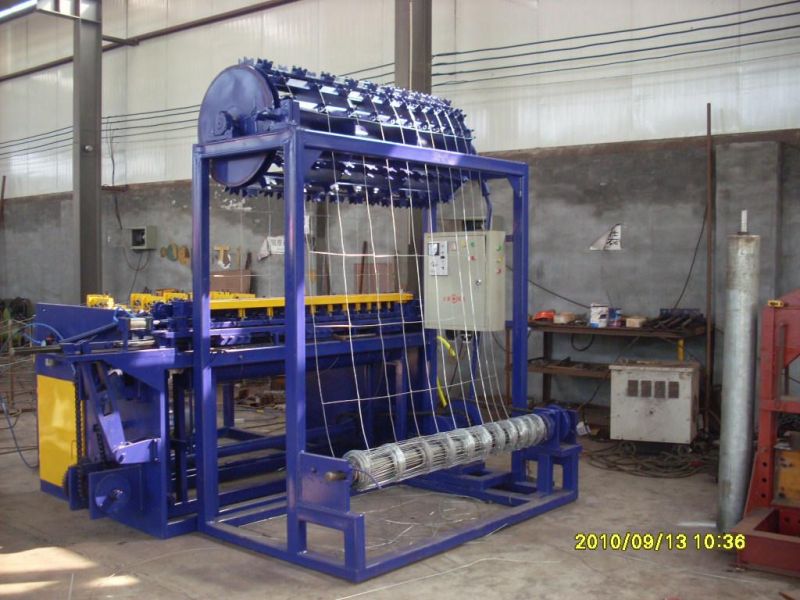

II. The details of fence machine
     1.Install:The machine need not install the anchor bolt, only need to put on the ground of plant. it is easy to   install. we will send the specification to you.
     2.Adjust: All the debugging working will be done in factory manufacture by our engineers.
     3.Production capacity: 400m/h
     4.Width: 1.0-2.4m
     5.The machine's power: 5.5kw, 7.5kw, 11kw.
     6.Accessories: wire bobbin, reel, tool box, etc. the accessories free offer to you.
III. The Features of fence machine
      The machine is a new model equipement designed by our factory, it has the advantage of  easy operation, safe reliable, energy conservation. and the field fence product has the features of innovative structure, firmness,precision and reliable property. MOQ1SetCapacity10 sets per monthPortTianjin, Qingdao, Shanghai, etcDelivery Time7 days(stock goods), 20days after received the depositPackagingPlastic films and wooden pallet, cabinet packed by wooden box
Our Services
Pre-sales Service
1.Reply you enquiry in 24 hours working hours
2.Experienced staffs answer all your questions about the machine
3.Exclusive and unique solution can be provided to our customer by your well-trained and professional engineer.
After-sales Service
1.Maintenance period: one year
If the buyers need, we can send our technical staff to the buyers' place to debug the machine and providing the training in 30 days after the machines arrive at the destination port.
2.The debugging fees: free
Year Established: 2005
We have 2 senior engineers,10 senior technicians,more than 100 employees
1.>  Our products: welded wire mesh machine, Chain link fence machine, field fence machine
2.>  Our supply ability: we have the complete accessories, 10 sets per month.

3.>  Our warehouse: We have many spot goods to ensure the needs of customers
4.>  Our Main Market: Algeria, Thailand, Burma, South Africa, South Asia, Egypt, etc
