Factory Hot-Sale 1ton Metal Melting Furnace for Casting Ingot
Foshan Hengyang Furnace Manufacturing Co., Ltd.- Control Type：PLC
- Customized：Customized
- Condition：New
- Automatic Grade：Semi-Automatic
- Certification：CE, ISO9001
- Type：Sand Casting
Base Info
- Model NO.：GW-1T
- Furnace Capacity：1ton
- Max Capacity：1.2ton
- Furnace Temperature：0-1800 Degrees
- Melting Time：45-60 Minutes
- Rated Power：750kw
- If Frequency：0.8kHz
- Input Voltage：380V,3phase
- Transformer Capcity：800kVA
- Delivery Time：20 Days
- Warranty：1 Year
- Installation Guiding：Yes
- Contruction Drawing：Yes
- Machine Video Factory Inspection：Yes
- Auxiliary Equipment：Cooling Tower, Refractory Material
- Transport Package：Wood Packing
- Specification：Customized
- Trademark：HengYang
- Origin：China
- HS Code：851420009
- Production Capacity：100sets,Per Months
Description
KGPS-GW-1T-750KW Water cooling system Water circulation flow T/h 35 Water pressure Mpa 0.25-0.35 Input temperature ºC 5-35 Output temperature ºC <55<<>

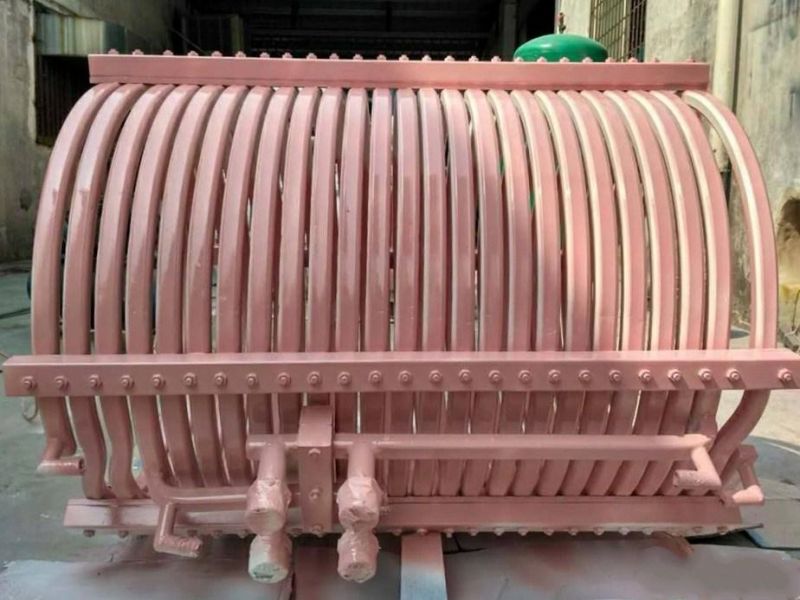

1. Induction coils
Induction coil is the heart of aluminum shell furnaces. If its quality is poor, or its design is not reliable, it will cause up to 25% power loss. So it is very important to by a boog furnace with high quality induction coil. Our factory's induction coils are made of high-quality TUI oxygen-free copper., which are purchase from a Chinese brand-name company . The coil joint is wilded with high-silver to get high electrical conductivity and make less loss. Insulation material is set in the best inter-turn to get perfect insulation and high electrothermal efficiency.
2. Furnace frame
High quality furnace frame to have long service life. Our furnace's furnace frame is made of aluminum and magnesium alloy materials, consisting of two pieces of aluminum shells and asbestos board, insulating board and stainless copper wire rod. It is durable to furnaces are durable to service to 8-10 years.
3. Reducer
When finishing melting, the metal liquid will be poured by control reduer. RZS type reducer is a special reducer,used for induction furnace.The reducer has the advantages of small size, large speed ratio, self-locking transmission and low noise. It can be control by manual and electric control
4. Safety and big capacity. Our factory's furnaces are design bigger than its rated capacity. For example, 1 ton furnace's max capacity is 1.2 ton. So furnaces can still work smoothly when it is full. It is more safe as well. Some other furnaces supplier don't do that to save their production cost.

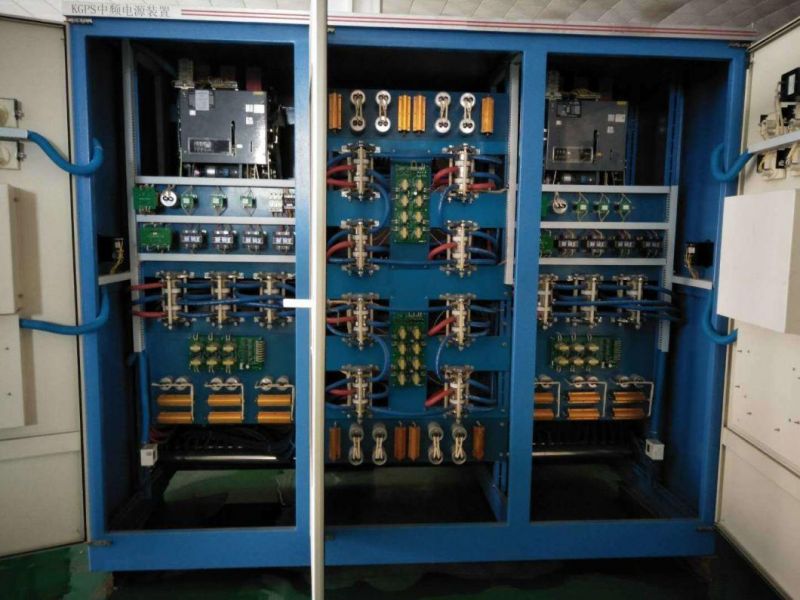

Power supply cabinet
Power supply is the most important part of one set of a furnace. The power supply cabinet is consist of many electric components. Our factory's power supply cabinet are made of the best electric components from China. So it work steady, with high effidieny, being energy saving, and not easy to get trouble.
Spare part 1:Thyristor
Brand: TECHSEM Group and CSR Group, the above two companies are leading thyristor manufacturing industry in China
Function: Stable, have strong ability to resist strong current, durable, not easy to damage
Spare part 2:Control circuit board
Brand: Hengyang Furnace, developed by our own R&D Team
Function: Double tested before production, carefully checking, have a great control on the quality, every customer comment its stablility.
Technical Support 1) Equipment design
Furnace will be customized to meet your production needing and environmental condition (maximum ambient temperate, humidity, altitude,etc) .
2) Drawings delivery
Technical drawing will be send to the buyer after geting the deposite, so the buyer can build basic contruction before the furnace arrived.
3) Acceptance check before delivery
a. The supply of the inspection equipment complies with the scope of supply and technical specifications in the technical agreement.
b. Check the mechanical actions of the equipment.
c. Safety interlock of equipment and alarm function test.
4) Installation & debugging & worker traininga. Cooperate with guidance to check the buyer installation work;
b. Internal and electrical wiring connections between equipment;
c. Site commissioning;, according to the actual equipment adjust to the best state;
d. Direct buyer operating personnel to the correct use of operating equipment;
e. Guidance on site security considerations;
f. To guide the buyer maintenance personnel troubleshooting methods;
g. Provide equipment specification;
