• Warranty：12 Months
• Customized：Non-Customized
• Condition：New
• Transport Package：Wooden Case
• Specification：weight: 130Kg
• Trademark：Bafang
• Origin：Shandong China
• Production Capacity：1000pieces,Year

Basic Info.

Warranty 12 Months Customized Non-Customized Condition New Transport Package Wooden Case Specification weight: 130Kg Trademark Bafang Origin Shandong China Production Capacity 1000pieces/Year

Product Description

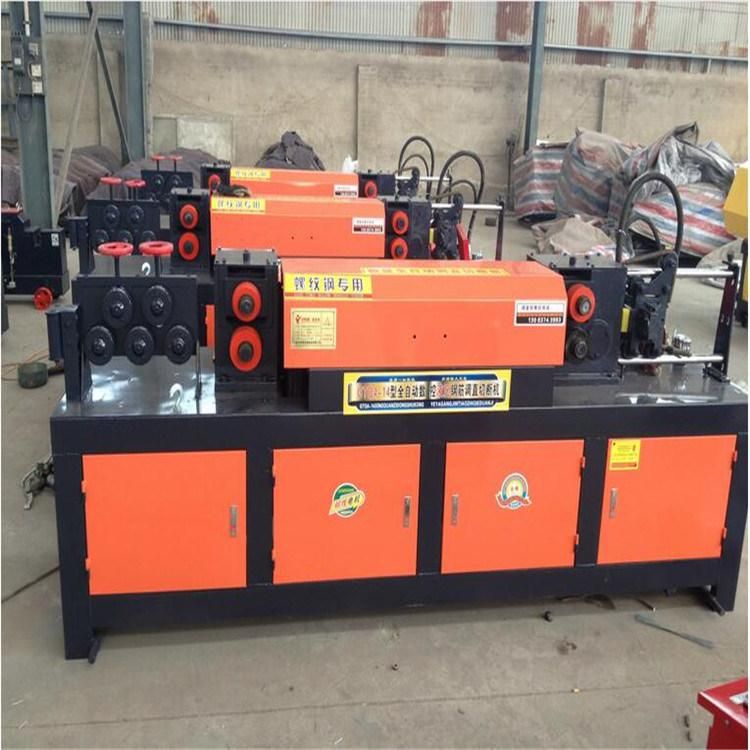

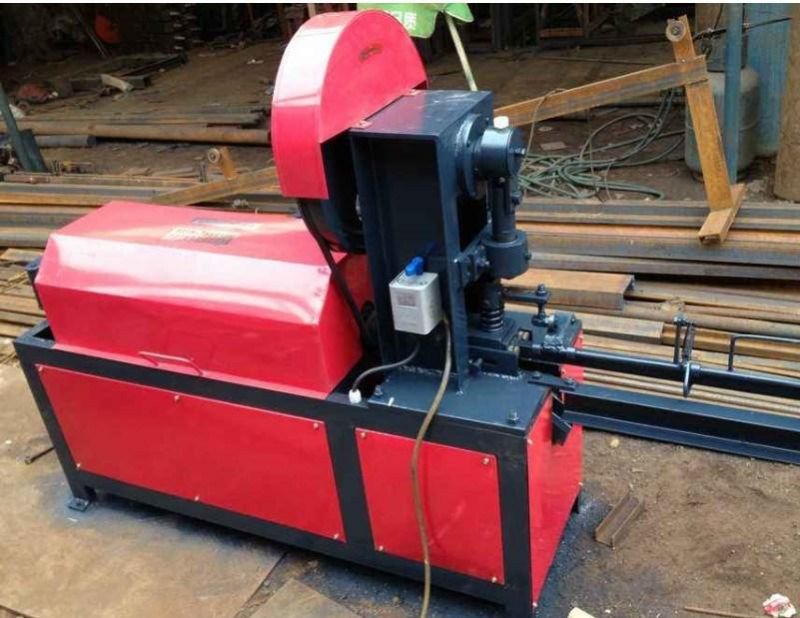

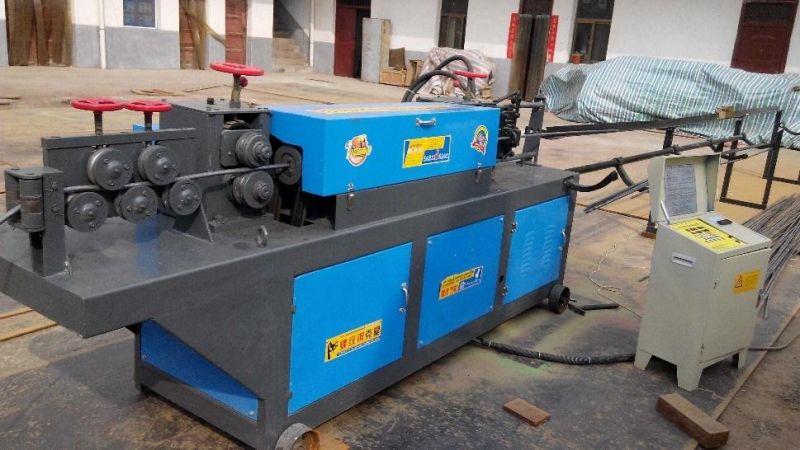

High Quality Automatic Steel Wire Straightening
and Cutting Machine
Main parameters:
Straightening range: Ф3-Ф12mm
Straightening speed: 18-40m / min
Motor power: 3kw 4kw
Dimensions: 1080 × 400 × 600mm
Machine weight: 130kg

Operating procedures:
1, rack, trough should be installed straight, and should be aligned with the guide tube, straight tube and cut the center hole.
2, hand rotating flywheel, check the transmission and working equipment, adjust the gap, fastening bolts, the motor must be set to be followed by zero protection. Confirm the normal operation before.
3, Straightening bar diameter should be used, select the appropriate straightening block and transmission speed. Straightening block diameter should be larger than the diameter of steel 2-5MM, after commissioning, before feeding.
4, the straightening block is not fixed, the protective cover is not covered before wearing a reinforced bar. Do not open the protective cover and adjust the gap during operation. Do not wear gloves operation
5, when the rebar into the hand and the trolley should maintain a certain distance, shall not be close. Machinery is not allowed to shelve tools, objects, to avoid vibration falling into the body
6, should not cut straight before feeding the end of the guide tube should be installed before a 1M long steel pipe. Reinforcing steel should be first passed through the guide hole before straightening. Discs should be released to put the human body on the frame to be smooth, chaos silk or steel off the shelf, you must stop processing
7, after straightening the steel if there is a slow bend, you can increase the offset straight block until straightening up.
