Metal Stud and Track Roll Forming Machine Made in China
Hangzhou Santiway International Co., Ltd.- Certificate：ISO9001:2000,Ce
- Profile Size：Can Design Accoridng to Your Sample or Drawings
- Material Grade：Q215,Q235,Q345,Q550
- Material Thickness：0.8mm to 3mm Max.
- Drive Way：Chain or Gear Box
- Size：Depends on Final Design
Base Info
- Model NO.：metal stud and track roll machine
- Delivery Time：30 Days Finished and 10 Days More to Test
- transportation：by Sea or Train
- Forming Speed：12~14m,Min.
- Transport Package：Machine in 40′′gp,Other Accessories in Wooden Case
- Specification：CE
- Trademark：STW
- Origin：China
- HS Code：84552210
- Production Capacity：10sets,Month
Description
Basic Info.
Model NO. metal stud and track roll machine Delivery Time 30 Days Finished and 10 Days More to Test transportation by Sea or Train Forming Speed 12~14m/Min. Transport Package Machine in 40′′gp,Other Accessories in Wooden Case Specification CE Trademark STW Origin China HS Code 84552210 Production Capacity 10sets/MonthProduct Description

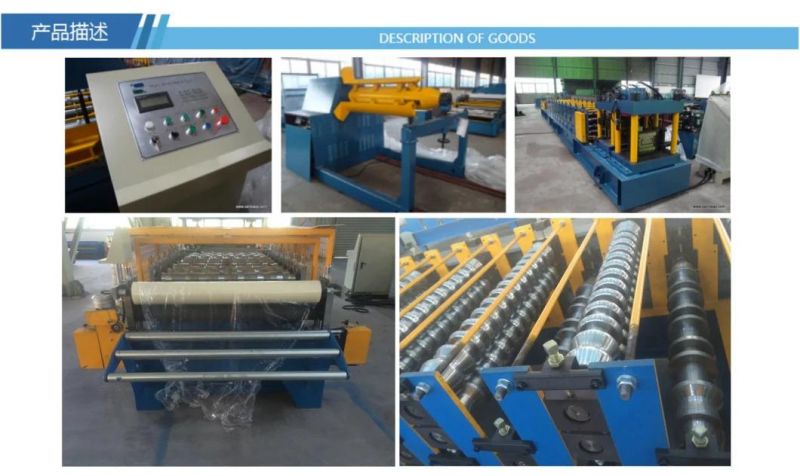

| Machine's Components: | Uncoiler, coil sheet guiding device, film covered device(optional), main roll forming system, cutting device, hydraulic, PLC control table and final product run out table. |
| Specification: | -Suitable raw material: color steel sheet; galvanized steel sheet; -Suitable thickness of raw material: 0.3-0.8mm; -Main motor power: 5.5kw(depend on finaldesign); -Hydraulic station power: 2.2kw(depend on final design); -Forming speed: about 15m-20m/min -Uncoiler's loading capacity: 5tons(can be increased to 10 tons or at buyer's requirement); -Control system: Mitsubishi PLC&converter; -Voltage:380V, 3phase, 60HZ, or at buyer's requirement; Machine's dimension: about 8m-1.5m*1.4m(depend on final design); |

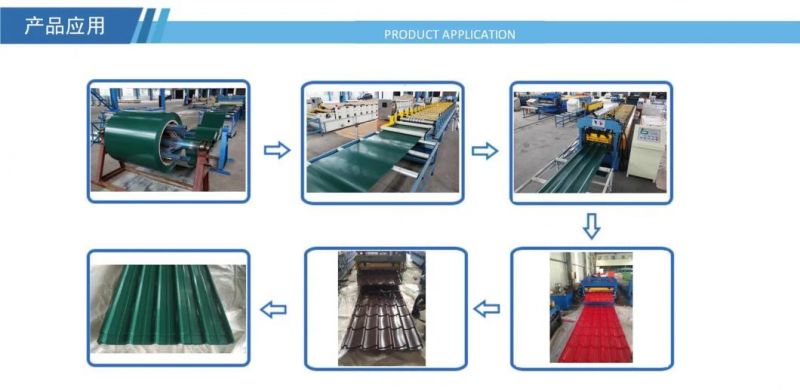

| Working flow: | Uncoiling the steel coil→ feeding and guiding the steel sheet→ film covering→ main roll forming→ cutting the panel→fianl product run out the table |
