PLC Control Galvanized Cable Tray Roll Forming Machine

Taicang Global Machinery Co., Ltd.
  • Type:Rolling Machine
  • Forging Forming Method:Roll Forming
  • Power Source:Electric
  • Feature:Automation
  • Certification:CE
  • Warranty:12 Months

Base Info

  • Customized:Customized
  • Advantage:Use Widely
  • Condition:New
  • Coil Width:150-1100 mm
  • Coil Thickness:1.0-2.0 mm
  • Whole Line Speed:10 m,min
  • Punching:As per drawing
  • Transport Package:Wood Box
  • Trademark:TGMCO
  • Origin:China
  • HS Code:8455221000
  • Production Capacity:50 Sets,Year


Basic Info.

Customized Customized Advantage Use Widely Condition New Coil Width 150-1100 mm Coil Thickness 1.0-2.0 mm Whole Line Speed 10 m/min Punching As per drawing Transport Package Wood Box Trademark TGMCO Origin China HS Code 8455221000 Production Capacity 50 Sets/Year

Product Description

Welcome to Taicang Global Machinery Co., Ltd

At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements.
Contact us right now!

A cable tray system, is "a unit or assembly of units or sections and associated fittings forming a rigid structural system used to securely fasten or support cables and raceways." Cable trays are used to hold up and distribute cables. Cable tray roll forming machine is special designed for its production.
Main Specification
Coil Width150-1100 mm
Coil Thickness1.0-2.0 mm
Power380 V, 50 Hz, 3 phase
Line Speed 10 m/min
Electical ContralPLC
Hydraulic PunchingAs per customer drawing

Equipment List

1. Hydraulic Decoiler with Breaking device is equipped for coil processing.
2. Loading Coil Car (Option)
3. Peeler Table And Pressure Pad
4. Leveler
5. Looping Pit
6. Servo Roll Feeder
7. 400 Ton Mechanical Press
8. Mechanical Shearing Machine
9. Powered Conveyor Roller
10. Cantilevered Type Rollformer with tooling
11. Run Out Table or automatic stacking device
12. Mitsubishi (Japan) PLC and Touchable Screen are used for data processing and setting.
13. Line speed is 10– 15 meter / minute.

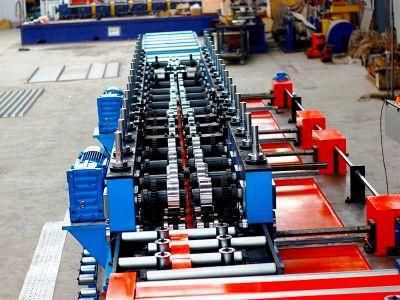

PLC Control Galvanized Cable Tray Roll Forming Machine

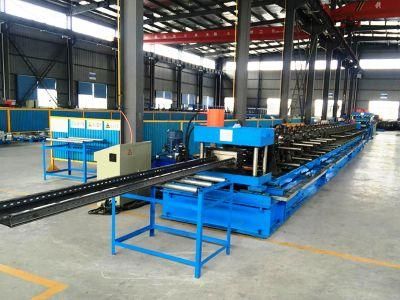

PLC Control Galvanized Cable Tray Roll Forming Machine

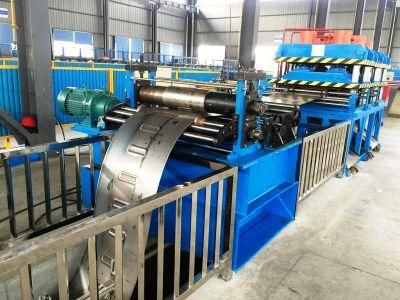

PLC Control Galvanized Cable Tray Roll Forming Machine

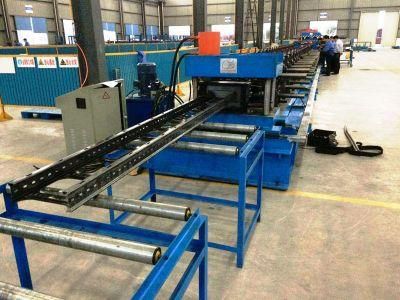

PLC Control Galvanized Cable Tray Roll Forming Machine

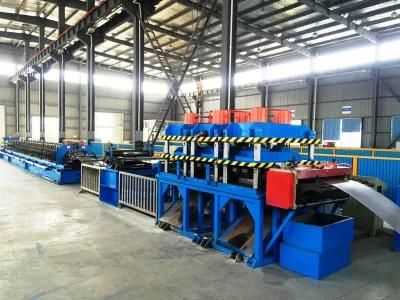

PLC Control Galvanized Cable Tray Roll Forming Machine

PLC Control Galvanized Cable Tray Roll Forming Machine

Main Customers

PLC Control Galvanized Cable Tray Roll Forming Machine


1) Q: Will you deliver the right goods as ordered?  How can I trust you?
   A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).  We have cooperated with many customers all over the world with high market reputation, no worries.
2) Q: How to choose the Tube Mill Line?
   A: You have to inform us following details:
- The pipe material
- Round pipe range
- Square pipe range
- Rectangle pipe range
- Wall thickness range
- The pipe usage
3) Q: How to choose the Roll Forming Machine?
   A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil weight
- Cutting type
- Profiles drawings
- Other special attention
4) Q: How to choose the Slitting Line & Cut to Length line?
   A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil width
- Coil weight
- Finished sizes
- Other special attention
55) Q: Where is the nearest  airport  to your company?
   A: Shanghai Putong or Hongqiao Airport.
6) Q: How about your service?
   A:  Before sales:
Technical Support: TGMCO will provide detailed technical information such as technical &  commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
Training of Customers' technician/workers during commission
Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
Inform immediate technical assistance and advice to customer by phone or e-mail.
Skilled and experienced engineers are capable of dealing with any type of breakdowns.
Technical service work performed in Customer's site if required.
Urgently supply mechanical or electronic components.
Fast supply of spare parts and wearing parts to cover foreseeable requirements
