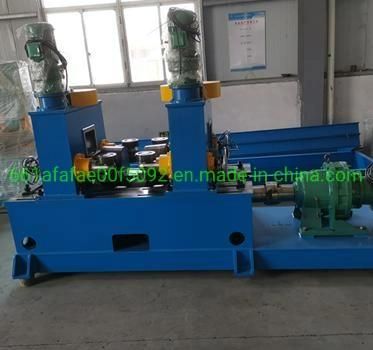

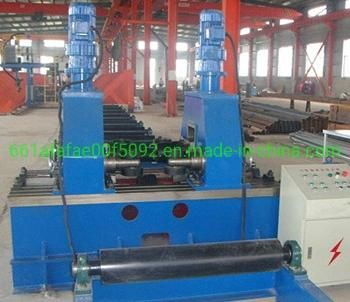

Automatic Steel Plate 40mm Flange Thickness H-Beam T Beam Straightening Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Video Instruction
- Type：H Beam Flange Straightening Machine
- Usage：H Beam Flange
- Voltage：380V-440V
- Automatic Grade：Automatic
- Principle：Deformation After H Beam Welding
Base Info
- Model NO.：JZJ-800
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Function：Straightening for H Beam Flange Plate
- Straightening Mode：Hydraulic or Mechanical Type H Beam Straightener
- Max Flange Thickness：40mm
- H Beam Material：Q345,Q235
- Power：Customized
- Suitable for H Beam Length：12m
- Flange Width：200-1000mm
- Input Roller Length：9m
- Output Roller Length：9m
- Colour：Customized
- Roller Material：35CrMo
- Hydraulic Station：1 Set
- Roller Hardness：HRC50-55
- Straightening Wheel Speed：8.9m,Min
- Delivery：45 Days
- Transport Package：Nude
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8462291000
Description
0-45ºC
Working principle:

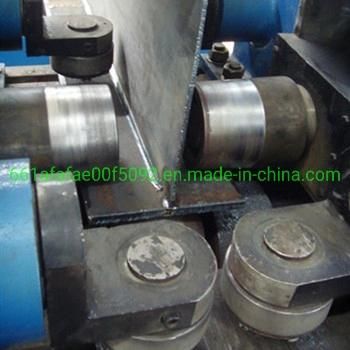

The H-beam flange plate straightening machine uses the upper roller device and the transmission roller to form a lever principle hole pattern, so that the straightened flange plate passes through the hole pattern, resulting in over-bending deformation, and elastic recovery to achieve the required straightening shape, so as to achieve The purpose of continuously correcting the H-beam T-beam flange plate is to achieve the manufacturing quality standard of H-beam.
Scope of supply:
1. Flange plate straightening machine host
2. Transmission roller device
3. Main drive motor and cycloid reducer
4. Press down device
5. Slider mechanism
6. Web guide
7. Bearing roller table
8. Bearing with seat
9. Hydraulic station (needed for hydraulic straightening machine)
Operation specification for H-beam flange straightening machine
1. The operator must be familiar with the working performance and characteristics of the H-beam flange plate straightening machine, and have the electric welding work permit.
2. The width of the steel and the flange plate is 200-600 and the thickness is 6-40. Adjust the position of the frame so that the correction hole formed by the upper rod and the transmission rod can complete the correction of the flange plate.
3. Generally, more than three rounds of correction are required. When the thickness is 40, the flange width is not less than 600.
4. The adjustment of the upper stick can only be carried out under the condition of no load after shutdown.
5. Adjust the exact position of the guide rod according to the thickness of the plate. Note that there should be a 1mm gap between the guide tube and the web on each side.
6. When correcting, it is necessary to carry out idling operation first, and the parts and assemblies of each transmission part have normal running sound before operation with load.
7. When adjusting the amount of down pressure, it must be operated under shutdown conditions.

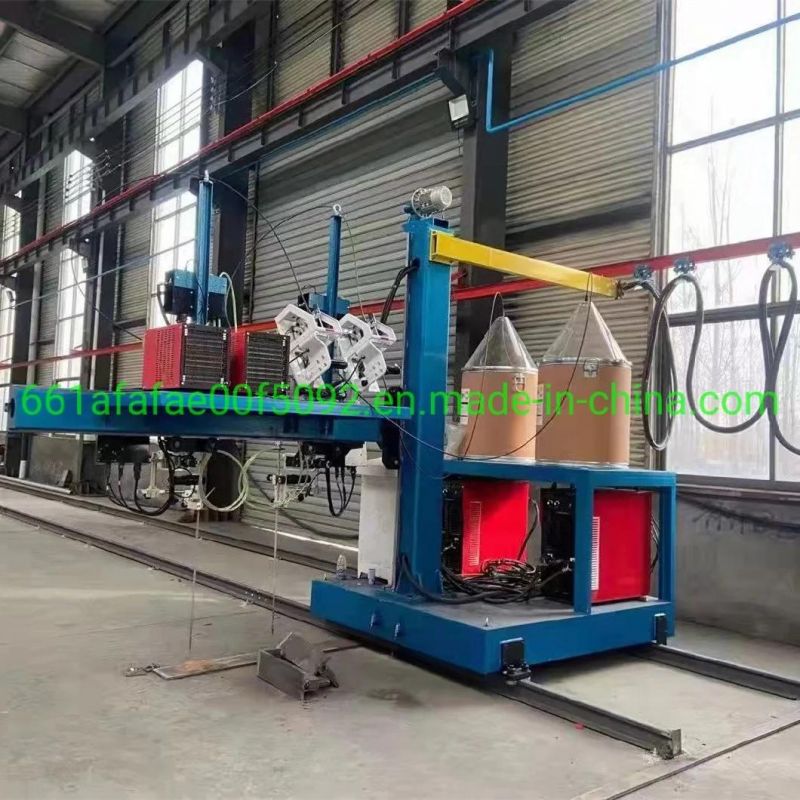

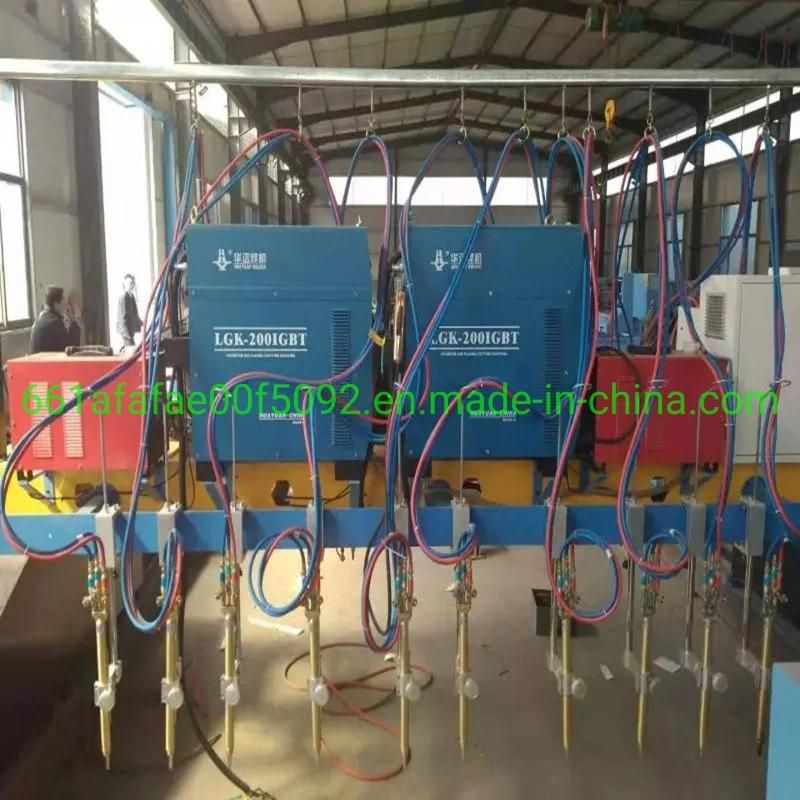

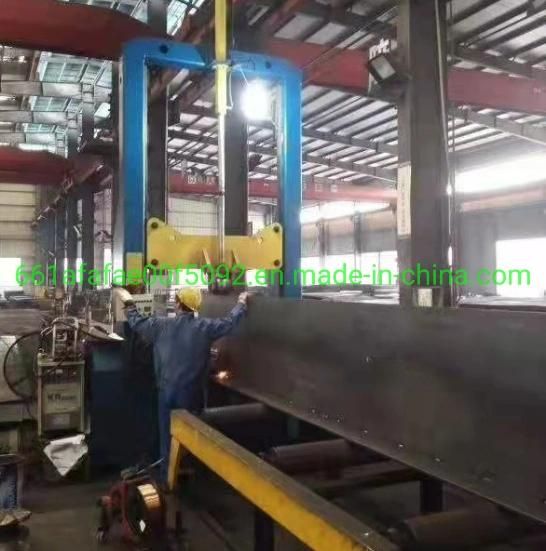

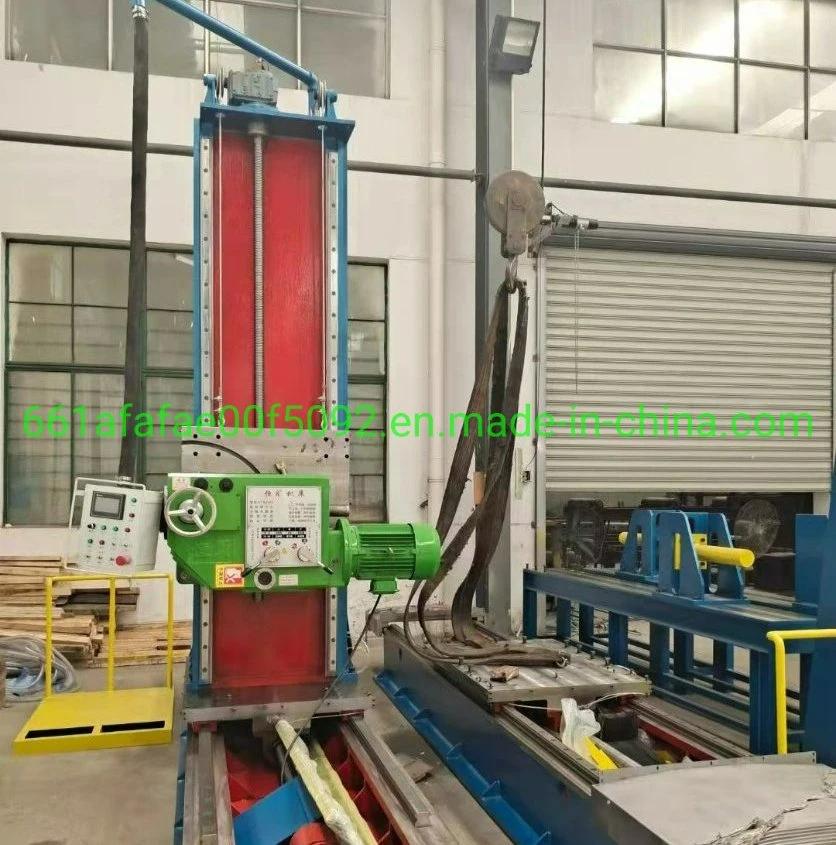

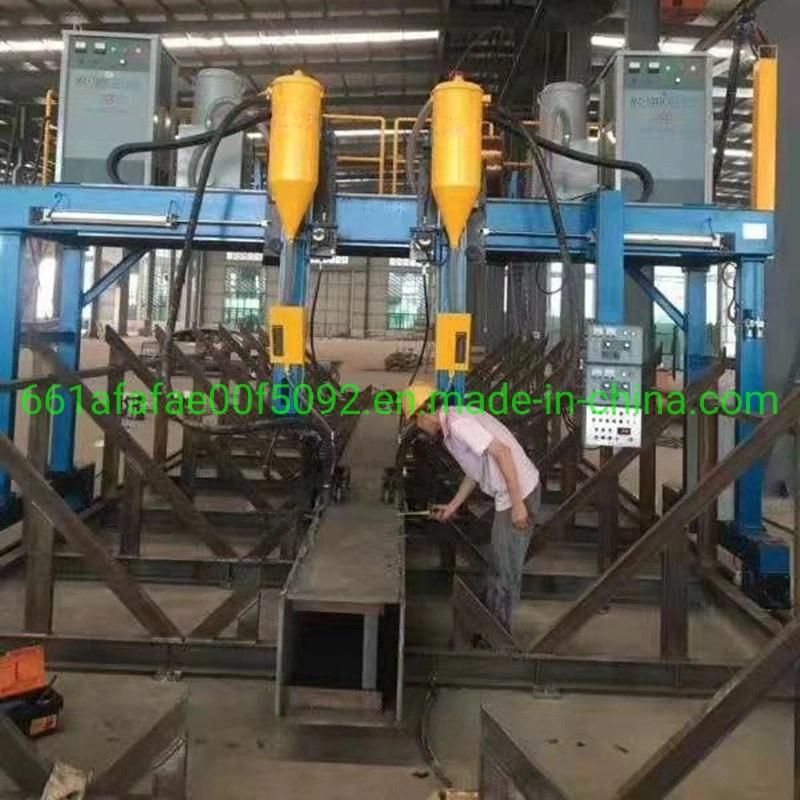

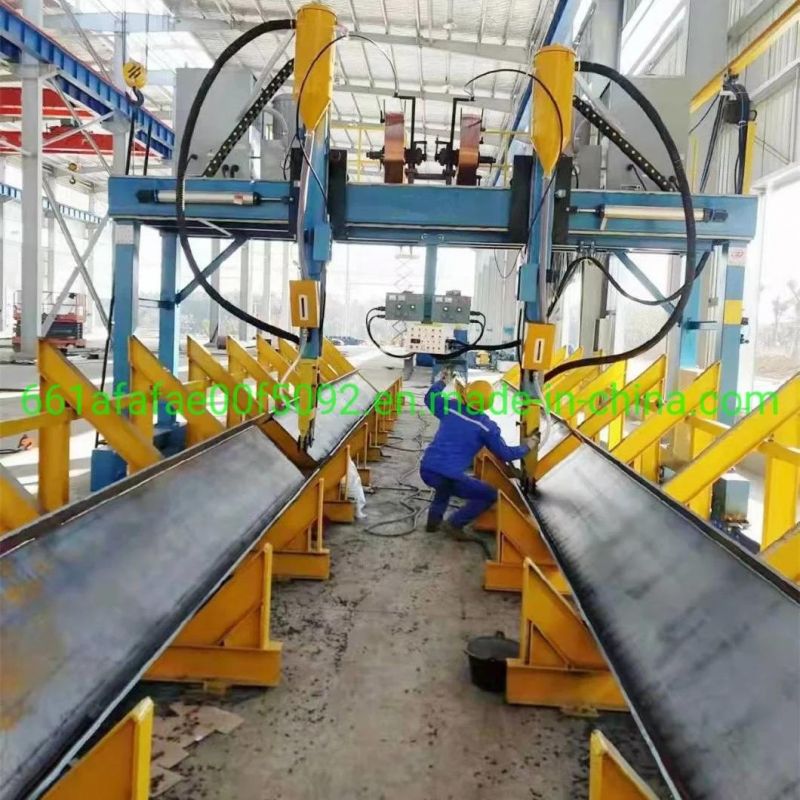

The current production capacity of Lemar has covered the fields of CNC welding and cutting equipment, H-beam production line, heavy steel production line, box beam production line, special welding machine, etc.
Our excellent quality and excellent service are well-known.
Our products are sold at home and abroad, the United States, Russia, Greece, Bulgaria, Colombia, Brazil, South Africa, Egypt, Vietnam, Dubai, etc.
