• Model NO.：pipe bending
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Production Range：Od60mm-2000mm(2-80inches)
• Radius：2.5D≤r≤10d≤15000mm
• Thickness：2mm-90mm
• Angle：0-180degree
• Material：Carbon Steel, Alloy Steel, Stainless Steel
• Transport Package：Suitable Shipping by Sea
• Specification：As customer′s requirement
• Trademark：DeChuang
• Origin：Hebei, China
• HS Code：84262990
• Production Capacity：200set Per Year

Basic Info.

Model NO. pipe bending Warranty 12 Months Customized Customized Advantage Use Widely Condition New Production Range Od60mm-2000mm(2-80inches) Radius 2.5D≤r≤10d≤15000mm Thickness 2mm-90mm Angle 0-180degree Material Carbon Steel, Alloy Steel, Stainless Steel Transport Package Suitable Shipping by Sea Specification As customer′s requirement Trademark DeChuang Origin Hebei, China HS Code 84262990 Production Capacity 200set Per Year

Product Description

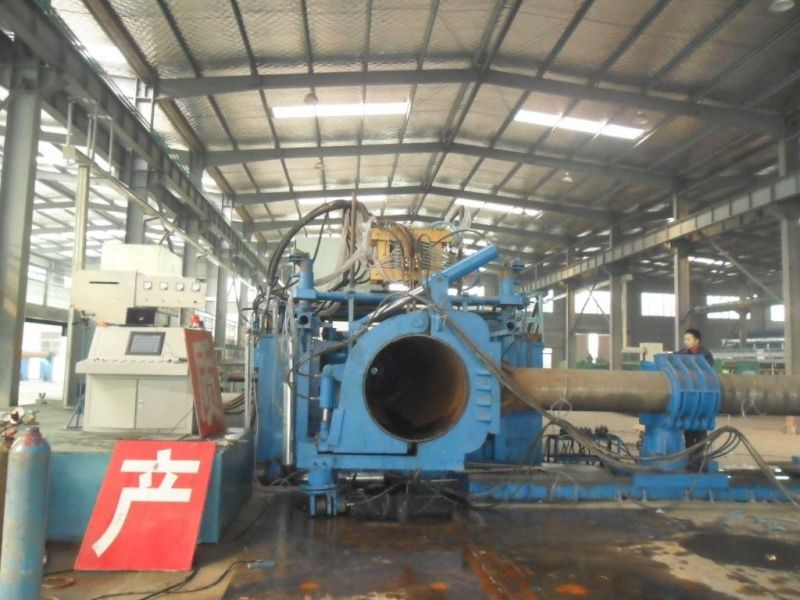

Induction pipe bending machine is equipped with mechanical part and electric controlling part.

Mechanical part has four institutions: Power supply mechanism, clamp fixed institution, bend radius adjusting mechanism, feed mechanism.

Electrical part consists of two systems: Heating system and PLC control system.

Equipment Specifications:
1. Production Range:OD60mm-2000mm(2-80inches)
2. Radius:2.5D≤R≤10D≤15000mm
3. Thickness:2mm-90mm
4. Angle:0-180degree
5. Material: Carbon Steel, Alloy steel,Stainless Steel

Our self-developed hydraulic automatic induction pipe bending machine has won the national patent, patent No.200620128117.9 .

Bending process uses PLC control system : input  the para meters of pipe OD,wall thickness,No.,radius, bend angle and raw material numbers, material, heating  temperature and a series of data in the touch,  PLC will control the heating temperature almost constant (±20°) by colsed loop between pushing speed and heating temperature.
The bending machine has already obtained the CE attestation



.
