• Model NO.：HT-WS80
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Suitable for Rebar Diameter：Φ3-Φ54mm
• Max Thread Length：100mm
• Thread Length：No Limit
• Rated Power：4kw
• Max Pressure：150kn
• Spindle Rotary Speed：36,47,60,78r,Min
• Transport Package：Fumigation-Free Wooden Case
• Specification：Φ 16-Φ 40mm
• Trademark：HONEST
• Origin：China
• Production Capacity：1000 Sets , Month

Basic Info.

Model NO. HT-WS80 Customized Customized Advantage Use Widely Condition New Suitable for Rebar Diameter Φ3-Φ54mm Max Thread Length 100mm Thread Length No Limit Rated Power 4kw Max Pressure 150kn Spindle Rotary Speed 36/47/60/78r/Min Transport Package Fumigation-Free Wooden Case Specification Φ 16-Φ 40mm Trademark HONEST Origin China Production Capacity 1000 Sets / Month

Product Description

Factory price high speed thread rolling machine
Product Description :
1. Product introduction:
1 Machine tool is welded with steel plate which is very durable during using .

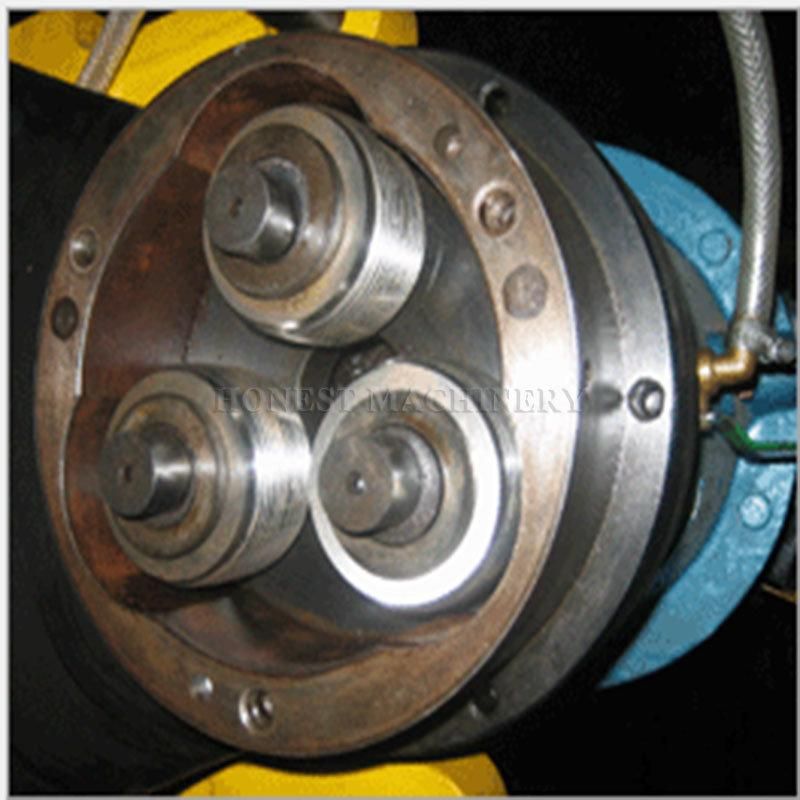

2 Rolling wheel is consist of hard alloy,can change according to customer's request.
3 Sliding parts after manual grinding,improve the machining precision.
4 Small size,efficient,low noise.
5 With high quality motor,make the machine perfect.
6 Power distribution box with high quality gear which through high frequency   quenching,make the machine durable.
7 Distribution gear with the hollow design,make no longer restricted the length of the   screw,the length of screw is unlimited in theory.
8 Have Time Relay,reduce the labour,make the screw thread have a high consistency.
9 By using thread roller machine, the rebar can be processed with straight threads.After processing ,the compressive strength of rebar can be improve 20%-30,the fatigue resistance can be improve 40%-60%,the resistance to corrosion can be improved 50%-200%
10 One year warranty and Lifelong tenure technical guidance
11 This machine is used for processing clamping screw .
.
2. Technical parameters & Quotation

Model	HT-WS80
Suitable For Rebar Diameter	Φ3-Φ54mm
Thread Length	NO Limit
Max pressure	150kn
Spindle rotary speed	36/47/60/78r/min
Spindle feed speed	5mm/s
Rolling wheel outer dia.	Φ120-Φ170mm
Rolling wheel pore dia.	Φ54mm
Rolling wheel max width	100mm
Main power	4kw
Hydraulic power	2.2kw
Spindle center distance	120-240mm
Spindle slant angle	±5°
Dimension	1520*1400*1130mm
Weight	1750kg

Packaging Delievery :

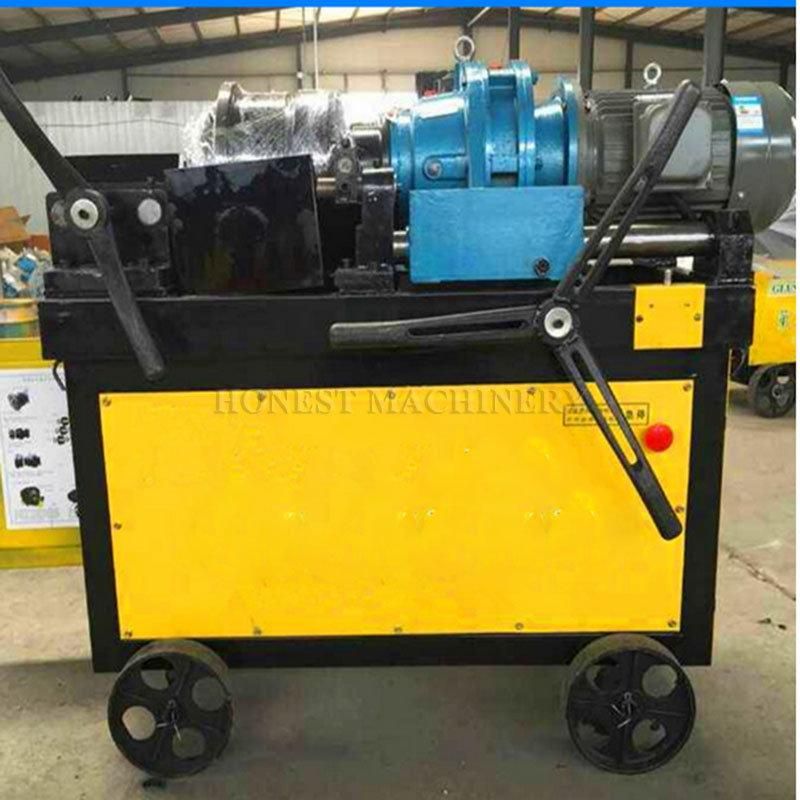

Product Picture :




Certifications :


Our Customers :


Contact Us :
