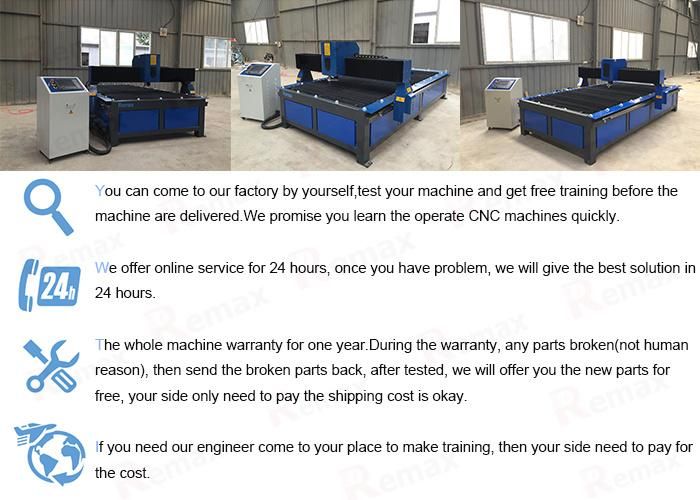

Gantry Type Flame Plasma Cutting Machine for Metal Sheet

Jinan Remax Machinery Technology Co., Ltd.
  • Layout：Horizontal
  • Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel

Base Info

  • Model NO.：1325
  • Power Source：Electric
  • Cutting Mode：Plasma Cutting
  • Effective Cutting Width (X Axis)：3000mm
  • Effective Cutting Length (Y Axis)：6000mm

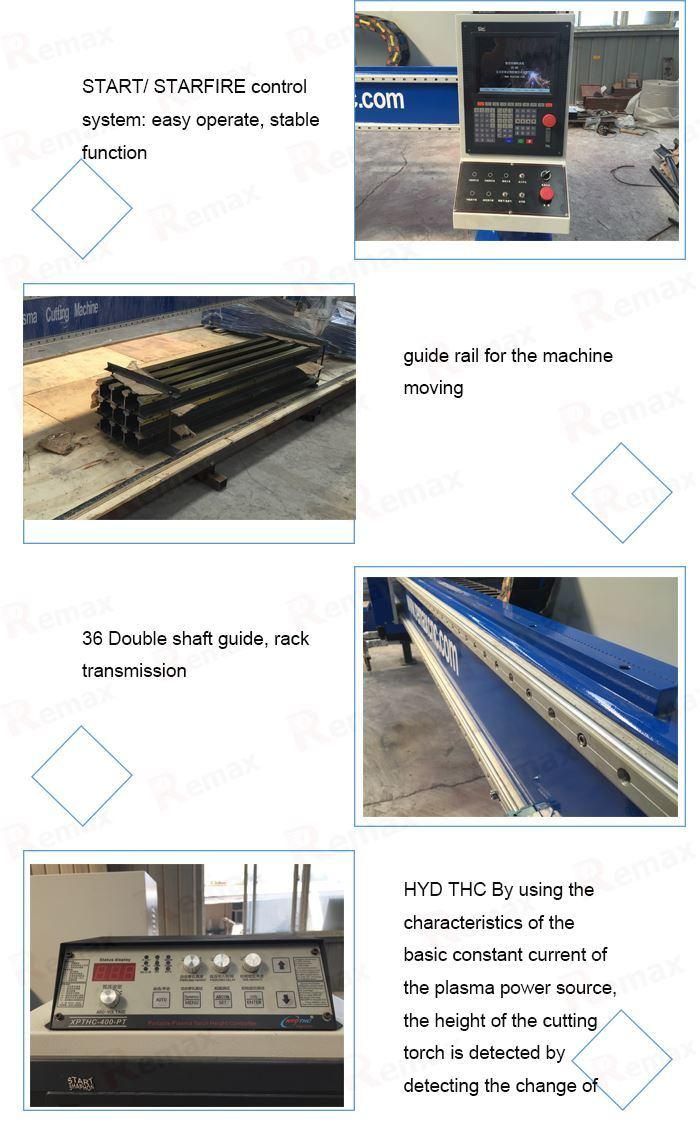

  • CNC System：Beijing Starat CNC
  • Plasma Cutting Speed：50-6500 mm,Min
  • Cutting Torch Lifting Distance：150mm
  • Speed Setting Error：≤±5%
  • Max Idle Running Speed：12000mm,Min
  • Torch Height Controller Accuracy：≤±1.0mm
  • Transport Package：Fumigation Wooden Box
  • Trademark：Remax
  • Origin：China
  • HS Code：8456401000
  • Production Capacity：60PCS,Month
  • Package size per unit product：330.00cm * 220.00cm * 150.00cm
  • Gross weight per unit product：1200.000kg

Description

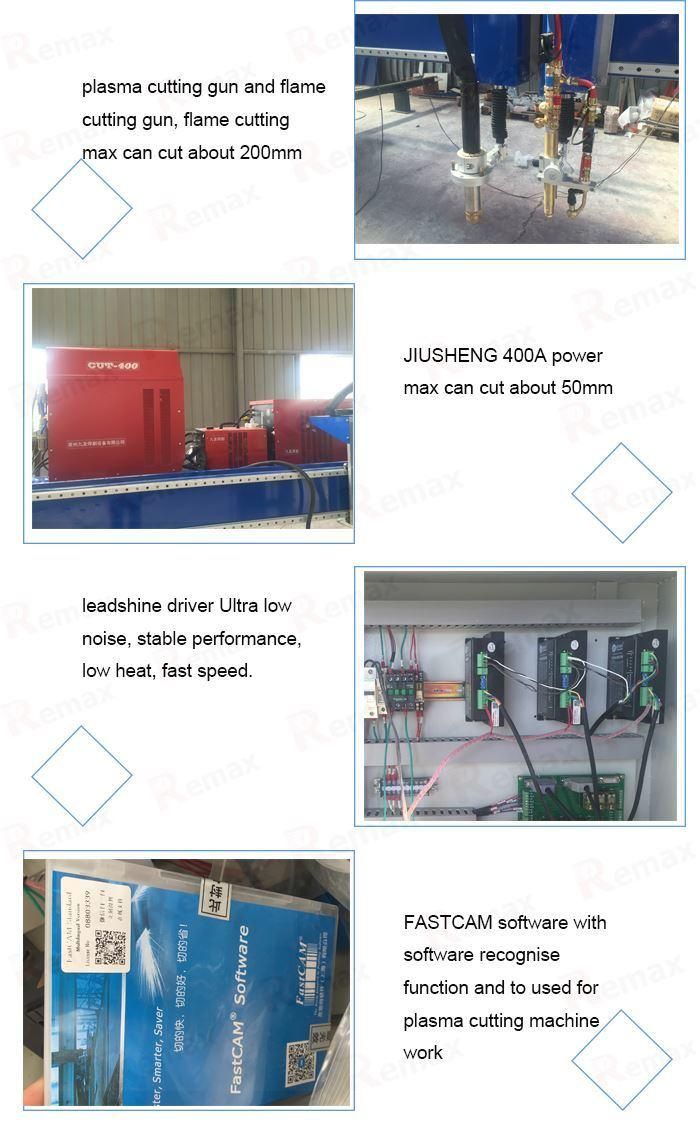

ModelGantry CNC plasma and flame cutting machineEffective Cutting Width (X axis)4000mmEffective Cutting Length (Y axis)12000mmPlasma powerJIUSHENG 400ADrive ModeBilateral-sideCNC systemSTARTPlasma cutting speed50-6500 mm/minCutting torch lifting distance150mmSpeed setting error≤±5%Max Idle running speed12000mm/minTorch height controller accuracy≤±1.0mmLongitudinal line accuracy±0.2mm/10mMotor and driverstepper motor and driverGearboxHubei planetDrive MethodRack and square rails for X Y Z axisMoving Precision0.01mm per stepPower Source380V 50/60Hz 3phaseHeight controller(plasma)HYD THCPlasma cutting thickness1-32mmlength of a side±0.5mmDiagonal error |AD-BC|±0.5mmBase point return error±0.2mmIntersection point error±0.5mmLineation forward- reverse error±0.2mm
