• Warranty：24 Months
• Customized：Customized
• Condition：New
• Application：Construction Machinery
• Use：Rebar Straightening and Cutting
• Transport Package：Wooden Box
• Specification：1400*520*840mm
• Trademark：Yongchuang
• Origin：China
• Production Capacity：500sets,Month

Basic Info.

Warranty 24 Months Customized Customized Condition New Application Construction Machinery Use Rebar Straightening and Cutting Transport Package Wooden Box Specification 1400*520*840mm Trademark Yongchuang Origin China Production Capacity 500sets/Month

Product Description

High Efficiently Steel Rope Cutting Machine Machine introduction:The steel bar straightening and cutting machine is a tool specially used for steel bar cutting. It is one of the indispensable equipment for steel bar processing. The steel bar straightening and cutting machine is mainly used in the fixed-length cutting of steel bars in housing construction, bridges, tunnels, power stations, large-scale water conservancy and other projects. Compared with other cutting equipment, it has the characteristics of light weight, low energy consumption, reliable work and high efficiency. Therefore, it has been gradually adopted by mechanical processing and small rolling mills in recent years, and has played an important role in various fields of national economic construction.

The steel bar straightening and cutting integrated machine is mainly used for straightening and cutting to length cold-rolled ribbed steel bars for construction, hot-rolled grade III steel bars, cold-rolled round steel bars, and adjustable straight hot-rolled round steel bars. This machine has a high degree of automation, fast traction speed, continuous working mode, and is equipped with an automatic counting stop device, and has good safety performance. The wire surface after the straightening of this machine is basically free of scratches, low strength loss, and good straightness , At the same time, it has the characteristics of simple operation, convenient adjustment and cutting, simple blanking, and high efficiency.

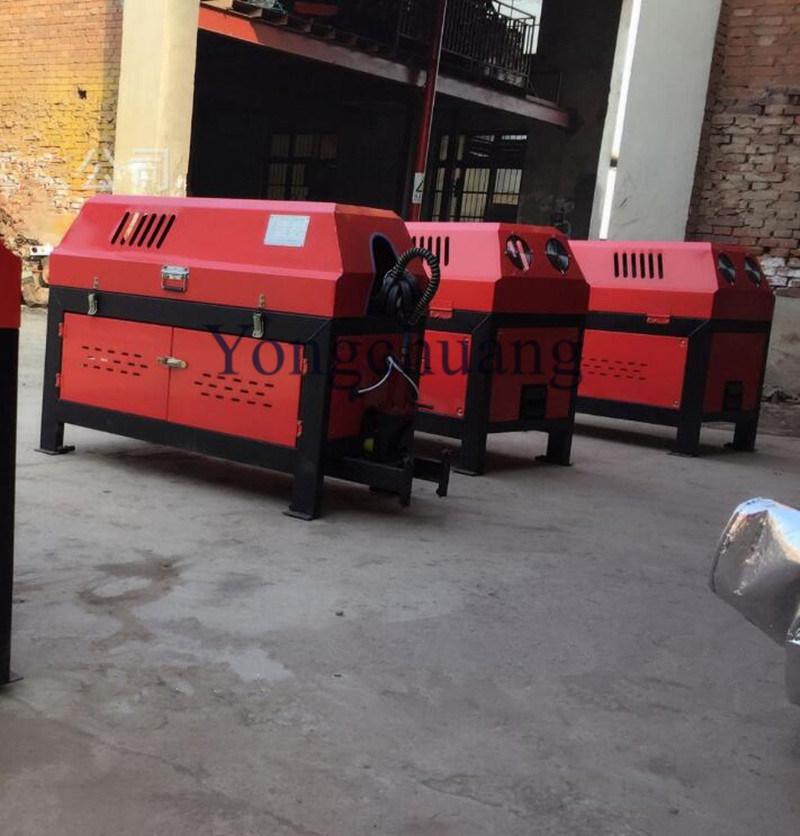

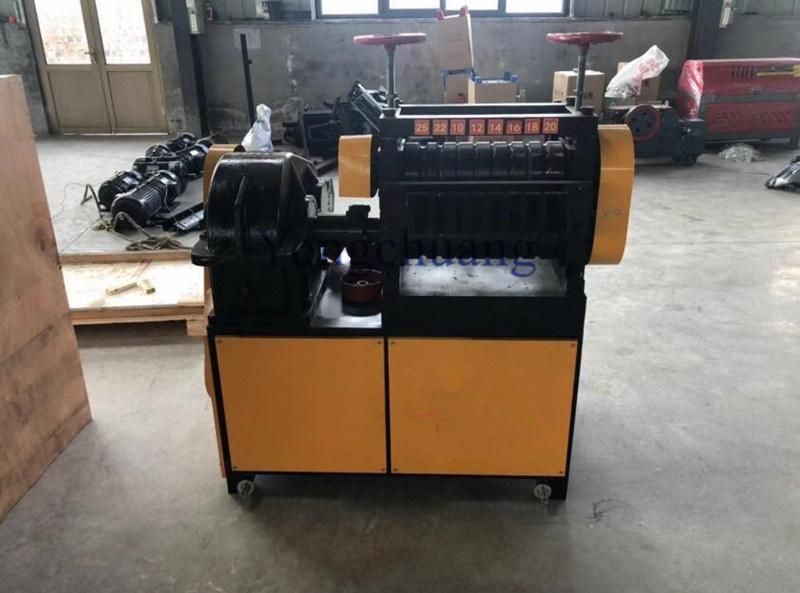

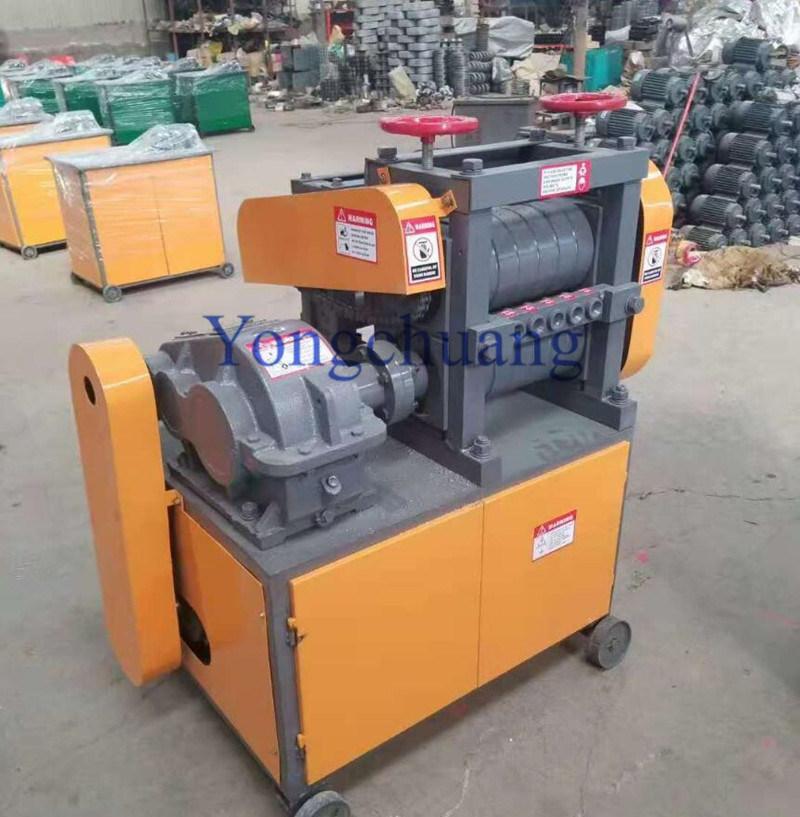

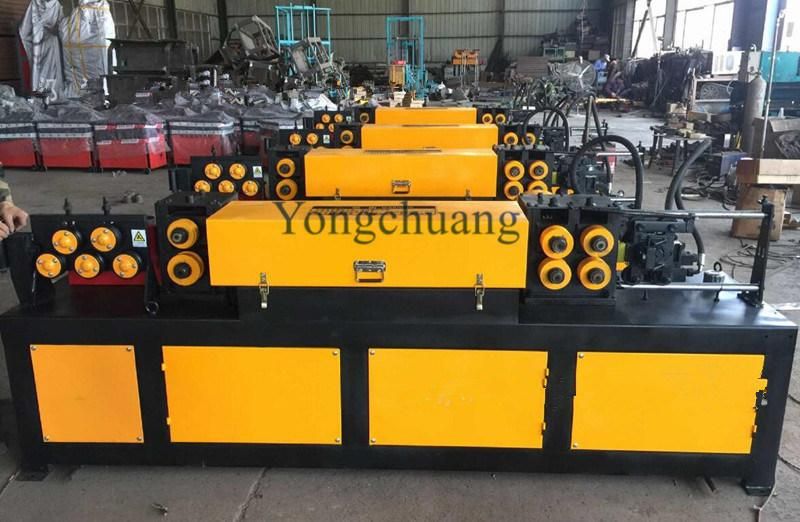

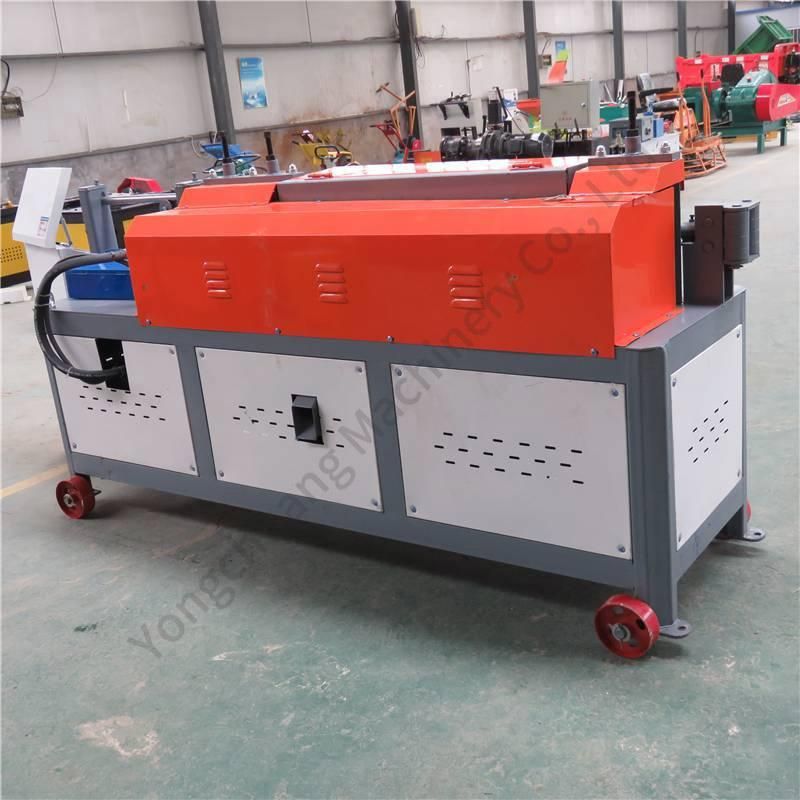

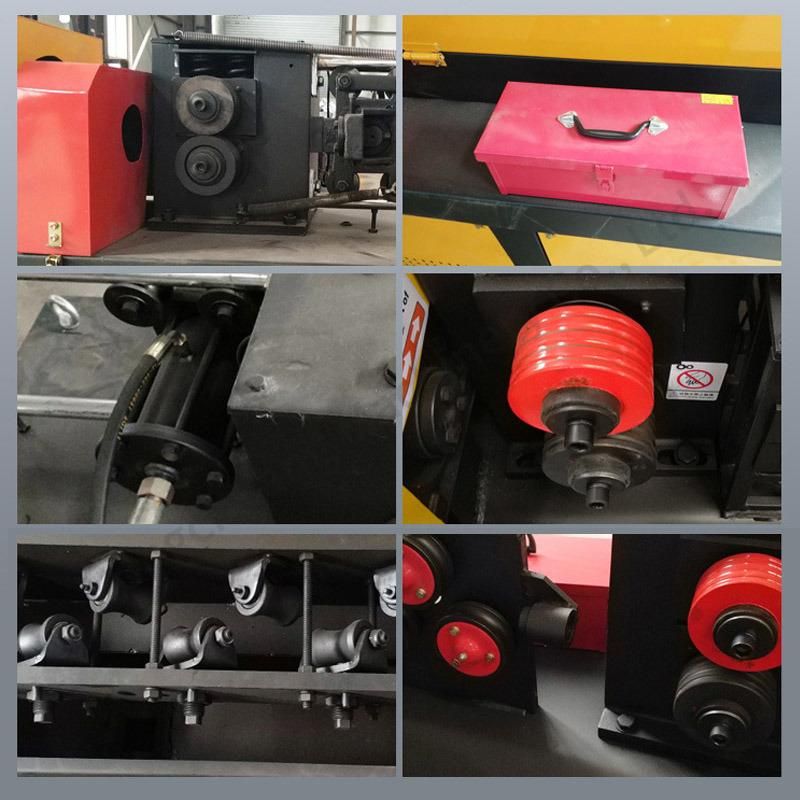

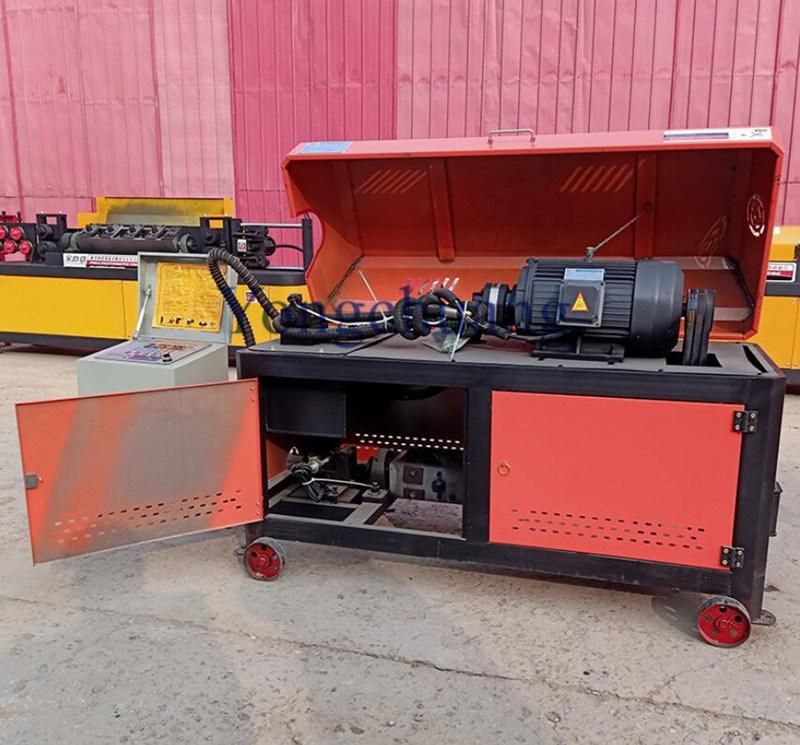

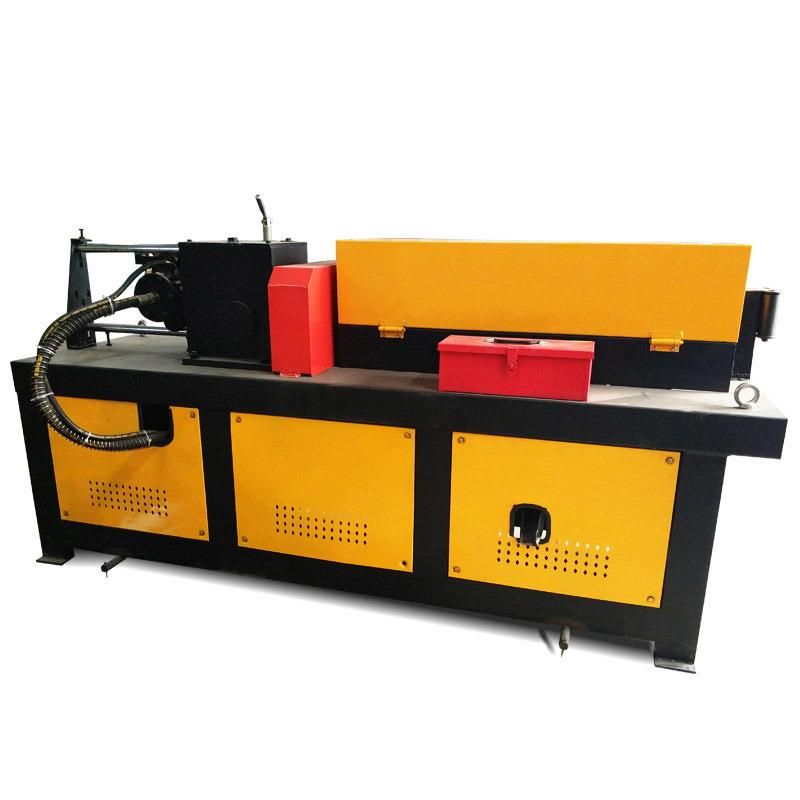

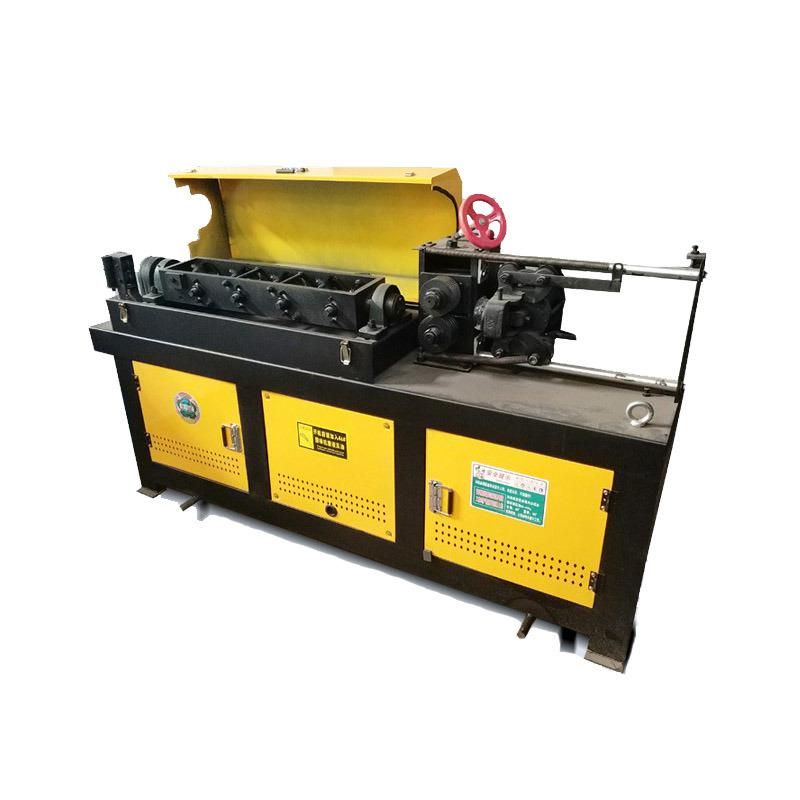

Machine Picture







Machine Parameters:

Model	Power(KW)	Round steel diameter(mm)	Screw thread steel diameter(mm)	Speed	Size(mm)	Weight
SC-TQ10	5.5	4-10	4-8	30-40M/min	1400*520*840	240Kg
SC-TQ12	9	4-12	4-10	40-50M/min	2100*600*1200	500Kg
SC-TQ14	16.5	4-14	4-12	45-55M/min	2950*700*1200	950Kg
