• Model NO.：HN-6000
• Package：Wooden Case
• out Frequency：50,60kHz
• Shipping Way：by Express and Sea
• Product Name：IGBT Switch DC Power Supply
• Transport Package：Wooden Case
• Specification：138kgs
• Origin：China
• HS Code：85044099
• Production Capacity：1000

Basic Info.

Model NO. HN-6000 Package Wooden Case out Frequency 50/60kHz Shipping Way by Express and Sea Product Name IGBT Switch DC Power Supply Transport Package Wooden Case Specification 138kgs Origin China HS Code 85044099 Production Capacity 1000

Product Description

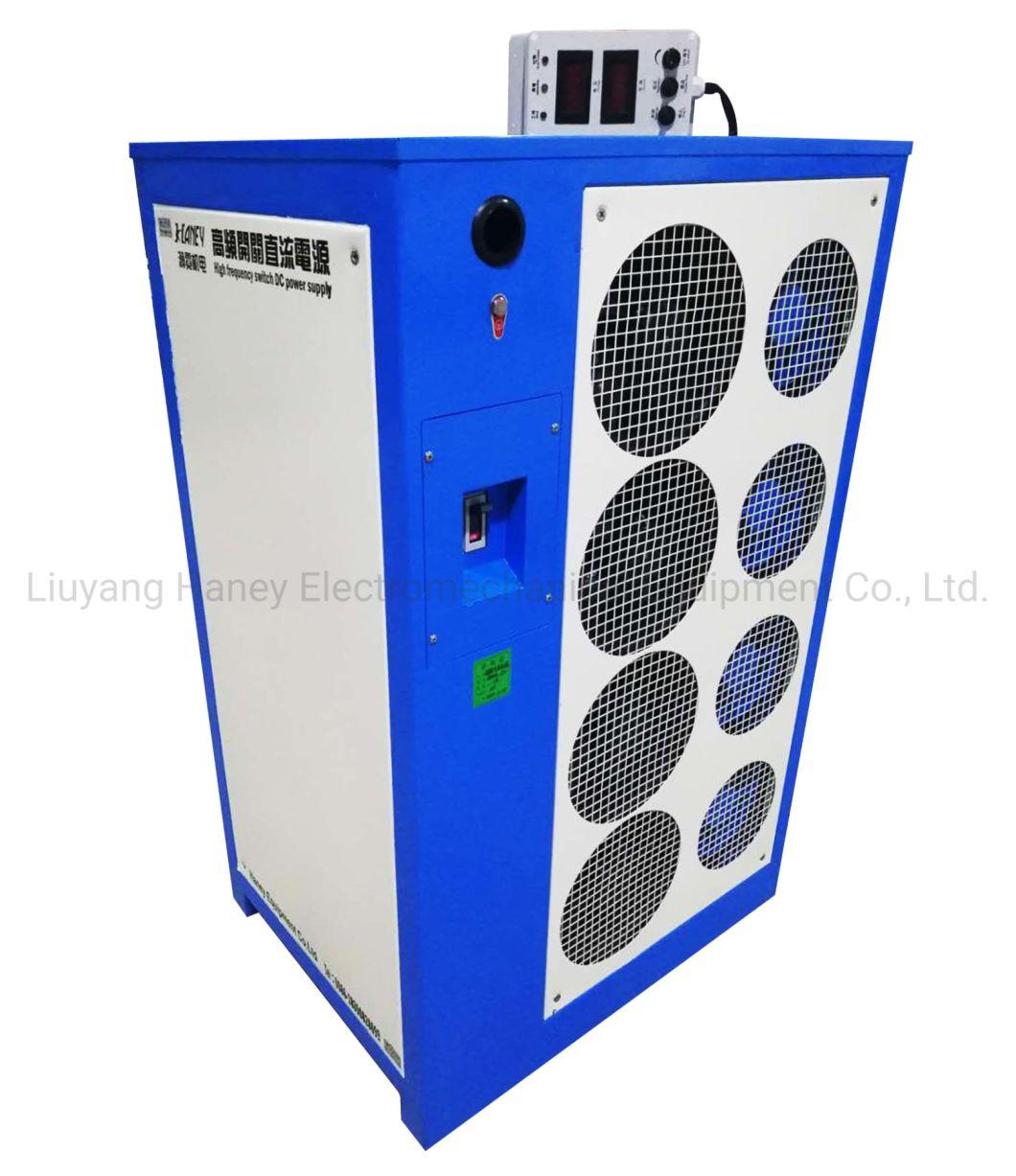

Haney adjustable DC power supply zinc electric coagulation electroplating DC rectifier with RS485

Haney manufacture electroplating equipment to customer specification for electroplating, anodizing, Galvanized, Hard chrome, electrophoretic coating, wastewater treatment- in fact almost any surface would be workable from the dc rectifier.

Product Description1.Infineon drive chip,Infineon IGBT,China SL nitrates,rectifier bridge,Germany;
2.Running state:24hours operation with a full load;
3.Full-bridge high-frequency;
4.Digital display,5m remote control;
5.CE approve;
6.Forced air or water cooling;
7.It protect against under-voltage,over-voltage,phase loss,short circuit,over-current and over-heating;
8.It is used for electrochemical finishing, metal surface treatment;
9.All specifications can be custom made as your requirement.

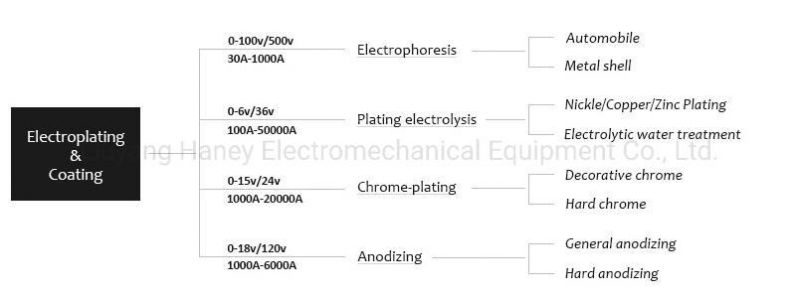

 Application:

Tech Specifications:

Input voltage	3-phase 380v/400v/418v/480v±15% or single-phase 110v/220v±15% 50Hz
Output rated value	Output current:0-30000A,Output voltage:0-300v adjustable
Cooling method	Forced air cooling/water cooling
Control accuracy	Less than ±1% of the rated value
Operation control mode	The stable voltage or current
Communication interface	According to customers' requirements, local/remote operation mode can be chosen, such as the controlled panel, control box, RS485, LCD Touch screen.
Rectifier mode:	IGBT inverter soft switch rectifier, 5% energy-saving comparing with common switch rectifier power supply, 15-25% energy-saving comparing with thyristor rectifier
