• Model NO.：PE-CUT-C2
• Type for Cutting Machine：Flame Cutting Machine
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：CE, ISO9001, FDA
• Trademark：Perfect
• Origin：China
• HS Code：8548900090
• Production Capacity：5000 Units, Year

Basic Info.

Model NO. PE-CUT-C2 Type for Cutting Machine Flame Cutting Machine Transport Package Export Sea-Worthy Packing or Air-Worthy Packing Specification CE, ISO9001, FDA Trademark Perfect Origin China HS Code 8548900090 Production Capacity 5000 Units/ Year

Product Description

 Cnc Automatic Plasma Cutter For Aluminum Sheet/Steel Iron Plate (Model: PE-CUT-C2)
 Flame/Plasma Cutting Machine Introduction:
The flame/plasma cutting machine can cut easily-oxidized metal, such as mild steel, carbon steel 3~200 mm with common precision. It is a method of cutting ferrous metals in which the metal is heated by a torch to about 800 degree and is oxidized by a stream of oxygen from the torch.
The flame/plasma cutting machine can cut both hardly-oxidized metal and easily-oxidized, such as stainless steel, brass, aluminium, zinc 1~60mm. Actually, the flame/plasma cutting machine system is CNC + plasma power supply. It is a process that is used to cut steel and other metals using a plasma torch. In this process, an inert gas (in some units, compressed air) is blown at high speed out of a nozzle; At the same time an electrical arc is formed through that gas from the nozzle to the surface being cut, turning some of that gas to plasma. The plasma is sufficiently hot to melt the metal being cut and moves sufficiently fast to blow molten metal away from the cut.
This is cantilever type; Cutting width is 1.4m, cutting length from 1.5m to 5m. It is a model intervenient of type-B2 and type-C1, and it has the advantages of both.


Flame / Plasma Cutting Machine Features:
1. The flame/plasma cutting machine design simple.
2. Bench-gantry structure, welding after the vibration aging treatment to eliminate stress, so that in the long-term use of no deformation.
3. All mechanical drive system using rolling bearings and precision machining accuracy as 6 GB of precision gears mesh with the rack
4. Planetary reduce drive system, its input and output error of only 16 arc minutes, at the same time, in the horizontal and vertical structure of the gear drive, an increase of automatic clearance compensation device so that it can accurately drive the structure of the implementation of the directives issued by the CNC.
5. Take the initiative to end beam: Vertical track for the introduction of automatic clamping device-oriented structure and there is no eccentric clamping structure, relying on automatic detachable power-oriented structure to make it two. In the track combined with the smooth running of the department will not have a wheel clamp tight or lax-phenomenon.
6. All the equipment look to see, such as steel, screws, using black or chrome handle.
7. Spray machine to use more advanced types of paint, the color demand on users.


Flame / Plasma Cutting Machine Technical Data:

Product  Name	CNC  Flame  Cutter  /  Plasma  Cutter	CNC  Flame  Cutter  /  Plasma  Cutter
Model  No.	PE-CUT-C1	PE-CUT-C2
lateral  rail  span	1200mm	1400mm
effective  incise  width	1200mm	1400mm
length  of  vertical  rail	1500mm	1500mm
effective  incise  length	1500mm	1500mm
auto-inflame	1  set	1  set
NC  cutting	1  set	1  set
controlled  switch	some	some
lifting  height  of  cutting	≤ 200mm	≤ 200mm
cutting  speed	0-3500mm/min	0-3500mm/min
roughness  of  cutting  surface	Ra≤ 12.5μ m	Ra≤ 12.5μ m
driving  system	three-phase  AC  motor  dual-driving	three-phase  AC  motor  dual-driving

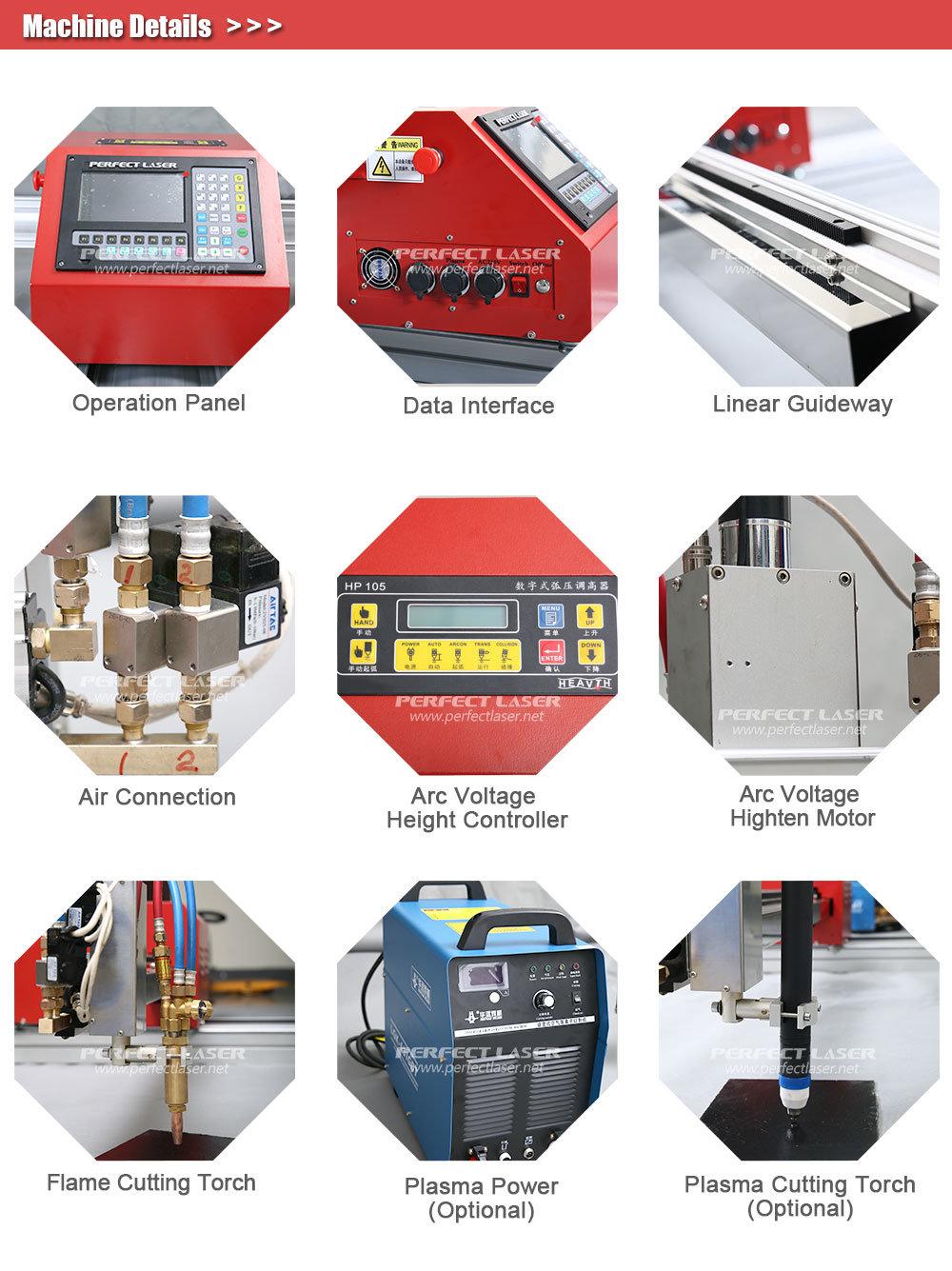

Flame / Plasma Cutting Machine Details:



Working Video, PDF detailed description and quotation will be sent to you upon  your inquiry!!! Contact me by >>>>>>>>>>>>>>>>>>>>>>>>>>
