H Profile Mild Steel Structure Beam Flange Straightening Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Installation
- Usage：H Beam Flange
- Voltage：380V
- Automatic Grade：Automatic
- Principle：Beam Deformation
- Certification：ISO9001, CE
Base Info
- Model NO.：JZJ
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Name：Heavy Beam Hydraulic Flange Straightening Machine
- Function：Beams Deformation Straightening
- Straightening Mode：Hydraulic
- Straightening Flange Thickness：60 mm
- Flange Width：180-800 mm
- Web Height：No Less Than 350 mm
- Straightening Speed：6.4 M,Min
- Power：35 Kw
- Straightening Material：Carbon Steel Q 345 Q 235
- Beam Model：H Beam I Beam Straightening
- Delivery：30 Days
- Optional：H Beam Welding and Assembly Machine
- Pump Motor：15 Kw
- Drive Motor：22 Kw
- Work for：Correction of H-Beam After Heat Treatment

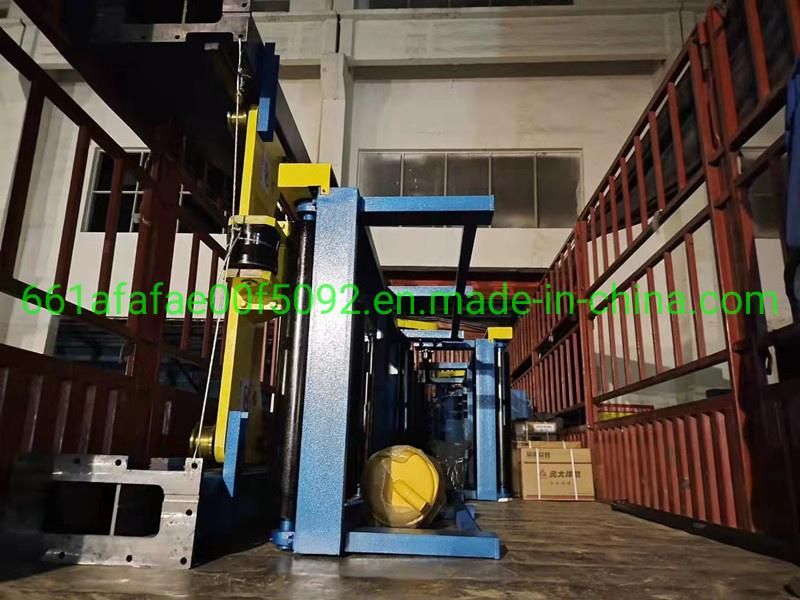

- Transport Package：Container Shipment
- Trademark：Lemar
- Origin：Jiangsu, China
- HS Code：8462291000
Description

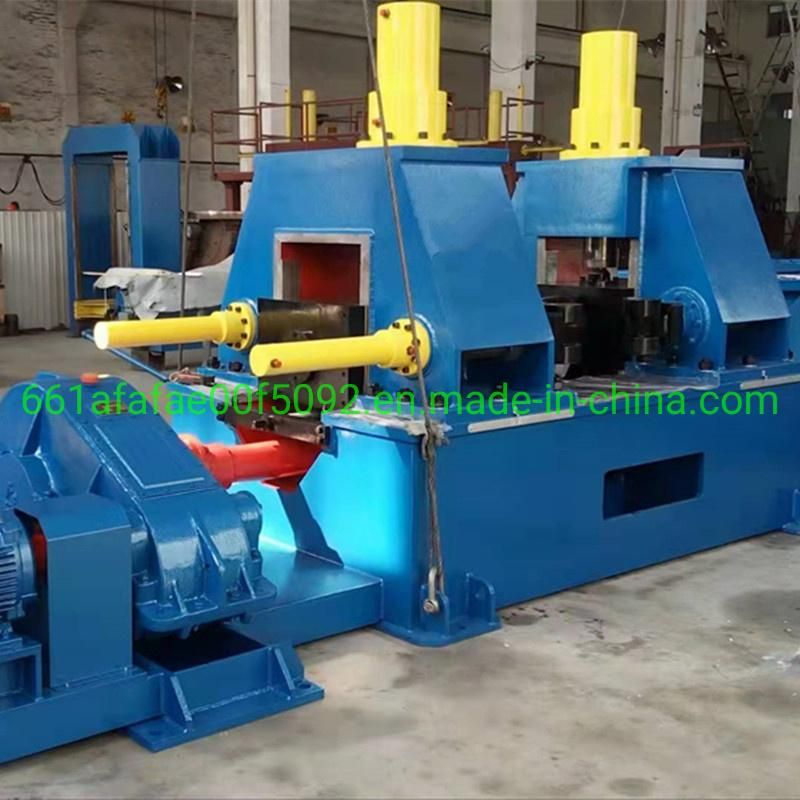

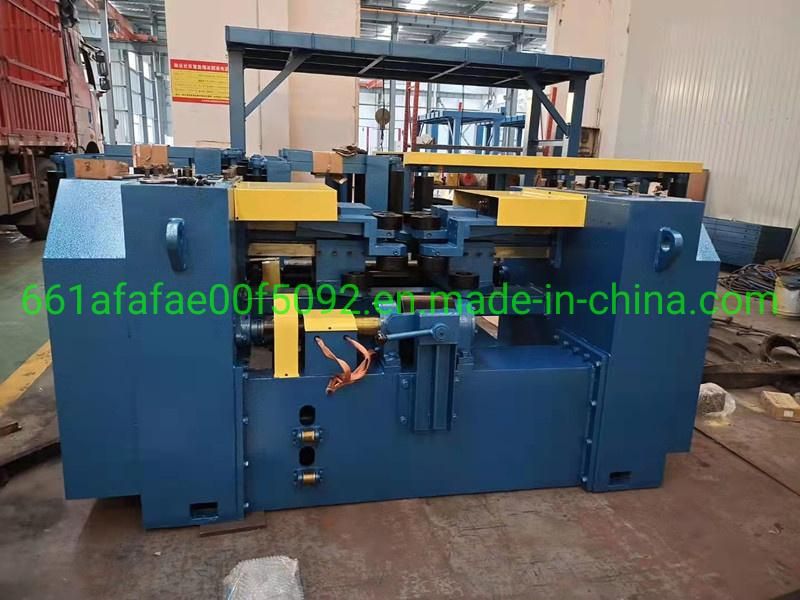

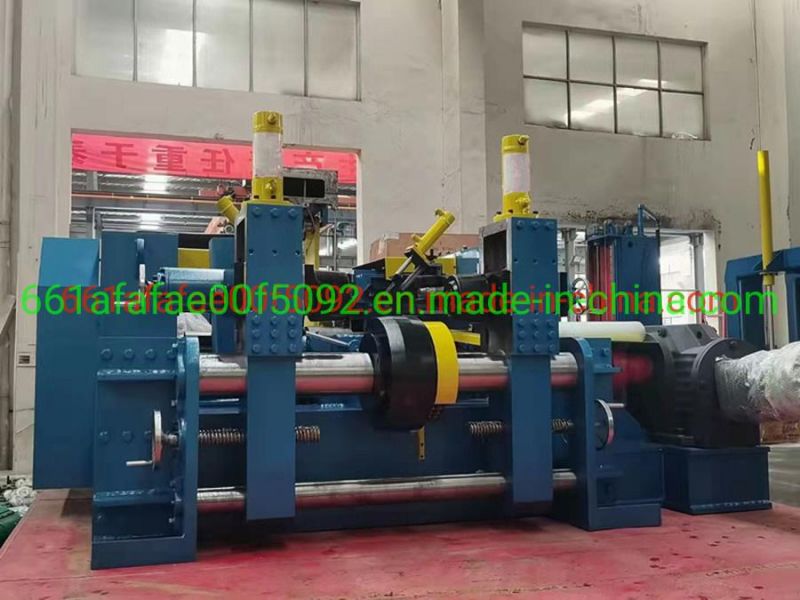

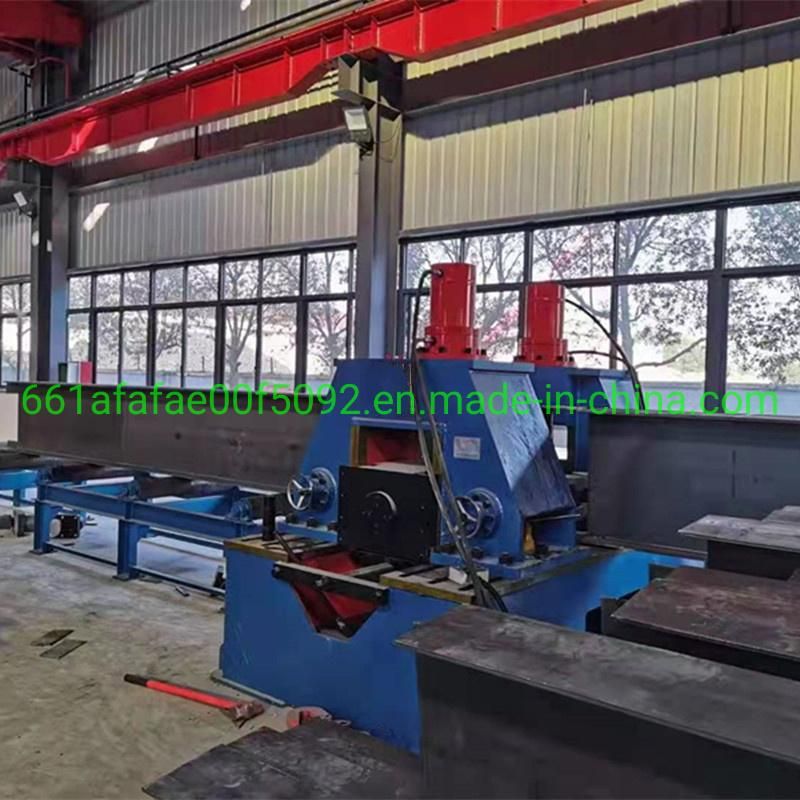

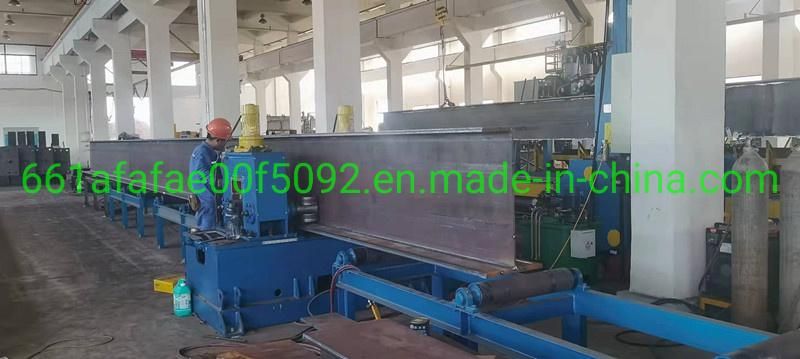

JZJ-60 H-beam flange straightening machine is a steel welding straightening equipment.

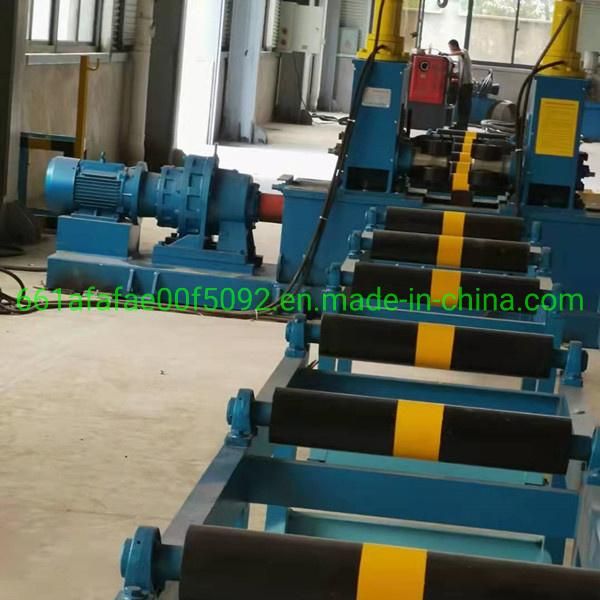

Its main drive system adopts 22KW large motor and cycloidal pinwheel reducer to drive, with high transmission efficiency and fast straightening speed.
All straightening rollers are made of high-quality alloy steel. Production, and through advanced heat treatment process, to avoid the defect that the parts are prone to cracks.
In order to ensure the stability of its correction and long service life, all H beam flange straightening machine parts are strengthened.
Specification: Model Max flange thickness Drive motor Straightening Speed Straightening Material Pump motor Straightening Mode Flange Width JZJ-60 60mm 22kw 6.4 M/Min Carbon Steel Q 345 Q 235 15KW Hydraulic 180-800 mm
Features:
1.H beam flange Straighteners are available mechanical and hydraulic.
2.The main electrical components of H beam flange straightening use the Famous brand.
3.There are lifting lugs on the base of H steel structure for easy lifting.
4.Post-weld heat treatment of main welding parts; sand blasting and rust removal before painting.
5.This product is reasonable in design, stable in operation and simple in operation.
Friends who have broad needs are welcome to consult and purchase.
Lemar machinery Equipment Co.,Ltd is committed to H beam Production line machine (PEB H BEAM FABRICATION MACHINES),Auto assembly machine,Submerged welding gantry type machine,Flange straightening machine,End face milling machine,Sand shot blasting machine,
And vessel tank pipe wind power fabrication line,consists of: Seam welding machine,TIG/MIG/MAG Seam welding rotator,welding positioner,welding manipulator,Straight seam welding machine,Circular seam welding machine,etc.
Please kindly visit our website and send mail call us!
