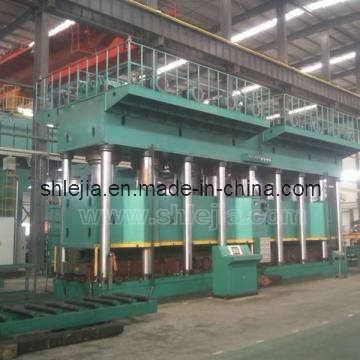

Pipe Production Line & Gwh Pipe Outside Welding Machine
Shanghai Lejia CNC Machine Co., Ltd.- Control Type：CNC
- Customized：Customized
- Condition：New
- Certification：CE, ISO9001
- Type：Pipe Production Line
- Application：Application:T Energy Supply Pipe
Base Info
- Model NO.：GWH
- Transport Package：Applicable for Shipment
- Specification：GWH-50,1422X12200
- Trademark：SLJS
- Origin：Shanghai, China
- Production Capacity：100PCS,Year
Description
Basic Info.
Model NO. GWH Transport Package Applicable for Shipment Specification GWH-50/1422X12200 Trademark SLJS Origin Shanghai, China Production Capacity 100PCS/YearProduct Description
The machine is used to weld the outside welding seam of pipe. In the process of outside welding, pipe is transferred shock-free and vibration-free on a transfer carriage in order to produce a constant weld seam quality. The cross sliding guide is equipped to welding head position of welding machine, which can effect a micro-adjustment in the horizontal and vertical direction in the process of welding so as to control welding seam centering of welding head. Welding speed 0.12~1.2m/min.| Model Name | GWH-50/1422× 12200 | GWH-50/1460× 12200 |
| Mode of welding | Automatic arc welding | Automatic arc welding |
| Pipe diameter (mm) | 360~1422 | 360~1460 |
| Wall thickness (mm) | X80≤ 40; Q345≤ 40 | X80≤ 40; Q345≤ 40 |
| Welding length (mm) | 8000~12200 | 8000~12000 |
| Material (mm) | Q345, X42~X80 | Q345, X42~X80 |
| Wire number | 2 ~5 | 2 ~5 |
| Wire diameter (mm) | 3.2~4.0 | 3.2~4.0 |
| Welding speed (m/min) (variable frequency speed control) | 0.5~3 Stepless speed regulation | 0.5~3 Stepless speed regulation |
| Carriage speed (m/min) (variable frequency speed control) | 0.5~25 Stepless speed regulation | 0.5~10 Stepless speed regulation |
| Carriage power (kw) | 18.77 | 18.9 |
| Speed of turning roller (m/min) | 0~9.9 Frequency control of motor speed | 4.55 |
| Welding seam precision (mm) | Cross weld ± 0.5mm Vertical weld ± 0.5mm | Cross weld ± 0.5mm Vertical weld ± 0.5mm |
| Lifting height of cantilever (mm) | ≥ 200mm | ≥ 200mm |
| Lifting height of earthing device | ≥ 1500mm | ≥ 1500mm |
| Retreating distance of machine (mm) | ≥ 20000mm | ≥ 20000mm |
| Fluctuation of current and voltage | Current≤ 1%, Voltage≤ 7% | Current≤ 1%, Voltage≤ 7% |
| Welding method | Fixed welding point and moving pipe | Fixed welding point and moving pipe |
| Adjusting range of current (A) | DC240~1500A AC240~1200A | DC240V~1500A, AC240~1200A |
| Adjusting range of voltage (V) | DC24V~46V, AC24V~44V | DC24V~46V, AC24V~44V |
| Production efficiency (pcs/min) | 1/12 | 1/12 |
| Overall dimensions(L× W× H) (mm) | 32180× 5000× 3500 | 31000× 5000× 3500 |
| Weight (kg) | 31000 | 31000 |
