• Model NO.：PX1200
• HS Code：84798110
• Production Capacity：50sets

Basic Info.

Model NO. PX1200 HS Code 84798110 Production Capacity 50sets

Product Description

Very easy to use.
Suitable for SWG with or without inner ring, diameter from 200mm to 1600mm;
Cixi Flyseal Co., Ltd was established in 1999, located in Cixi city Ningbo China, on the south end of the worldwide famous Hangzhou Bay Cross-sea Bridge, only 100km to Hangzhou and Ningbo airport. It's very convenient for transport and arranging shipment to worldwide. The company possesses a plant area of more than 5, 000 square meters with over 100 employees. We're specialized in researching, developing and manufacturing all kinds of gasket machines and sealing materials for more than 10 years.

Specification as following: :

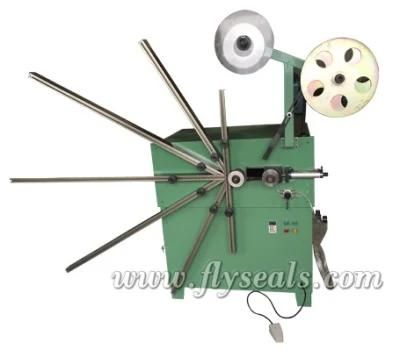

STYLE	PX1200 Vertical big size winding machine
Producing ability	spiral wound gasket with or without inner ring
SWG thickness	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD	1600mm
Minimum gasket ID	200mm
Gasket OD tolerance	±0.8mm
Total power	2.2kw
Spindle motor power	1.5kw
Frequency Converter	2.2G
Power supply voltage	380V/220V for option, 3 phases
linear speed	0-800mm/s
Air compressor	0.6_0.8 MPA
Machine measurement	2200*850*1800mm
Machine net weight	220 kg
