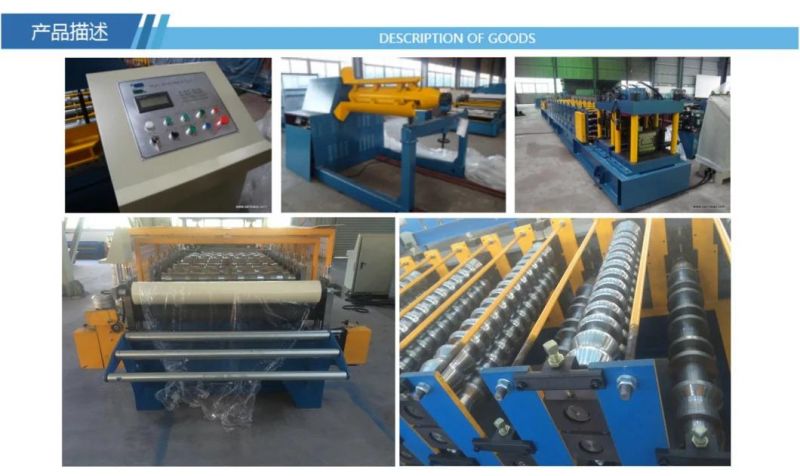

Corrugated Tile Steel Roof Cold Roll Forming Machine
Hangzhou Santiway International Co., Ltd.- Type:Rolling Machine
- Forging Forming Method:Mold Forging
- Power Source:Electric
- Feature:Automation
- Certification:CE
- Warranty:24 Months
Base Info
- Model NO.:STW
- Customized:Customized
- Advantage:Simple Structure
- Condition:New
- Suitable Material:Q235,Q345,G550 for Gi,PPGI,Gl,PPGL
- Suitable Thickness:0.4mm~0.7mm
- Machine Type:Cold Roll Forming Machine

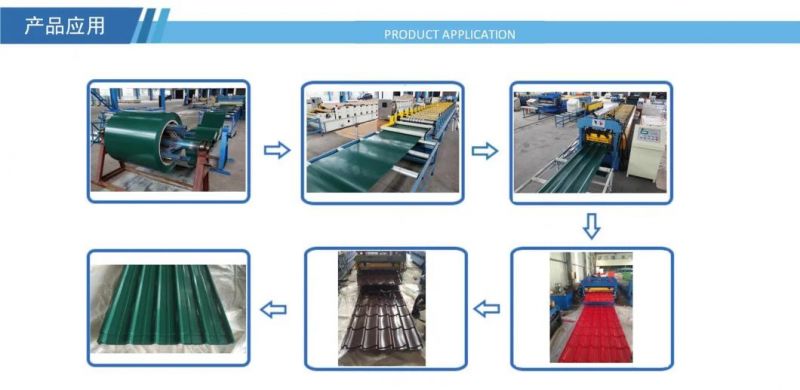

- Final Product:Metal Tile,Roof Tile,Corrugated Sheet,Purlin
- Main Motor Power:3kw
- Control System:Mitsibishi PLC
- Forming Speed:15m,Min
- Transport Package:Sea Package
- Specification:CE
- Trademark:STW
- Origin:China Mainland
- HS Code:8845210
- Production Capacity:10 Sets Per Month
Description
itemParameter(all is subject to our final design) 1
Suitable raw material Type Common galvanized & pre-painted steel Yield strength 235MPa(or other high strength steel) Thickness(mm) 0.4-0.7 width(mm) According to final design 2 Manual uncoiler's capacity Max.5tons 3 Forming speed(m/min) About 18-20m/min 4 Main motor power(KW) 7.5kw 5 Hydraulic power(KW) 3kw 6 Forming roller groups Around19-20 groups 7 Raw material of forming roller High quality No.45 steel 8 Raw material of cutting blade Cr12mould steel with quenched treatment 9 controlling system Mitsubishi PLC& converter 10 Suitable industrial voltage According to your special requirement 11 Machine dimensions(L*W*H) 6.8m×1.8m×1.52m 12 Machine weight About 9-10tons
