• Model NO.：D-600
• Thickness：10-80G,M2
• Transport Package：Container
• Specification：CE,ISO
• Trademark：SUNTECH
• Origin：China
• HS Code：8543300090
• Production Capacity：100sets,Year

ItemDecriptionSpecification1Steel trip dimensionThickness*Width
((0.18-0.7mm)*600mm)2Zinc coating layer thickness10-100 g/m23Max. running speed6m/s4Power80KW5Length25m

2. Process flow

Strip pay off → Tension frame → Strip stock → Electrolytic degreasing → First water washing → Second water washing → Neutralizing → Acid pickling →First water washing →Second water washing → Third water washing → Galvanizing →First water washing →Second water washing → Third water washing →Passivation → Water washing → Hot water washing → Drying → Strip stock →Tension frame → Strip take up

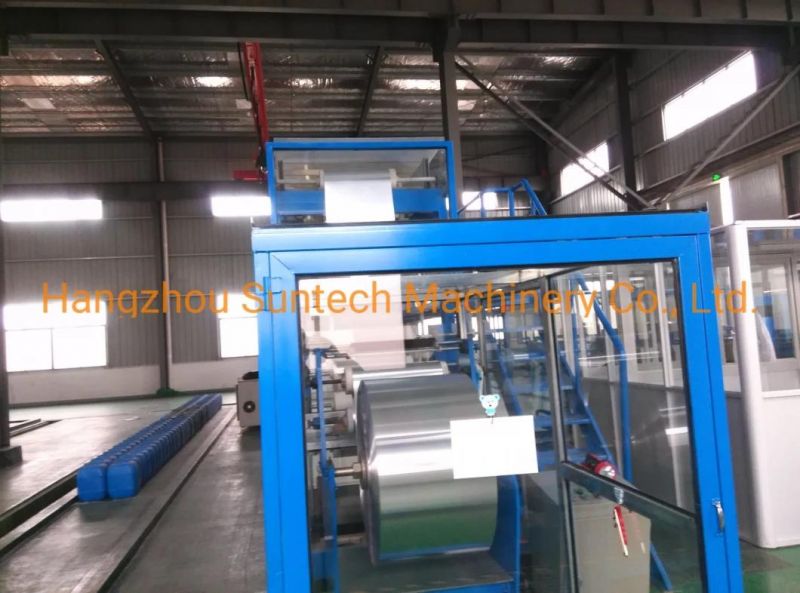

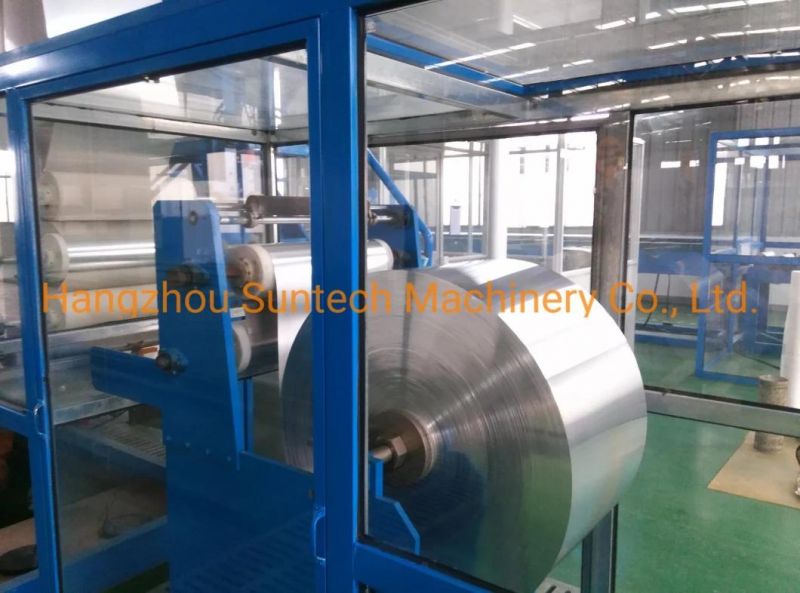

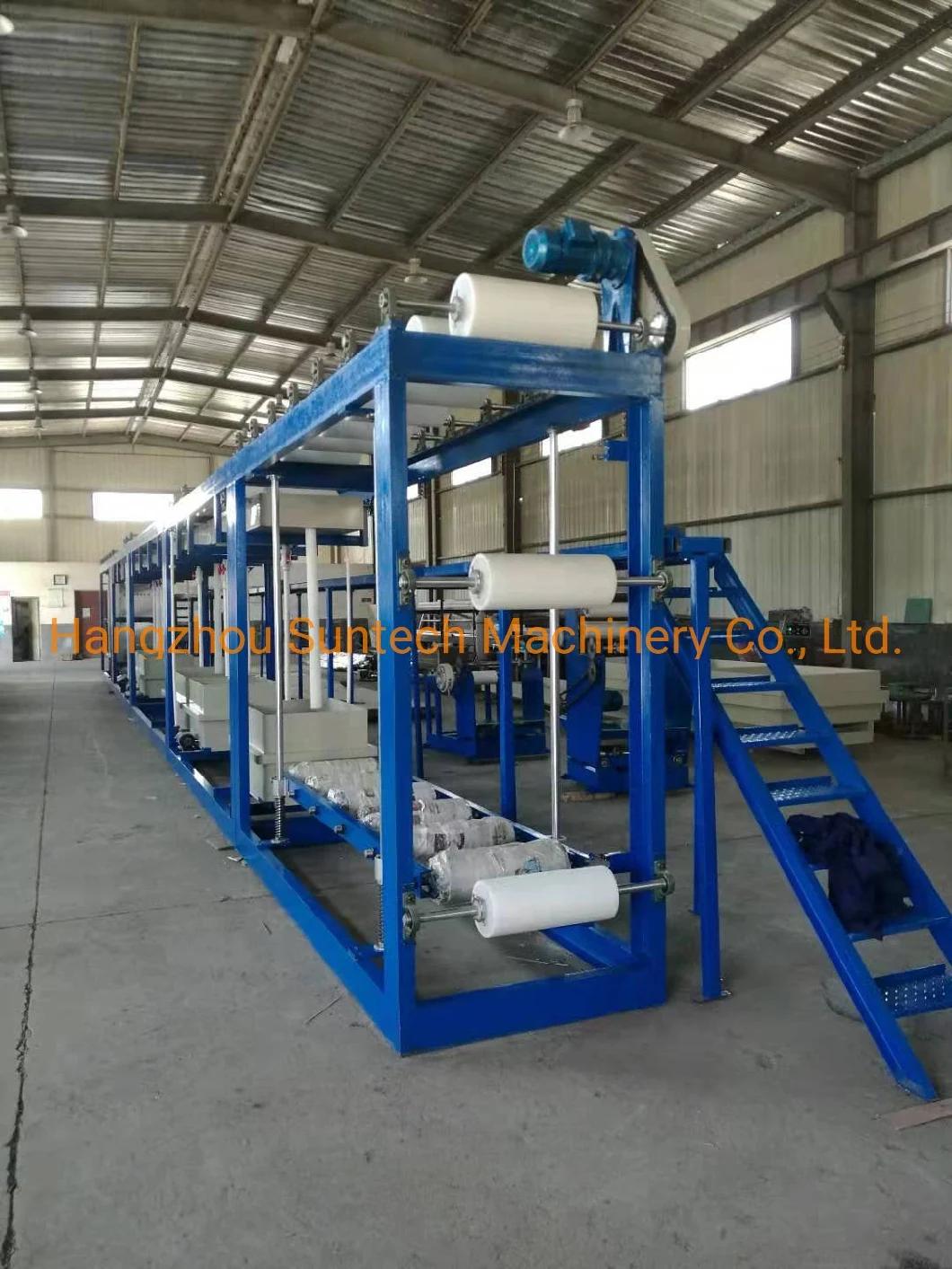

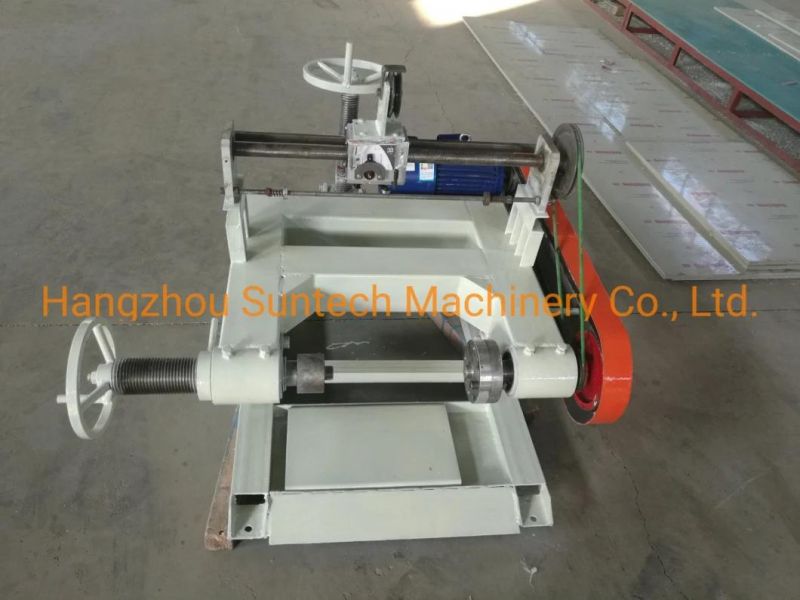

3. Photos



4. Packaging & Shipping

We can pack it by pallet, or according to the customers' specific requirements.


5. Our Services

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
All the products of our company have already been widely used in metal products area.
