• Model NO.：as the drawing
• Application Range：Hot Piercing Pipe Mill
• Transport Package：Wooder Case
• Specification：Export package
• Trademark：FANGLE
• Origin：China
• Production Capacity：6000 Tons,Year

Basic Info.

Model NO. as the drawing Application Range Hot Piercing Pipe Mill Transport Package Wooder Case Specification Export package Trademark FANGLE Origin China Production Capacity 6000 Tons/Year

Product Description

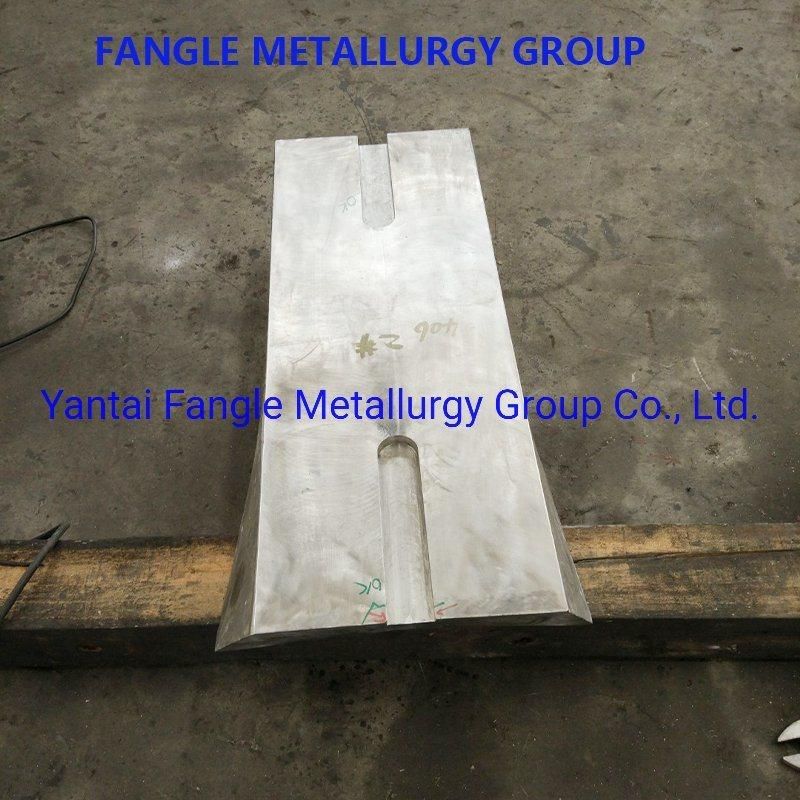

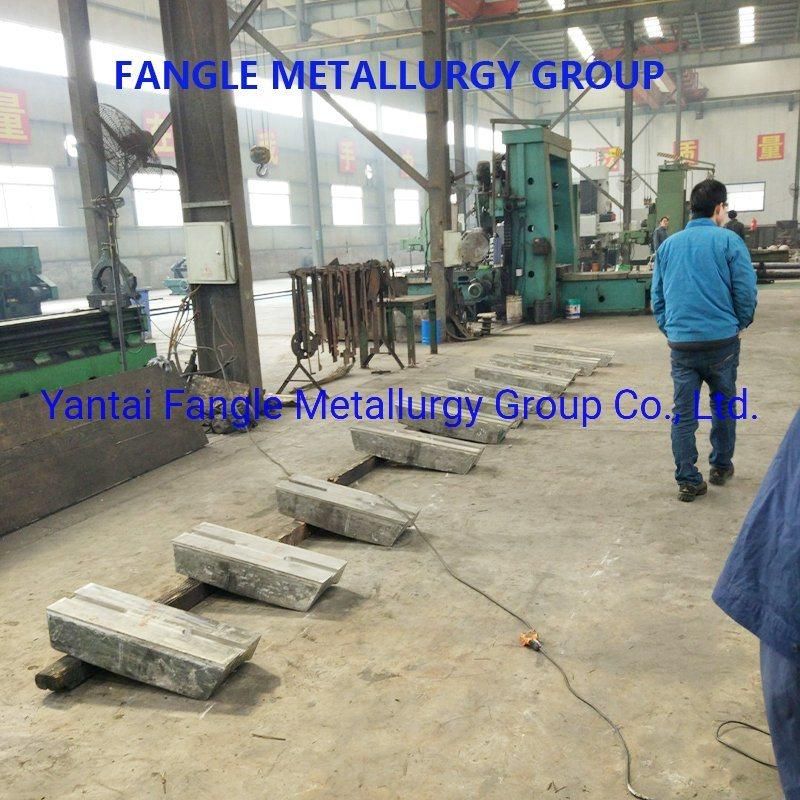

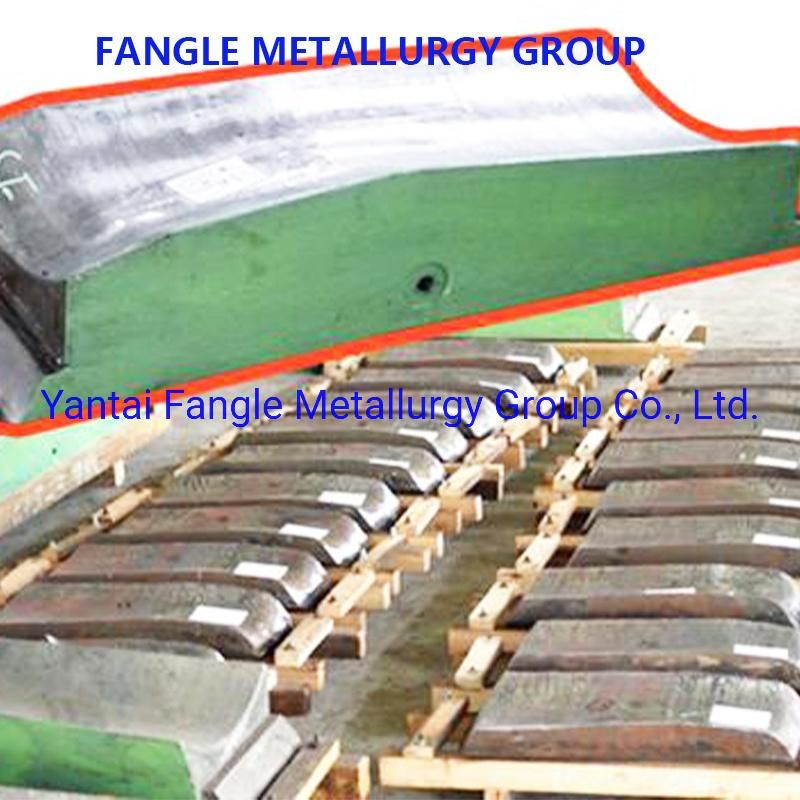

High carbon Cr-Mo-V Piercing Guide Shoe
Description
Piericing guide plate or Piercing guide shoe is the key vulnerable spare part in the production of seamless steel tube. Its quality and service life directly affect the quality of the final product.
Guide plate composition: inlet cone, compression belt, exit cone.
Inlet cone: guide the billet so that the Central Line of the billet is aligned with the Central Line of the piercing .The ellipticity of the billet is restricted to avoid forming the pass so early.Promote the longitudinal extension of the metal.
Exit cone: limit cross deformation of billets, control outer diameter of billets after rolling.
Compression band: reduces the ellipticity of the billet at the beginning of rolling on the top, reduces the axial resistance of the guide plate, and provides piercing speed.Production process : ·Casting ·Finish machining ·Package Quality Assurance : ·MT and Size report will be supplied .




Customer visit
