Yarn Braiding Machine

Comflex Industrial Co., Ltd.
  • Name：16 Single Decker Braiding Machine
  • Wire Diameter：:0.3mm To1.0mm
  • Gbg24- Gbg128：Braiding ID4 Till 400mm
  • ID of The Braids：4mm to 600mm
  • No.of Spindles：16 to 128 Spindle Braiding Machine
  • Material of Wires：:Stainless Steel,Galvanized Carbo

Base Info

  • Model NO.：comflex
  • Application：for Metal Hose,Rubber Hose
  • Payment Term：T,T
  • Package：Standard Export Package
  • Warrant：One Year
  • Transport Package：Standard Seaworthy Package
  • Specification：GBG16 till GBG128 carrier
  • Trademark：HLT
  • Origin：Jiangsu, China
  • HS Code：844790900
  • Production Capacity：500 Sets,Year

Description

Basic Info.

Model NO. comflex Application for Metal Hose,Rubber Hose Payment Term T/T Package Standard Export Package Warrant One Year Transport Package Standard Seaworthy Package Specification GBG16 till GBG128 carrier Trademark HLT Origin Jiangsu, China HS Code 844790900 Production Capacity 500 Sets/Year

Product Description

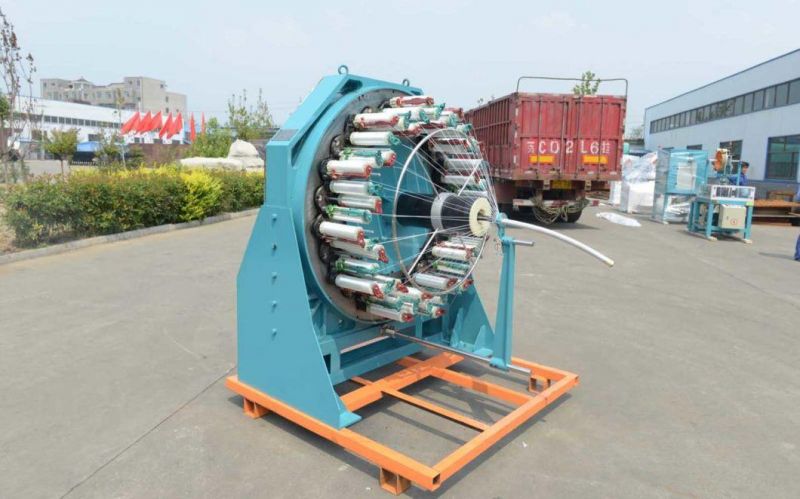

 Yarn Braiding Machine
Yarn Braiding Machine

I.Technical Parameter:
  1. Electric motor(Servo motor);1.5KW x 2, The speed is stepless adjustable.
  2. Also can choose to configure ordinary motor for frequency control of motor speed.
  3. Dimension: Length x Width x Height : 1500 x 1160 x 1580mm
  4. Drive plate diameter: 140mm
  5. Drive plate rotational speed:180r/min, stepless adjustable
  6. Spindle speed:0-20 r/min, stepless adjustable
  7. Independent thin oil lubrication system
  8. Braiding center height: 1 meter
  9. 9. Bobbin Dimension: Φ70 x Φ21x Φ210

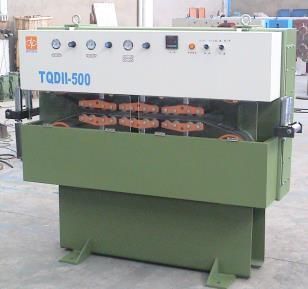

II.Traction machine

Yarn Braiding Machine Yarn Braiding MachineThe machine is used with yarn braiding machine.

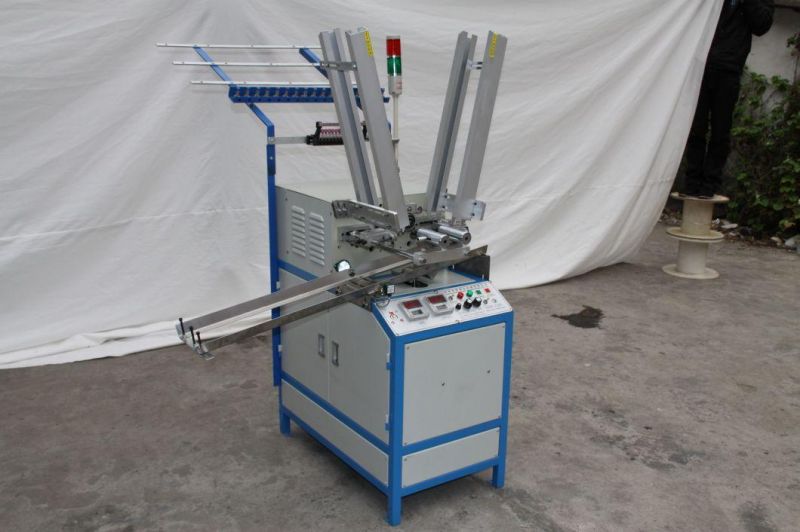

III. Automatic spinning machine(bobbin winding machine)
Yarn Braiding Machine
