Top Sale Ce Certification CNC Plasma Sheet Metal Cutting Machine
Dezhou Sean CNC Equipment Co., Ltd.- Layout：Coaxial
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Base Info
- Model NO.：SuperFast 1530
- Automatic Grade：Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting
- Name：CNC Plasma Cutting Machine
- Cutting Thickness：0.5-40mm
- Cutting Speed：100-12000 mm,Min
- Cutting Accuracy：±0.5mm
- Drive：Stepper Motor
- Nesting Software：Startcam
- Control System：Fangling F2300b
- Plasma Power Source：Huayuan,Seanior,Hypertherm
- Application：Industrial Metal Cutting
- Transport Package：Wooden Box Package
- Specification：1500*3000mm
- Trademark：Seanior
- Origin：China (Mainland)
- Production Capacity：400 Sets,Year
Description
Basic Info.
Model NO. SuperFast 1530 Automatic Grade Automatic Power Source Electric Cutting Mode Plasma Cutting Name CNC Plasma Cutting Machine Cutting Thickness 0.5-40mm Cutting Speed 100-12000 mm/Min Cutting Accuracy ±0.5mm Drive Stepper Motor Nesting Software Startcam Control System Fangling F2300b Plasma Power Source Huayuan/Seanior/Hypertherm Application Industrial Metal Cutting Transport Package Wooden Box Package Specification 1500*3000mm Trademark Seanior Origin China (Mainland) Production Capacity 400 Sets/YearProduct Description

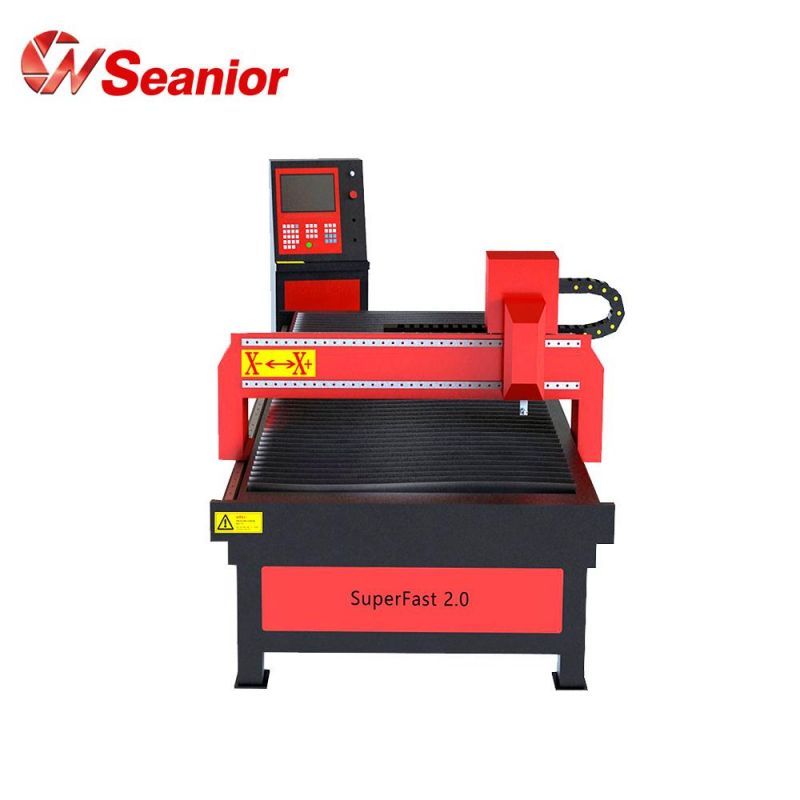

Product Presentation:Top Sale CE Certification CNC Plasma Sheet Metal Cutting Machine
(CNC Plasma Cutting Machine SuperFast 1530)
Low cost plasma and cutting machine | Fast, Accurate, Long work hours
* High quality, low cost, maximum productivity
* Easy to use
* Precision cut quality
* Fast, reliable and long work hours
Product Feature:
Top Sale CE Certification CNC Plasma Sheet Metal Cutting Machine
(CNC Plasma Cutting Machine SuperFast 1530)
Low cost plasma cutting machine | Fast, Accurate, Long work hours
Product Advantages:
Compact construction, SuperFast is your best choice to cut sheet metal at low cost while achieving accurate cutting quality at the same time.
Integrated machine body, sophisticated moving parts and intelligent torch lifter device minimizing non-productive time and guarantee you long period use.
Fast, Accurate, Superior edge quality, SuperFast cutting table provides superior performance and entry-level price.
Product Parameters:
| Technical item | Technical parameters |
| effective cutting width | 1500mm |
| effective cutting length | 3000mm |
| material thickness | 0.5-40mm |
| torch lifter vertical traveling distance | ≤120mm |
| cutting precision | ±0.5mm |
| cutting speed | 100-12000mm/min |
| linear repeating accuracy | ±0.2 mm |
| plasma power | 63A (90/125/160/200A for option) |
| plasma source | Huayuan or Hypertherm |
| duty cycle | 24h |
| temperature of the working environment | -20~55ºC |
| material to cut | mild steel, stainless steel, alloy, aluminum, copper, titanium and other non-ferrous metal |
Machine configuration:
| cutting method | plasma cutting |
| movement rail track | double axle linear rail track |
| movement motor/motion controller | full digital servo motor/high-precision stepping motor |
| distance-adjusting system | plasma arc voltage automatic height adjustment |
| control system | industrial anti-dust numerical control |
| general nesting software | Pronest,Starcam,Fastcam |
| anti-collision system | 360°anti-collision protection method |
| elevating body | ball screw / electronic push rod |
| plasma cutter | USA brand or China HUAYUAN LKG series or Customized |
| dust and fume extractor | fan machine |
| connecting power source | plasma power supply AC380V/50HZ, machine body power supply AC220V/50HZ |

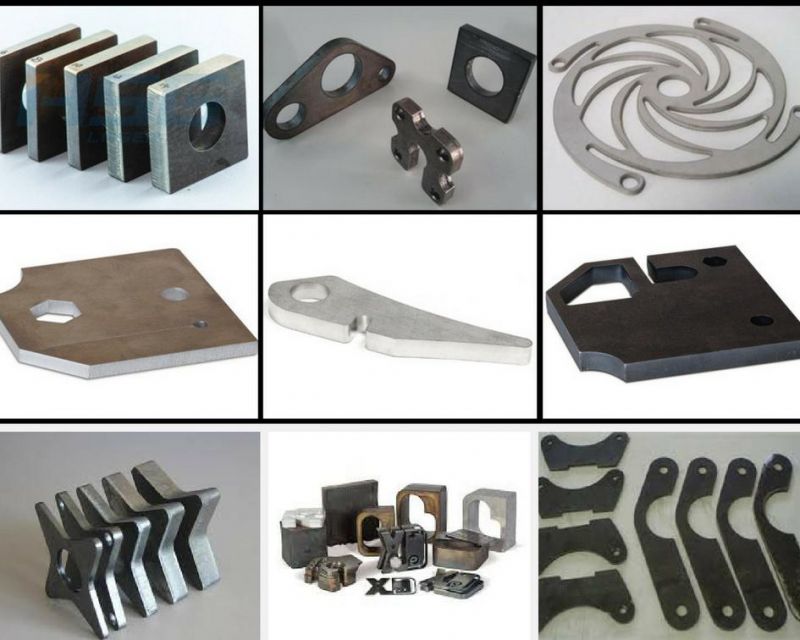

Cutting Sample:

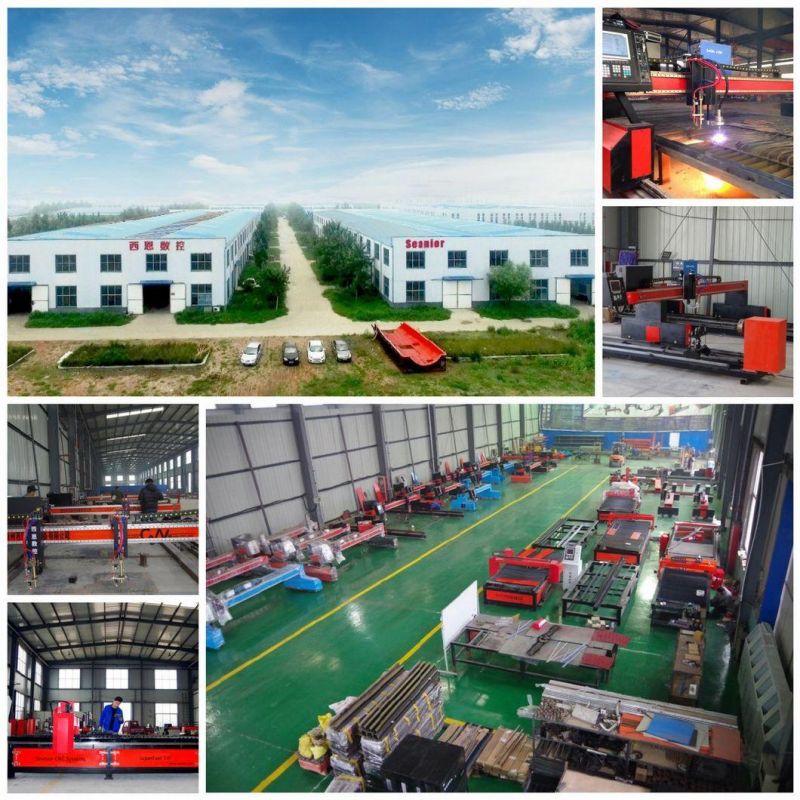

Seanior CNC Systems:
Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.
Why you Choose Seanior CNC Systems?
Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.
1. 12 months warranty for the whole machine.
2. Technical support by phone, email 24/7.
3. English version manual and operation tutorial video.
4. Engineer available to service machinery overseas.
Packing & Delivery:
Packing Details: wooden case, standard export packing
1.Outside package:Standard marine export plywood cases for table.
2.Inner package:Stretch film and plastic film for humidity.
3.We can package according to your requests.
