Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line

Hangzhou Suntech Machinery Co., Ltd.
  • Type:Coating Production Line
  • Coating:Galvanized
  • Substrate:Steel
  • Certification:ISO
  • Condition:New
  • Usage:Bing Wire,Mesh Wire,Nail

Base Info

  • Transport Package:Seworthy Packing
  • Specification:30m
  • Trademark:SUNTECHMACH
  • Origin:China
  • HS Code:8543300090
  • Production Capacity:10 Set,Month

Description

Basic Info.

Transport Package Seworthy Packing Specification 30m Trademark SUNTECHMACH Origin China HS Code 8543300090 Production Capacity 10 Set/Month

Product Description

Specifications
1.Single wire galvanizing line with best quality
2.Diameter Of Wire: 1.0~4.0mm
3.For Low Carbon Annealed Wire
4.Have Little Pollution
5.High Efficiency


I. The production process
Upper head wire pay-off→ Tension →Electrolytic acid pickling →Water washing →Bright zinc coating →Water washing → Hot water washing →Baking→ Wire take-up.


II. Introduction of chief parts
A. Electrolytic acid pickling part: PP plats with thickness 10-15mm is use for tank body making, whole body is made in close type, acid resistant stainless steel made roller φ300mm, magnetic pump is used for liquid circulation, rectifier 500A/12V use for electrolytic acid pickling.
B. Galvanizing part: PP plats with thickness 10-15mm is use for tank body making, whole body is made in close type, acid resistant stainless steel made roller φ400mm, acid resistant pump is used for liquid circulation, rectifier 1000A/12V is used for zinc coating, anode is made of 4*45mm Ti plate. Towing motor is 5.5KW.
C. Baking part: Short circuit heating and voltage regulator for temperature adjusting are adopted, temperature control is very easy and have little energy consumption.
D. Wire take-up: φ550mm spools for wire take-up, torque motor 40N·m offer stable tension force control.
E. Total length of whole machine: 12m.
F. Production speed: 100-120m/min, speed can be adjusted by frequency conversion motor.

III. Advantage of this production line
A. The total length of production line is very short, no need large space of workshop
B. Needed little zinc block and chemical raw material, which can reduce needed circulating funds.

C. The zinc coating quality of steel wire is also easy for control.
D. Have little pollution, high efficiency, and little investment.
E. One machine only need one operator.

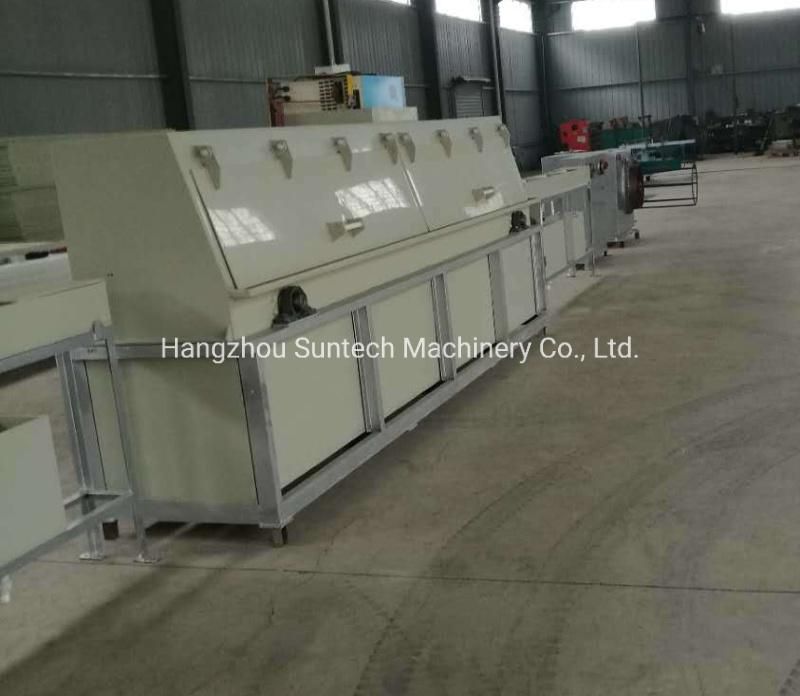

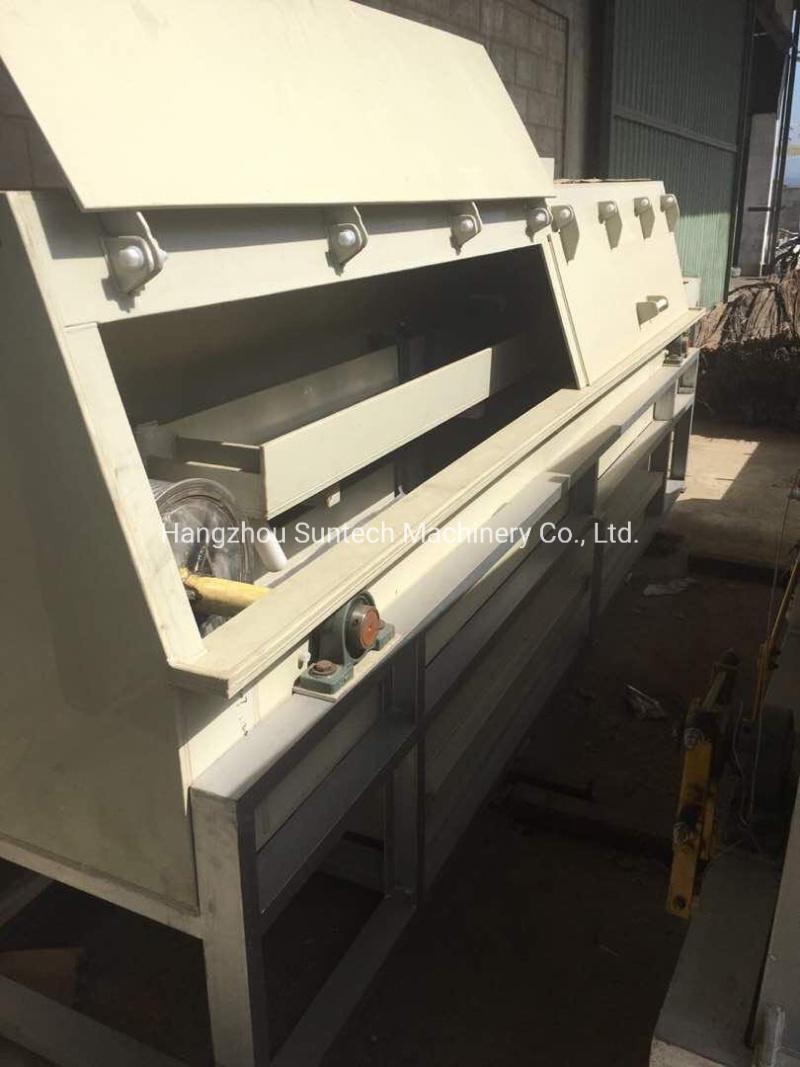

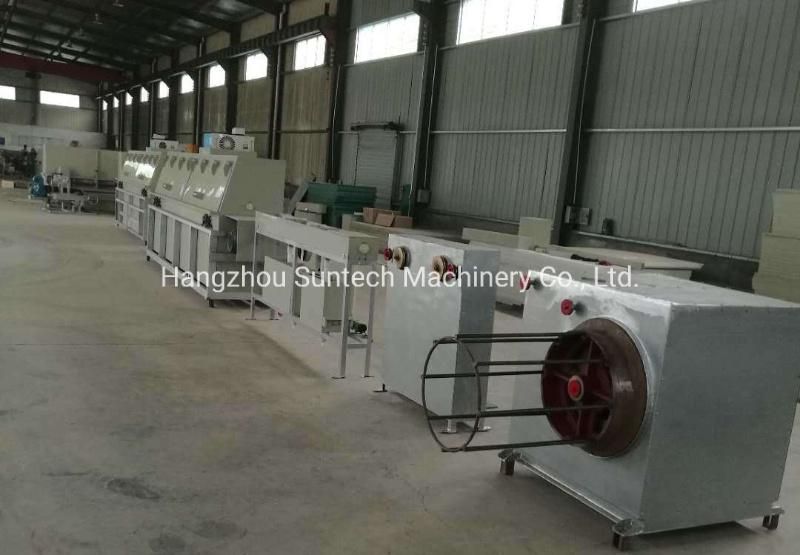

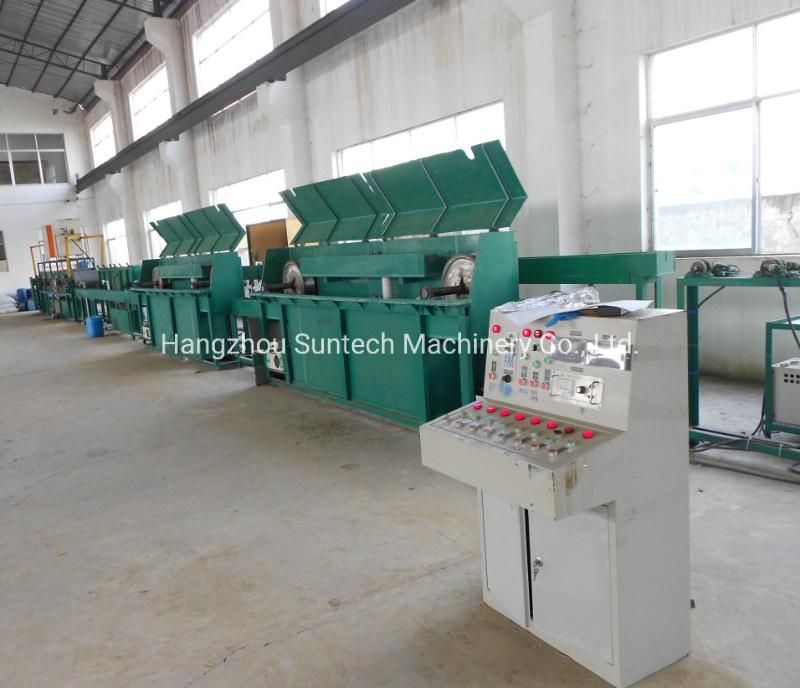

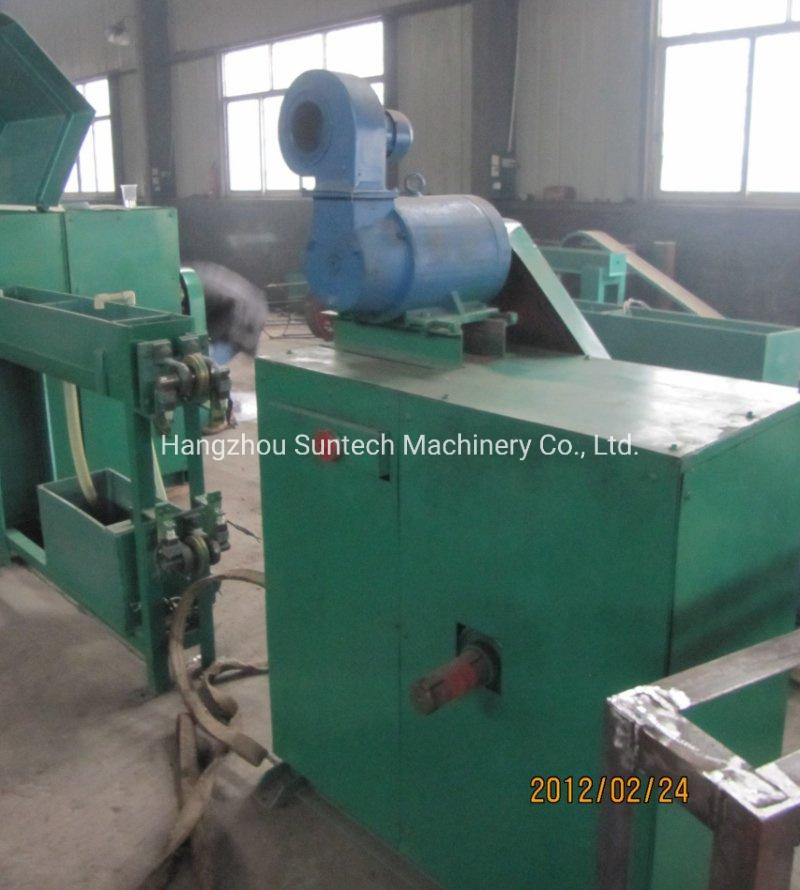

IV. Reference photos:
Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line
Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line
Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line
Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line
Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line
Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line
Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line
Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line
Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line
Single Steel Wire Electro Galvanizing Line Zinc Plating Zinc Coating Line




V. Packaging & Shipping
We can pack it by pallet, or according to the customers' specific requirements.

VI. Our Services
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
1. Correct operating mode
2. Correct maintenance way
3. Remove simple problem
