• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Certificate：CE
• Machine Size：8500*1700*1600mm
• Machines Weight：About 8t
• Delivery Time：About 50days
• Operation Language：English or as Per Client`S Required
• Rollers Material：No.45 Forged Steel with Hard Chrome
• Cutter Material：Cr12 Mould Steel with Quench Treatment
• Cutting Style：Automatic Hydraulic Cut to Length
• Shafts for Rollers：Grand Twice, ID72mm Solid Steel
• Controlling System：Mitsubishi PLC & Converter
• Transport Package：1*40gp Container for One Machine
• Specification：CE SGS BV ISO Soncap
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：20sets,month

ItemSpecificationMaterialTypeColor steel sheetThickness(mm)0. 5 -0. 6Yield strength(mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 1500-2000mmStep distanceAdjustable according to requirement (>=250mm)Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurement EncoderControl mode Mitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power(kw)5.5KW    (Depend on final design)Hydraulic station power 2.2K W   (Depend on final design)Total power(kw)7.7KWUncoiler's loading capacityMax. Capacity: 5000kgs
(can be increased to be 10T)Machine`s sizeAbout 8.5*1.7*1.6m  (Depend on final design)Machine weightAbout 10000kgs

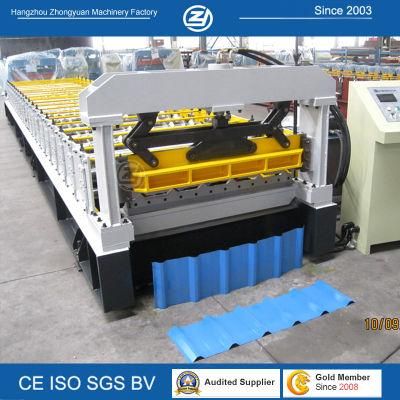

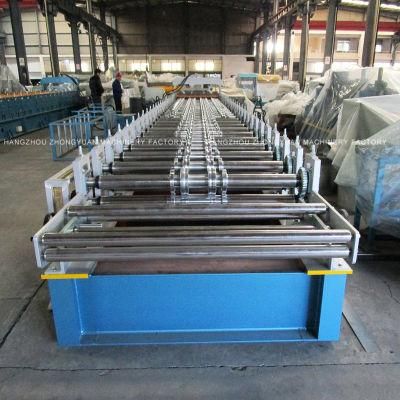

Components of machine:Decoiler1set   Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table 1set   Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table  Why us?1. Customize machines since 2003.2. CE, ISO certificate by SGS. 3. Mitsubishi PLC controller and transducer from Japan4. 12moths warranty, lifetime technical support 5. Capacity: 12-15 sets/month 6. Delivery: in only 5-8 weeks for urgent order 7. Company occupies 6650, in which 5650 for workshops8. Have our own tool center. 12 sets CNC machines.



 About usWe are professional in making roll forming machines since 2003.1.  Capacity: 12-15 sets/month 2.  Delivery: in only 5-8 weeks for urgent order 3.  Have our own tool center. 12 sets CNC machines.4. Zhongyuan is a "All-in-house source"     --from raw material to the final high-precision forming machine. We have our precise tooling center.5.  You can rely on our team!       We have engineers with experience more than 15 years in metal forming industry.  Get Free:Provide profile drawing & design technical support FOR FREE!  FAQ:1) Q: Are you manufacturer or trading company?A: We are manufacturer and trading company . 2) Q: Do you provide installing and training overseas?A: Overseas machine install and worker training services are optional. 3) Q: How is your after sales support? A: We provide technical support on line as well as overseas services by skillful technicians.  4) Q: How does your factory do regarding quality control? A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment. 5) How can I trust you that machines pasted testing running before shipping?A:  1) We record the testing video for your reference. Or,    2) We welcome your visit us and test machine by yourself in our factory. 6) Q: Do you sell only standard machines?A: No. Most machines are made to order. 7) Q: Will you deliver the right goods as ordered? How can I trust you?A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
